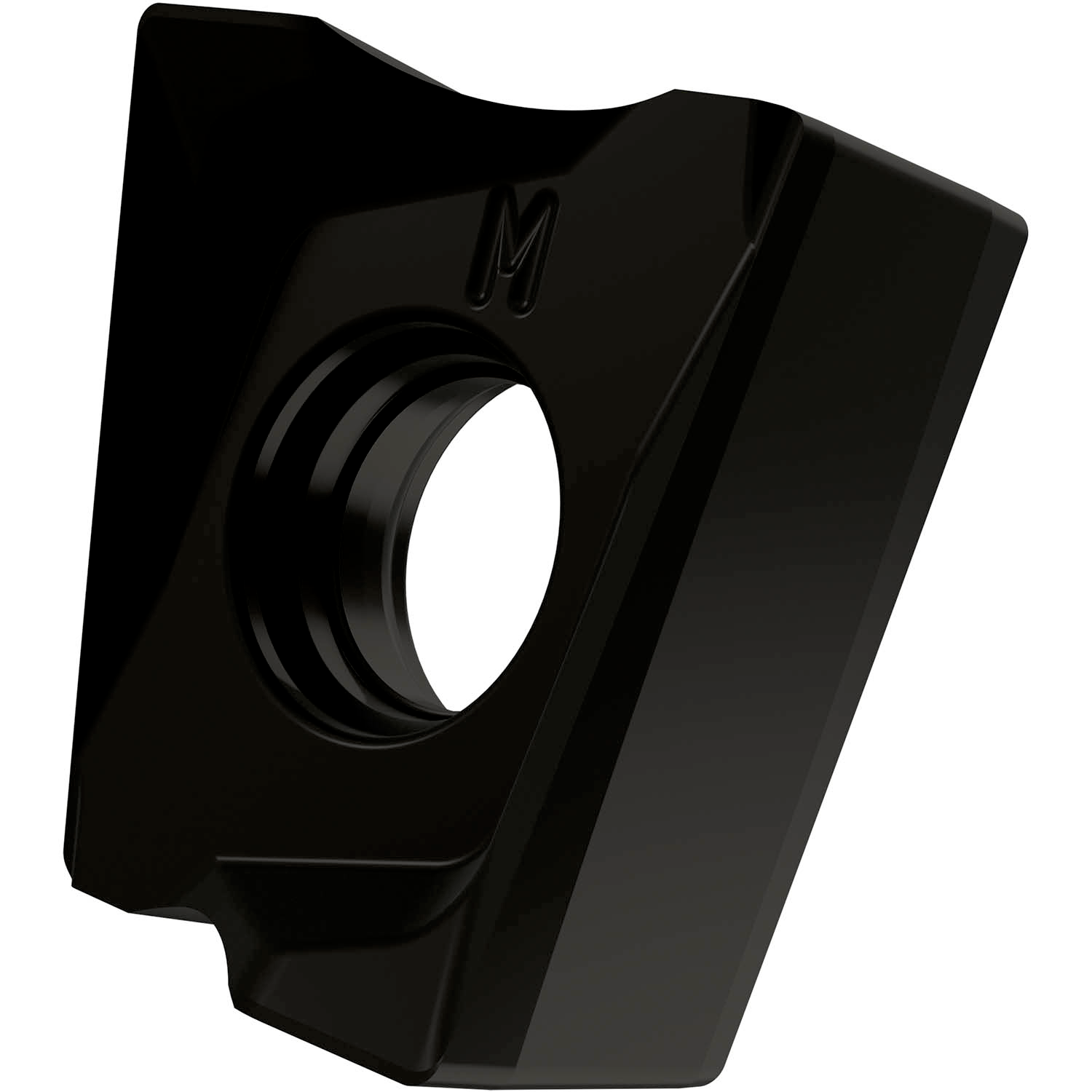

PRAMET LNGX 120508ER-M:M9325 Milling - other and drilling inserts clamped by screw

Description

Double-sided milling insert LNGX 1205, rectangular for a maximum depth of cut of 9.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges, M9325 MT-CVD coated WC-Co carbide within ISO-grade ranges P10 -P30 and K10 -K30 for machining of steel and cast-iron with shoulder mills SLN12

Additional information

Weight	0.0343 kg
barcode
Additional Information	Description: Value EAN number: 3603602890627 Product number (SAP): 80015556 Ordering code ANSI: LNGX 120508ER-M:M9325 Gross weight – grams: 6.117 Insert width – millimeter (W1): 9.5 mm Fixing hole diameter – millimeter (D1): 4.5 mm Cutting edge length – millimeter (L): 12 mm Insert thickness – millimeter (S): 5.96 mm Grade: M9325 Corner radius – millimeter (RE): 0.8 mm Insert Clearance Code and Angle: N 0° Insert size: 12 Insert Thickness: 05 Insert Type: X Chipbreaker manufacturer's designation (CBMD): M Insert shape code (SC): L – rectangular ISO: LNGX120508ER-M:M9325

PRAMET LNGX 120508ER-M:M9325 Milling – other and drilling inserts clamped by screw

Need Technical Advice?

Description

Additional information

Brand

PRAMET
