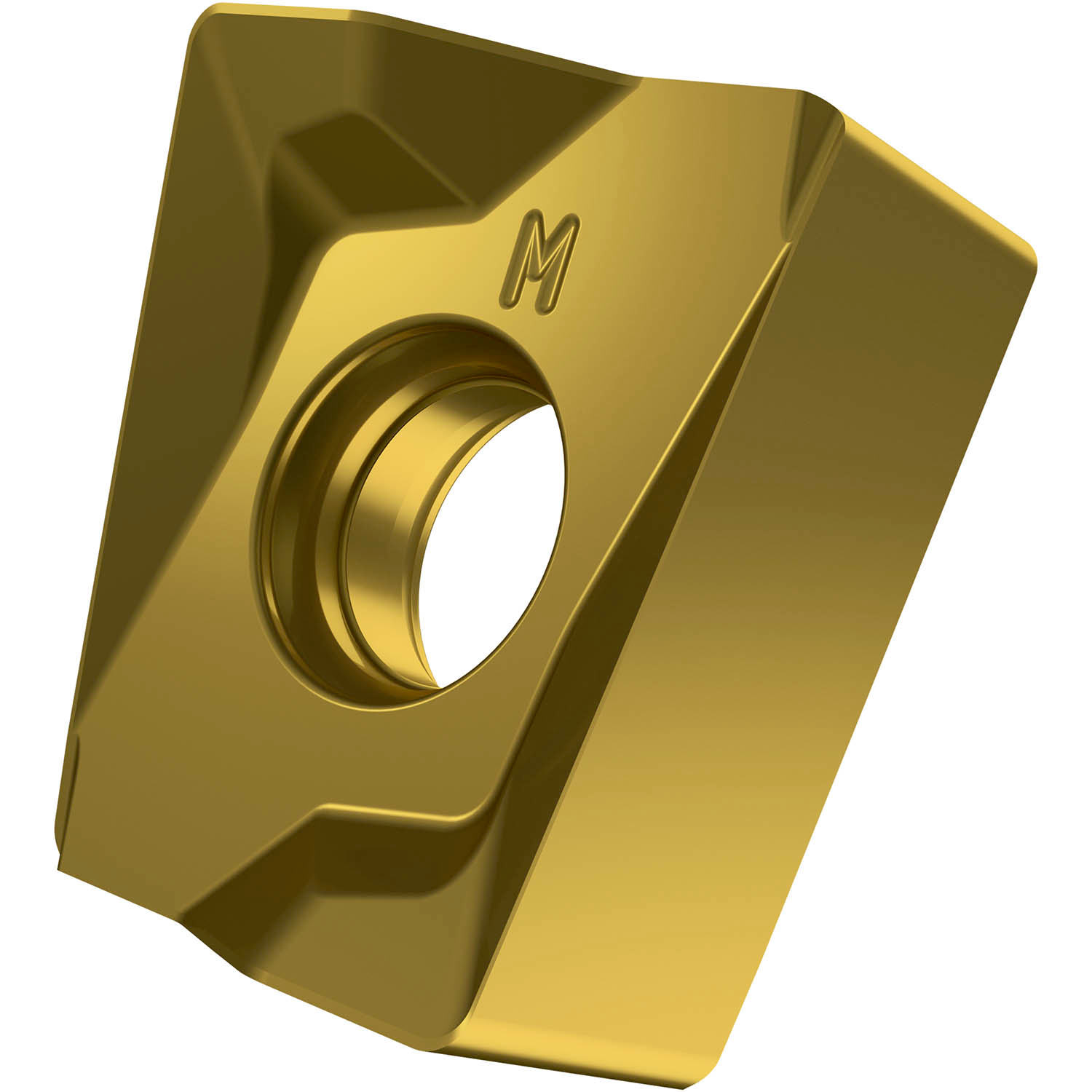

PRAMET LNMU 160708SR-M:M6330 Milling – other and drilling inserts clamped by screw

Description: Value
EAN number: 3603603081307
Product number (SAP): 80026701
Ordering code ANSI: LNMU 160708SR-M:M6330
Gross weight – grams: 15.902
Insert width – millimeter (W1): 13.2 mm
Fixing hole diameter – millimeter (D1): 5.7 mm
Cutting edge length – millimeter (L): 16.6 mm
Insert thickness – millimeter (S): 7.5 mm
Grade: M6330
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert size: 16
Insert Thickness: 07
Insert Type: U
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): L – rectangular
ISO: LNMU160708SR-M:M6330
