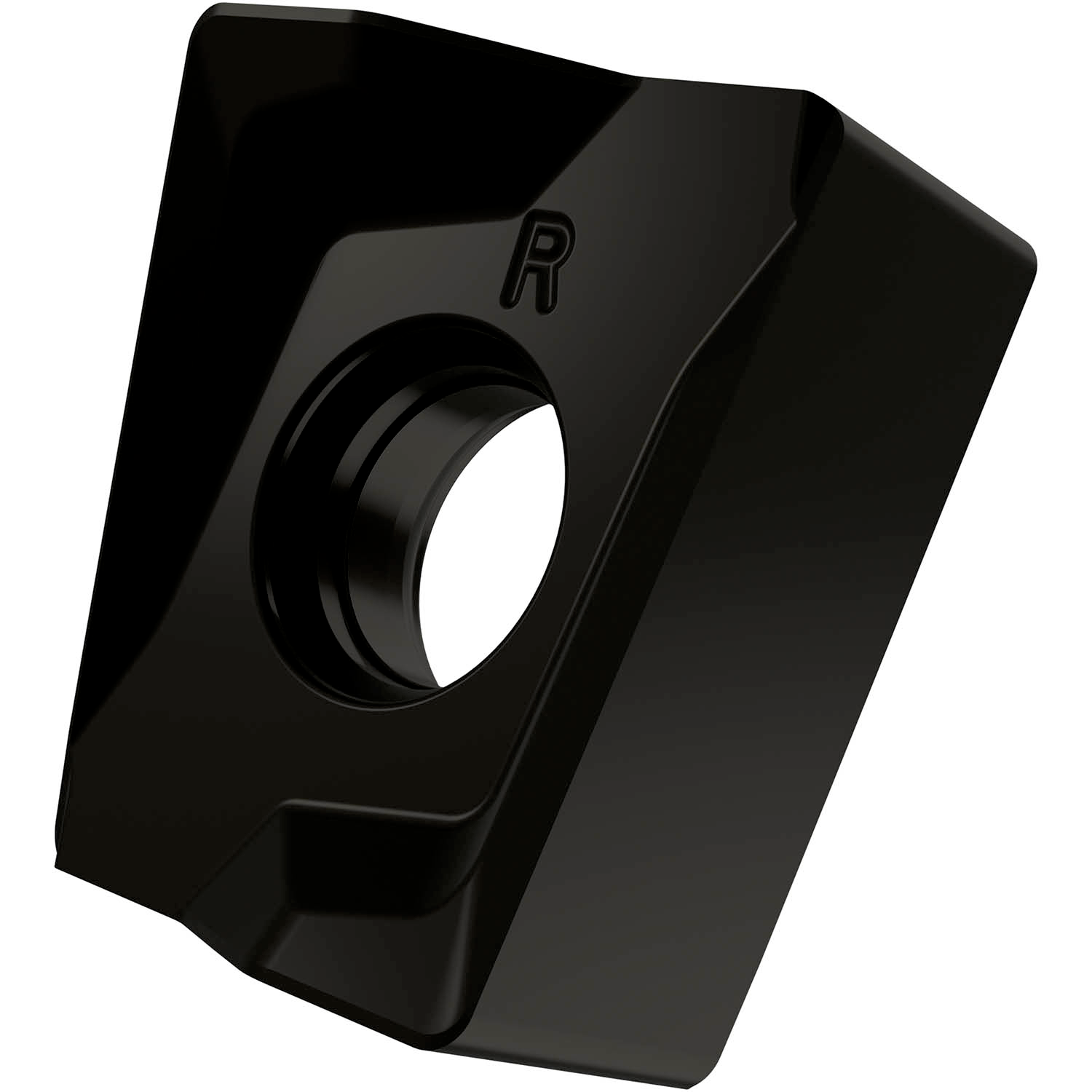

PRAMET LNMU 160708SR-R:M9315 Milling - other and drilling inserts clamped by screw

Description

Double-sided milling insert LNMU 1607 with chip-breakers, rectangular for a maximum depth of cut of 13.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M9315 MT-CVD coated WC-Co carbide within ISO-grade ranges P05 -P25 and K10 -K30 for machining of steel and cast-iron with shoulder mills SLN16

Additional information

Weight	0.0329 kg
barcode
Additional Information	Description: Value EAN number: 3603603081215 Product number (SAP): 80026692 Ordering code ANSI: LNMU 160708SR-R:M9315 Gross weight – grams: 16.889 Insert width – millimeter (W1): 13.2 mm Fixing hole diameter – millimeter (D1): 5.7 mm Cutting edge length – millimeter (L): 16.6 mm Insert thickness – millimeter (S): 7.5 mm Grade: M9315 Corner radius – millimeter (RE): 0.8 mm Insert Clearance Code and Angle: N 0° Insert size: 16 Insert Thickness: 07 Insert Type: U Chipbreaker manufacturer's designation (CBMD): R Insert shape code (SC): L – rectangular ISO: LNMU160708SR-R:M9315

PRAMET LNMU 160708SR-R:M9315 Milling – other and drilling inserts clamped by screw

Need Technical Advice?

Description

Additional information

Brand

PRAMET
