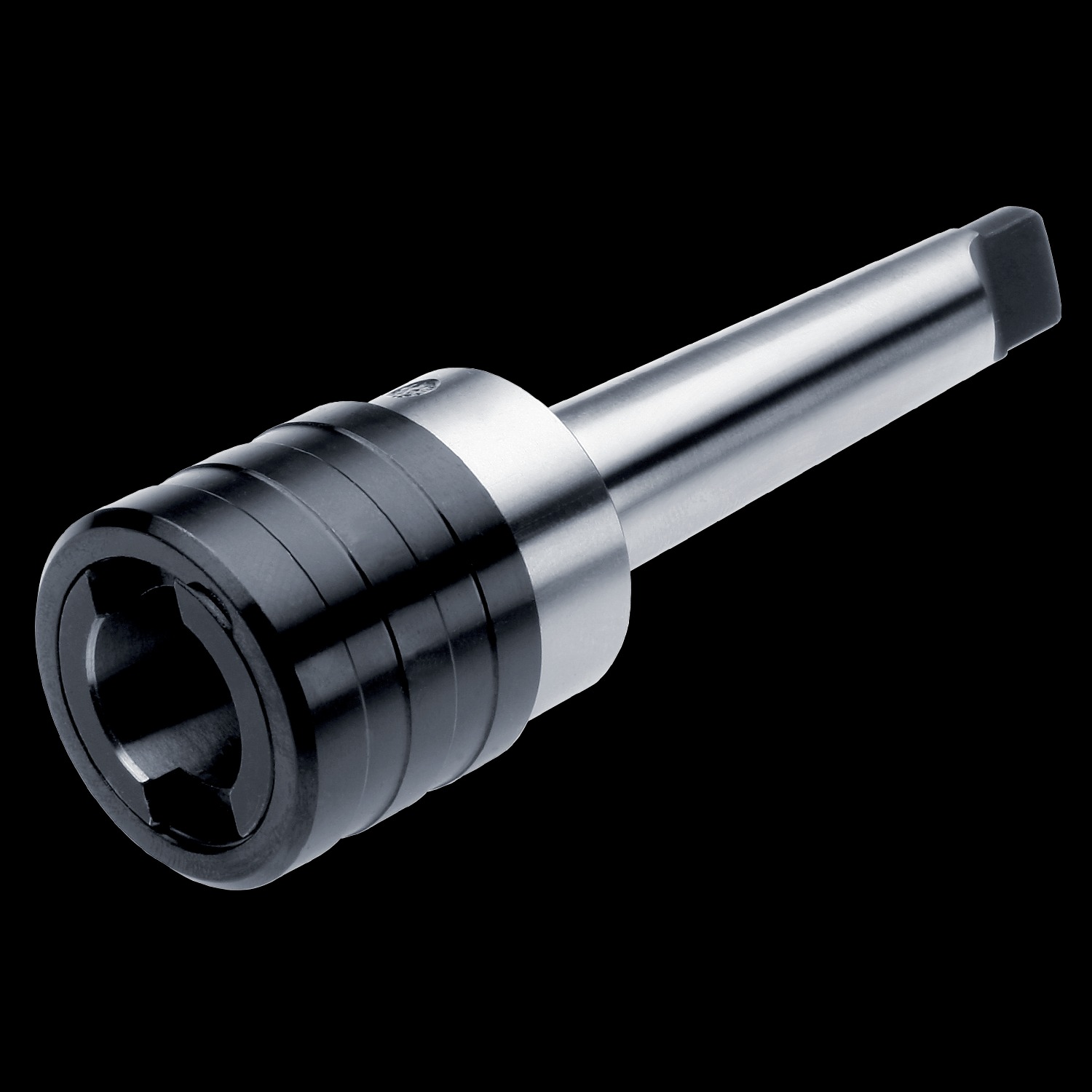

PRAMET MORSE.MT.4-QTCC.M3.M14 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603206038
Product number (SAP): 86029423
Size: 4
ISO: MORSE.MT.4-QTCC.M3.M14
Ordering code ANSI: MORSE.MT.4-QTCC.M3.M14
Net weight – grams: 879
Gross weight – grams: 945.5
Axial Floating Back – millimeters (FLB): 12 mm
Axial Floating Forward – millimeters (FLF): 12 mm
Body diameter – millimeter (BD): 53 mm
Connection diameter workpiece side – millimeter (DCON WS): 31 mm
Connection size Value (CSIZE): 2
Connection text machine side (CTMS): MT4
Connection text range workpiece side (CTWS): M5 – M22
Protruding length – millimeter (LPR): 70 mm
