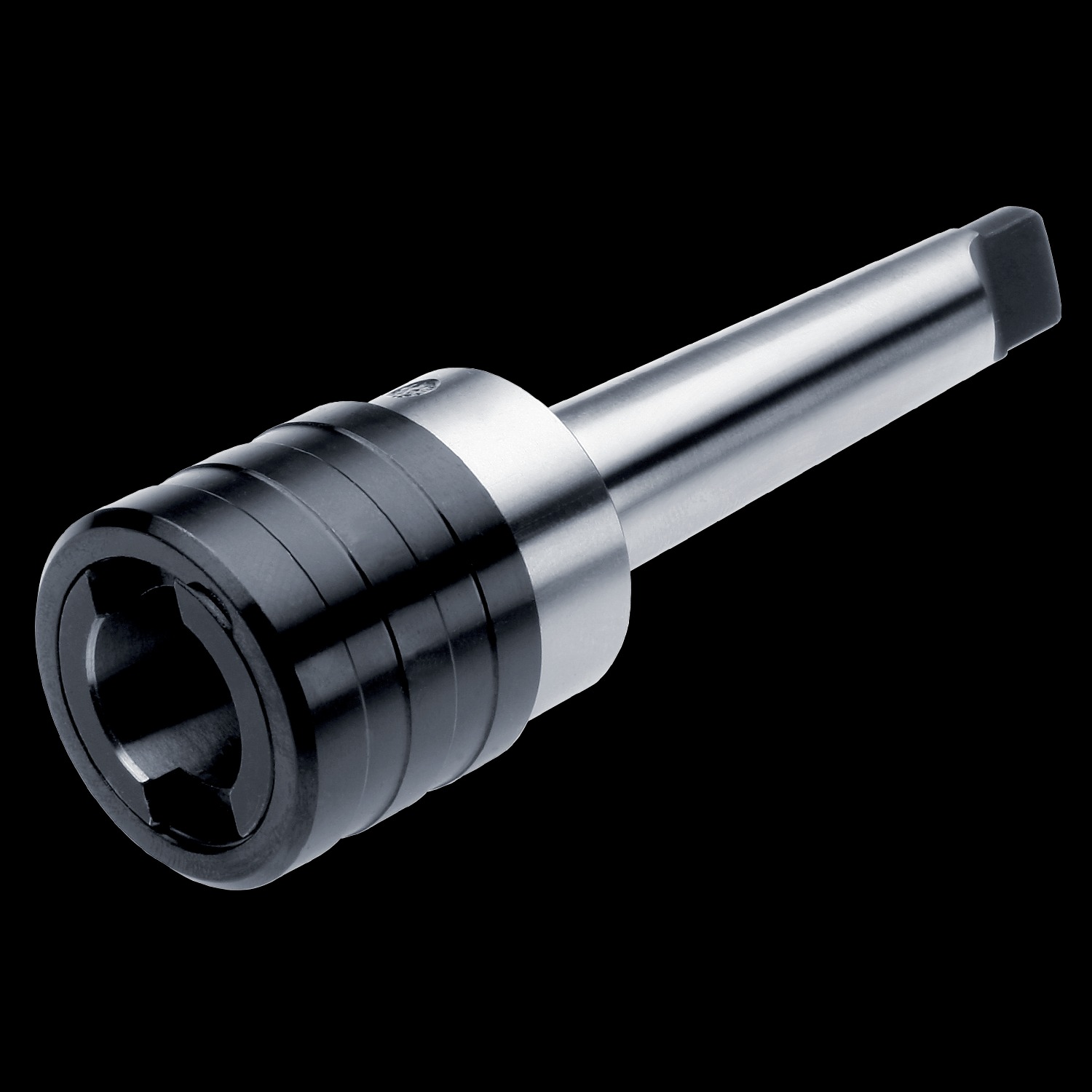

PRAMET MORSE.MT.4-QTCC.M5.M22 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603206045
Product number (SAP): 86029424
Size: 4
ISO: MORSE.MT.4-QTCC.M5.M22
Ordering code ANSI: MORSE.MT.4-QTCC.M5.M22
Net weight – grams: 1183
Gross weight – grams: 1247.3
Axial Floating Back – millimeters (FLB): 18 mm
Axial Floating Forward – millimeters (FLF): 18 mm
Body diameter – millimeter (BD): 78 mm
Connection diameter workpiece side – millimeter (DCON WS): 48 mm
Connection size Value (CSIZE): 3
Connection text machine side (CTMS): MT4
Connection text range workpiece side (CTWS): M14 – M36
Protruding length – millimeter (LPR): 123 mm
