PRAMET MVJNR 2020 K 16-A Turning holders external

Product Code: MVJNR 2020 K 16-A

$202.81$184.37 Ex. GST

Product Code: MVJNR 2020 K 16-A SKU MVJNR 2020 K 16-A Categories , ,

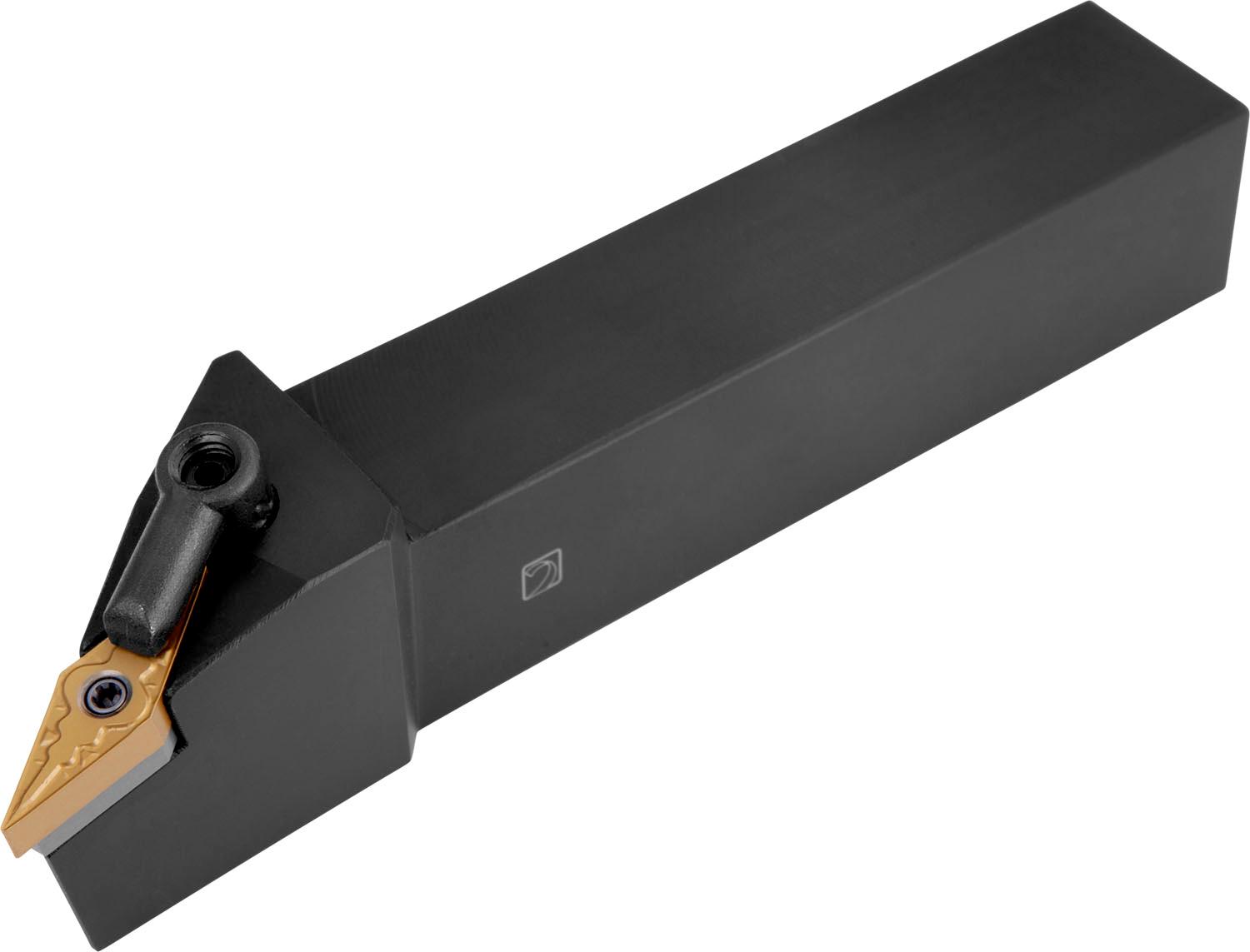

PRAMET MVJNR 2020 K 16-A Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Multi-lock turning tool for holding a 35° rhombus negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VN.. 1604.. ), right hand 93° side cutting with off-set shank, 20mm tool height x 20mm width x 125mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight 0.1969 kg
barcode
Additional Information

Description: Value
EAN number: 3603602921291
Product number (SAP): 84001080
Ordering code ANSI: MVJNR 2020 K 16-A
Gross weight – grams: 396.6
Shank height – millimeter (H): 20 mm
Shank width – millimeter (B): 20 mm
Functional height – millimeter (HF): 20 mm
Functional width – millimeter (WF): 25 mm
Functional length – millimeter (LF): 125 mm
Head length – millimeter (LH): 41 mm
Inclination angle (LAMS): -4.5
Orthogonal rake angle (GAMO): -13.5
Net weight – grams: 396.6
Insert size: 16
ISO: MVJNR2020K16-A

Brand

PRAMET
