PRAMET MVJNR 3225 P 16-A Turning holders external

Product Code: MVJNR 3225 P 16-A

$230.00$209.09 Ex. GST

Product Code: MVJNR 3225 P 16-A SKU MVJNR 3225 P 16-A Categories , ,
PRAMET MVJNR 3225 P 16-A Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

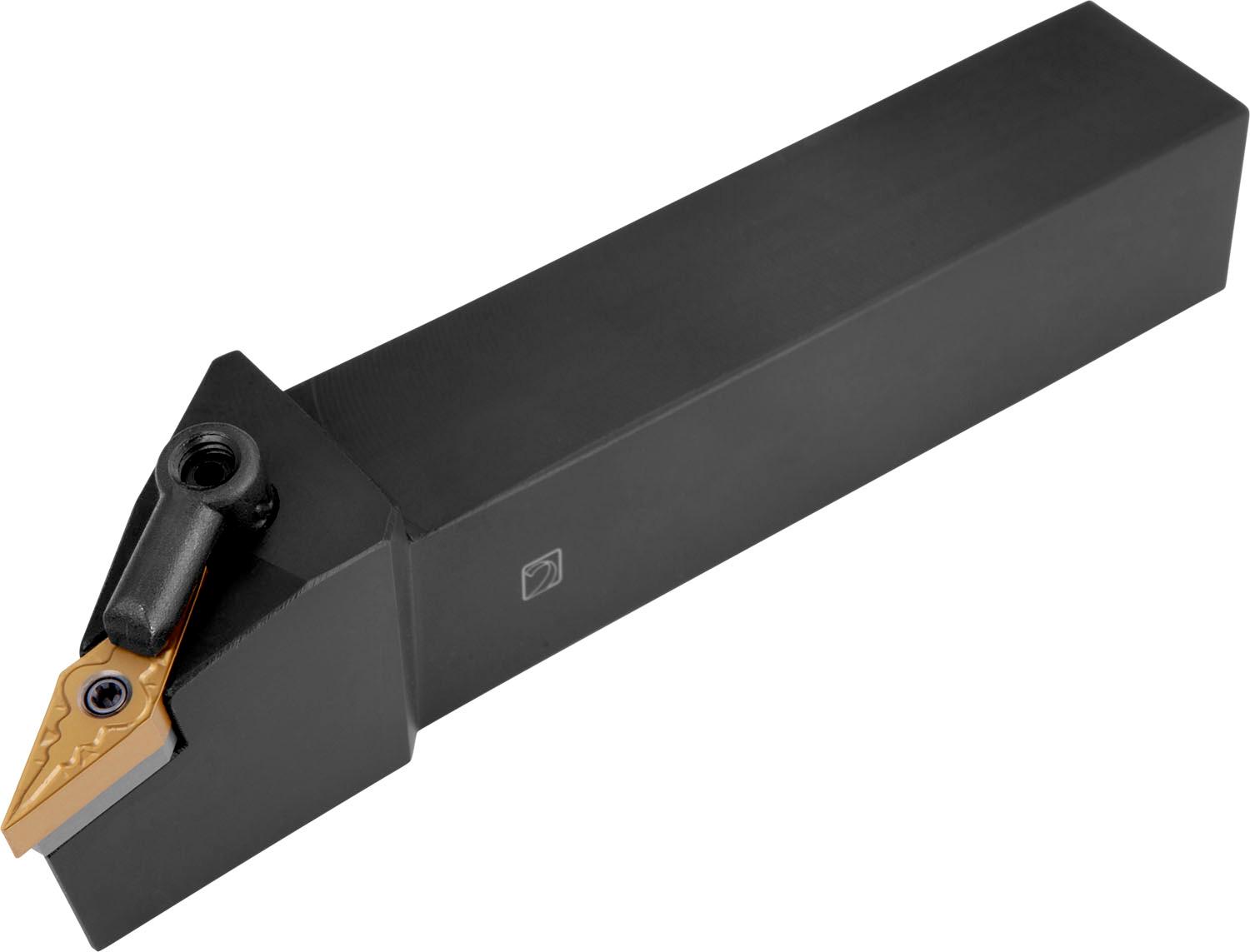

Multi-lock turning tool for holding a 35° rhombus negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VN.. 1604.. ), right hand 93° side cutting with off-set shank, 32mm tool height x 25mm width x 170mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight 0.2233 kg
barcode
Additional Information

Description: Value
EAN number: 3603602921314
Product number (SAP): 84001082
Ordering code ANSI: MVJNR 3225 P 16-A
Gross weight – grams: 997.2
Shank height – millimeter (H): 32 mm
Shank width – millimeter (B): 25 mm
Functional height – millimeter (HF): 32 mm
Functional width – millimeter (WF): 32 mm
Functional length – millimeter (LF): 170 mm
Head length – millimeter (LH): 41 mm
Inclination angle (LAMS): -4.5
Orthogonal rake angle (GAMO): -13.5
Net weight – grams: 980
Insert size: 16
ISO: MVJNR3225P16-A

Brand

PRAMET
