PRAMET MWLNL 4040 S 08 Turning holders external

Description

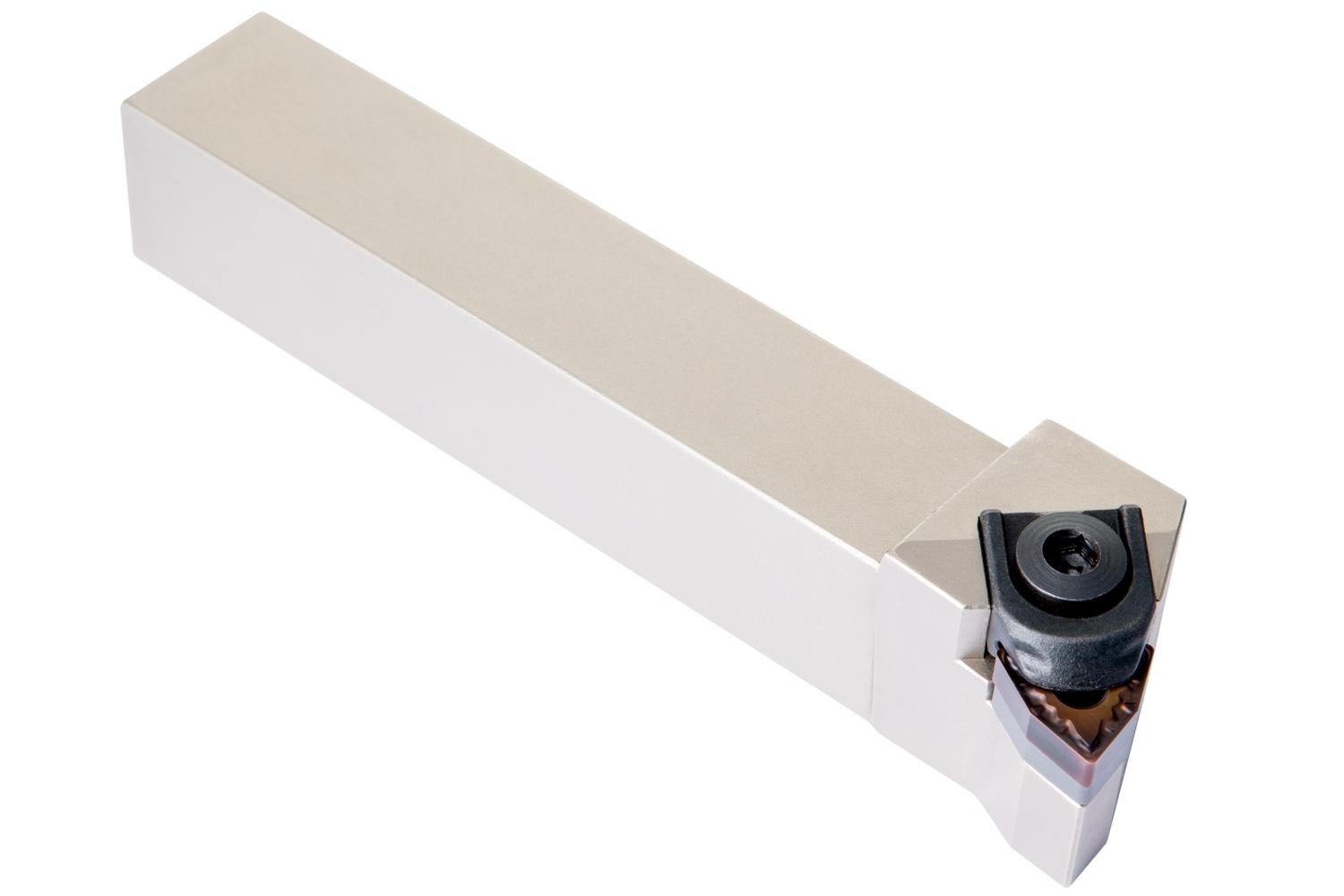

Multi-lock turning tool for holding a 80° trigon negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation WN.. 0804.. ), left hand 95° side and end cutting with off-set shank, 40mm tool height x 40mm width x 250mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight	0.308 kg
barcode
Additional Information	Description: Value EAN number: 3603604040495 Product number (SAP): 86040595 Ordering code ANSI: MWLNL 4040 S 08 Gross weight – grams: 3135.5 Shank height – millimeter (H): 40 mm Shank width – millimeter (B): 40 mm Functional height – millimeter (HF): 40 mm Functional width – millimeter (WF): 50 mm Functional length – millimeter (LF): 250 mm Head length – millimeter (LH): 45 mm Inclination angle (LAMS): -6 Orthogonal rake angle (GAMO): -6 Net weight – grams: 3135.5 Insert size: 08 ISO: MWLNL4040S08

Need Technical Advice?

Description

Additional information

Brand

PRAMET
