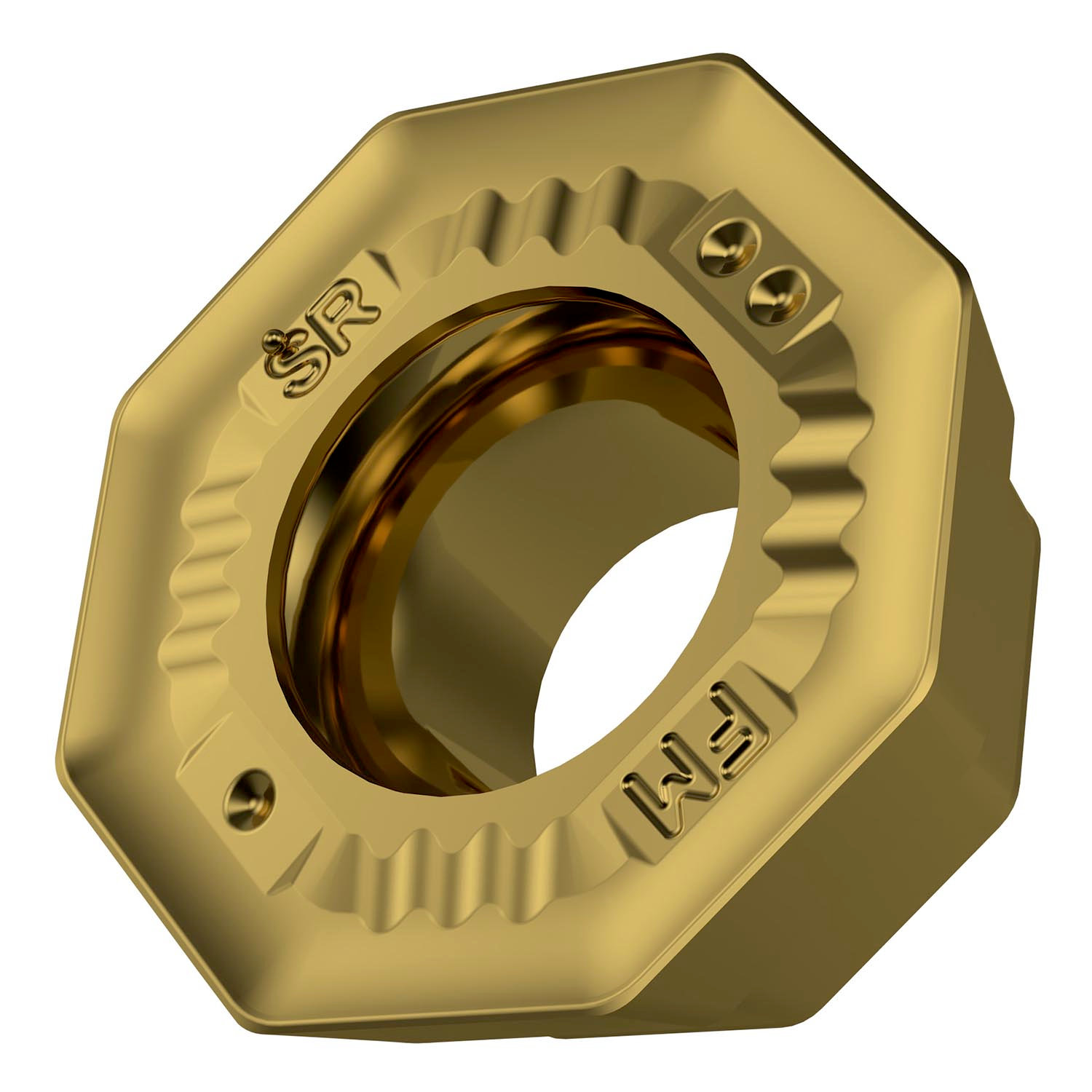

PRAMET ODKT 0505ADSR-FM:M8330 Milling - other and drilling inserts clamped by screw

Description

Single-sided milling insert ODKT 0505 with chip-breakers, octagonal for a maximum depth of cut of 2.7mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and M20 -M35 for machining of steel and stainless-steel with copy face mills SOD05

Additional information

Weight	0.0267 kg
barcode
Additional Information	Description: Value EAN number: 3603603385856 Product number (SAP): 80030112 Ordering code ANSI: ODKT 0505ADSR-FM:M8330 Gross weight – grams: 5.806 Inscribed circle diameter – millimeter (IC): 12.7 mm Fixing hole diameter – millimeter (D1): 5.5 mm Insert thickness – millimeter (S): 5.56 mm Wiper edge length – millimeter (BS): 1 mm Grade: M8330 Corner radius – millimeter (RE): 0.8 mm Insert Clearance Code and Angle: D 15° Insert size: 05 Insert Thickness: 05 Insert Type: T Chipbreaker manufacturer's designation (CBMD): FM Insert shape code (SC): O – octagonal ISO: ODKT0505ADSR-FM:M8330

PRAMET ODKT 0505ADSR-FM:M8330 Milling – other and drilling inserts clamped by screw
