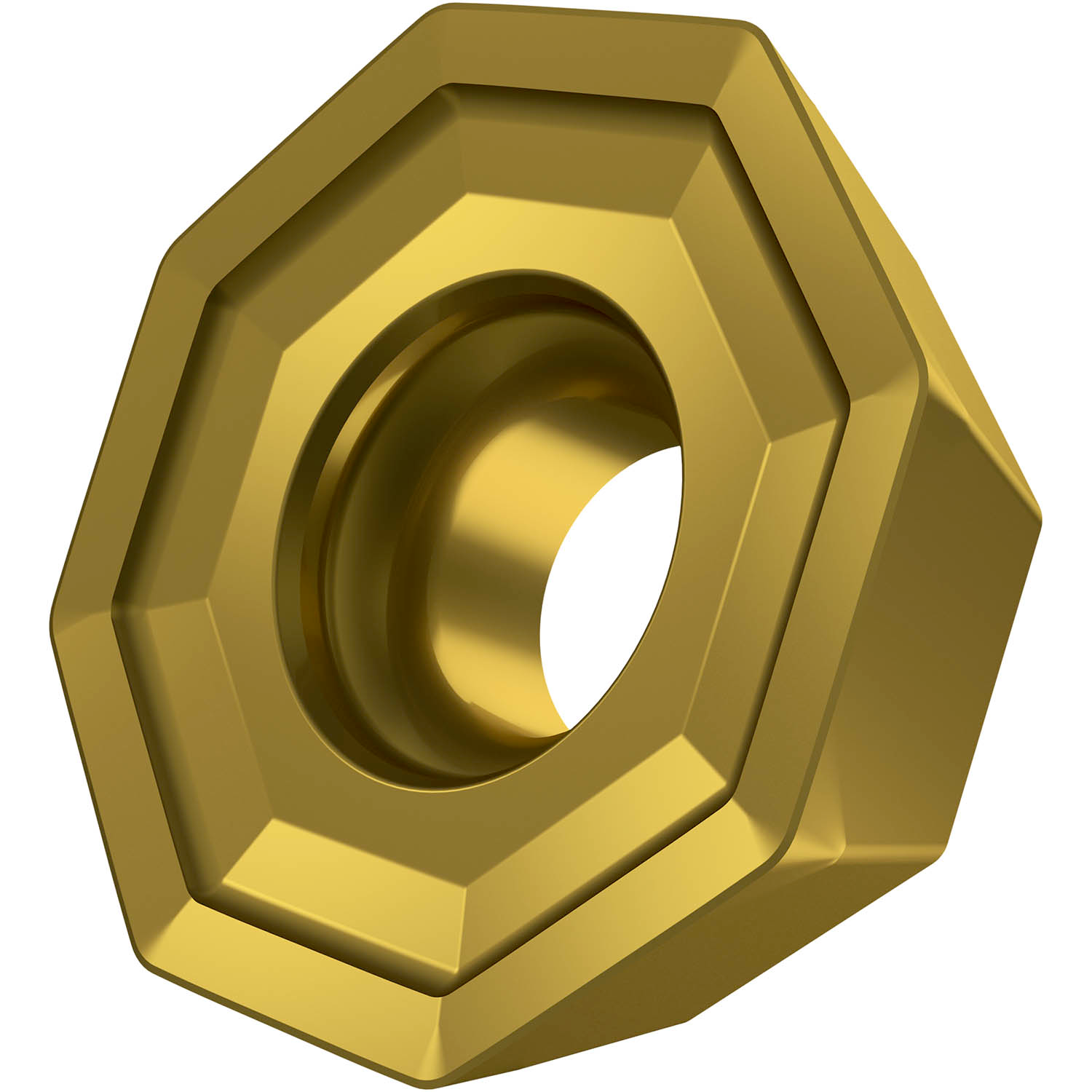

PRAMET ODMT 0504ZZN:M8340 Milling – other and drilling inserts clamped by screw

Product Code: ODMT 0504ZZN:M8340

$25.04$22.76 Ex. GST

Product Code: ODMT 0504ZZN:M8340 SKU ODMT 0504ZZN:M8340 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert ODMT 0504 with chip-breakers, octagonal for a maximum depth of cut of 2.5mm, with an indexing accuracy according to ISO-tolerance class-M, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25 -P50 for machining of steel with face mills SOD05D

Additional information

Weight 0.0243 kg
barcode
Additional Information

Description: Value
EAN number: 3603602993670
Product number (SAP): 80024960
Ordering code ANSI: ODMT 0504ZZN:M8340
Gross weight – grams: 5.692
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8340
Insert Clearance Code and Angle: D 15°
Insert size: 05
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Insert shape code (SC): O – octagonal
ISO: ODMT0504ZZN:M8340

Brand

PRAMET
