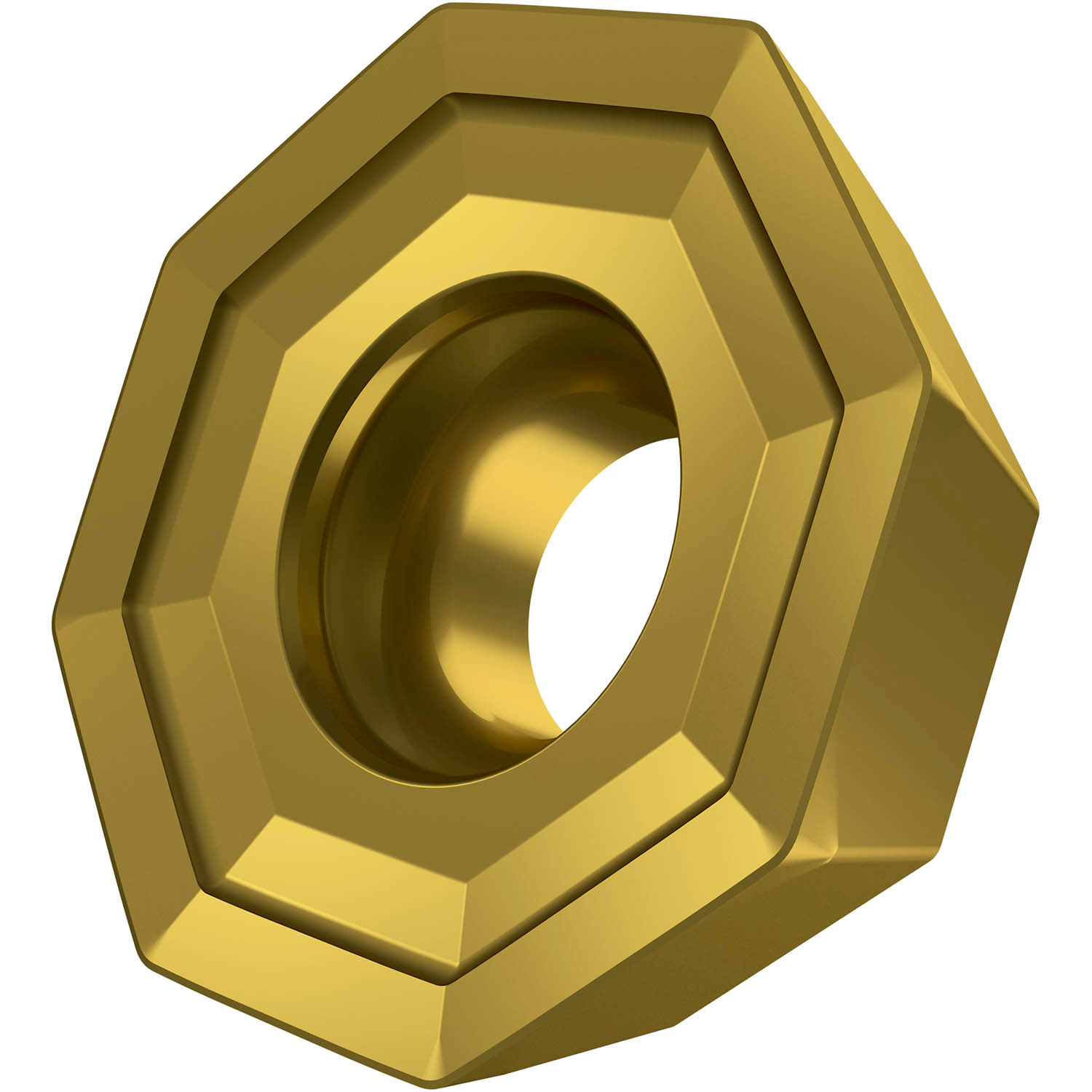

PRAMET ODMT 0605ZZN:M8330 Milling – other and drilling inserts clamped by screw

Product Code: ODMT 0605ZZN:M8330

$31.49$28.63 Ex. GST

Product Code: ODMT 0605ZZN:M8330 SKU ODMT 0605ZZN:M8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert ODMT 0605 with chip-breakers, octagonal for a maximum depth of cut of 3.1mm, with an indexing accuracy according to ISO-tolerance class-M, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and K20 -K40 for machining of steel and cast-iron with face mills SOD06D

Additional information

Weight 0.0306 kg
barcode
Additional Information

Description: Value
EAN number: 3603603385870
Product number (SAP): 80030114
Ordering code ANSI: ODMT 0605ZZN:M8330
Gross weight – grams: 10.352
Inscribed circle diameter – millimeter (IC): 15.875 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Insert thickness – millimeter (S): 5.56 mm
Grade: M8330
Insert Clearance Code and Angle: D 15°
Insert size: 06
Insert Thickness: 05
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Insert shape code (SC): O – octagonal
ISO: ODMT0605ZZN:M8330

Brand

PRAMET
