PRAMET OEHT 0604AEER-MF:M8330 Milling – other and drilling inserts clamped by screw

Product Code: OEHT 0604AEER-MF:M8330

$35.35$32.14 Ex. GST

Product Code: OEHT 0604AEER-MF:M8330 SKU OEHT 0604AEER-MF:M8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

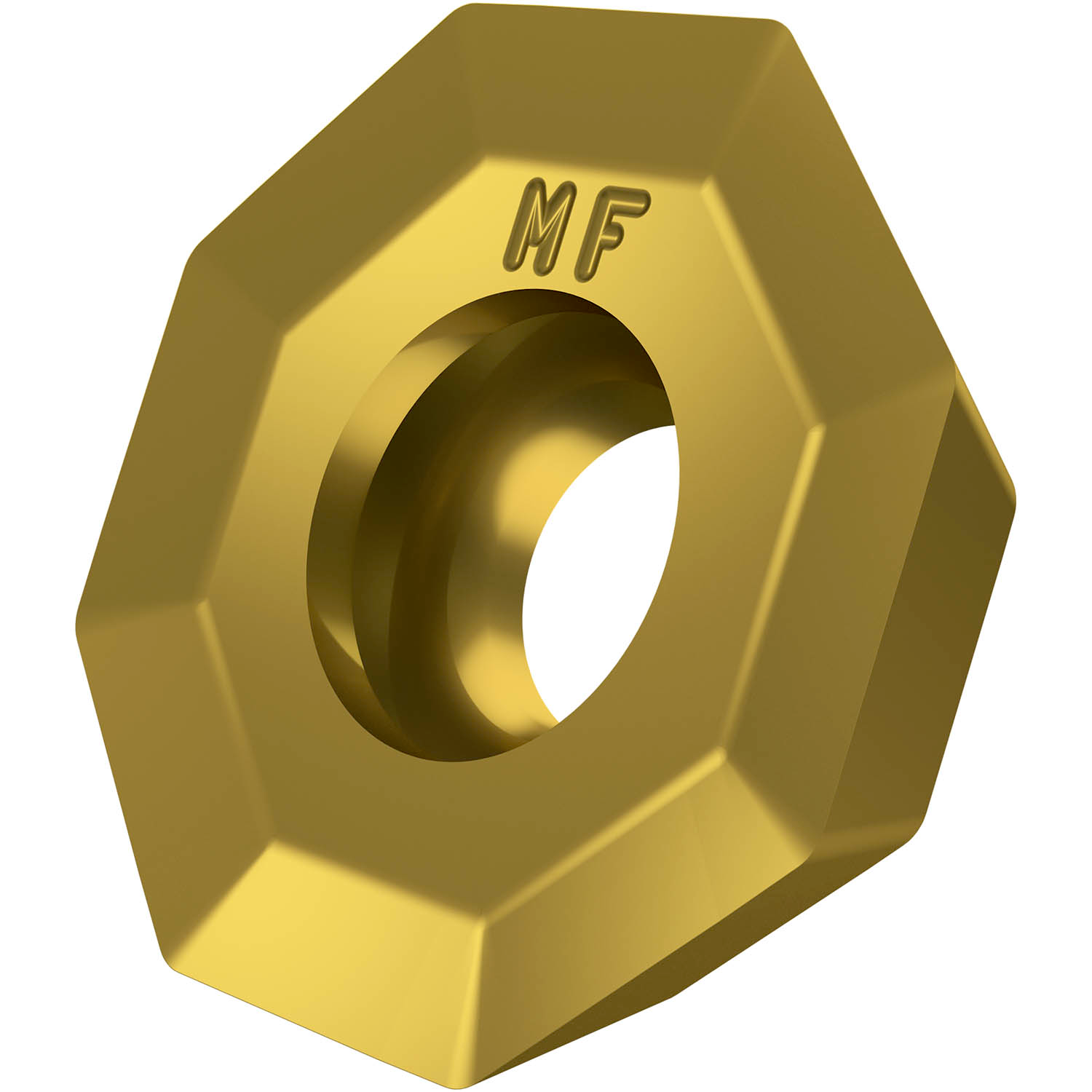

Single-sided milling insert OEHT 0604 with chip-breakers, octagonal for a maximum depth of cut of 3.3mm, with an indexing accuracy according to ISO-tolerance class-H and MF geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range M20 -M35 for machining of stainless-steel with face mills SOE06Z

Additional information

Weight 0.0343 kg
barcode
Additional Information

Description: Value
EAN number: 3603603385887
Product number (SAP): 80030115
Ordering code ANSI: OEHT 0604AEER-MF:M8330
Gross weight – grams: 8.696
Inscribed circle diameter – millimeter (IC): 16.05 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8330
Insert Clearance Code and Angle: E 20°
Insert size: 06
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): MF
Insert shape code (SC): O – octagonal
ISO: OEHT0604AEER-MF:M8330

Brand

PRAMET
