PRAMET OEHT 0604AEER-MM:M9340 Milling – other and drilling inserts clamped by screw

Product Code: OEHT 0604AEER-MM:M9340

$35.35$32.14 Ex. GST

Product Code: OEHT 0604AEER-MM:M9340 SKU OEHT 0604AEER-MM:M9340 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

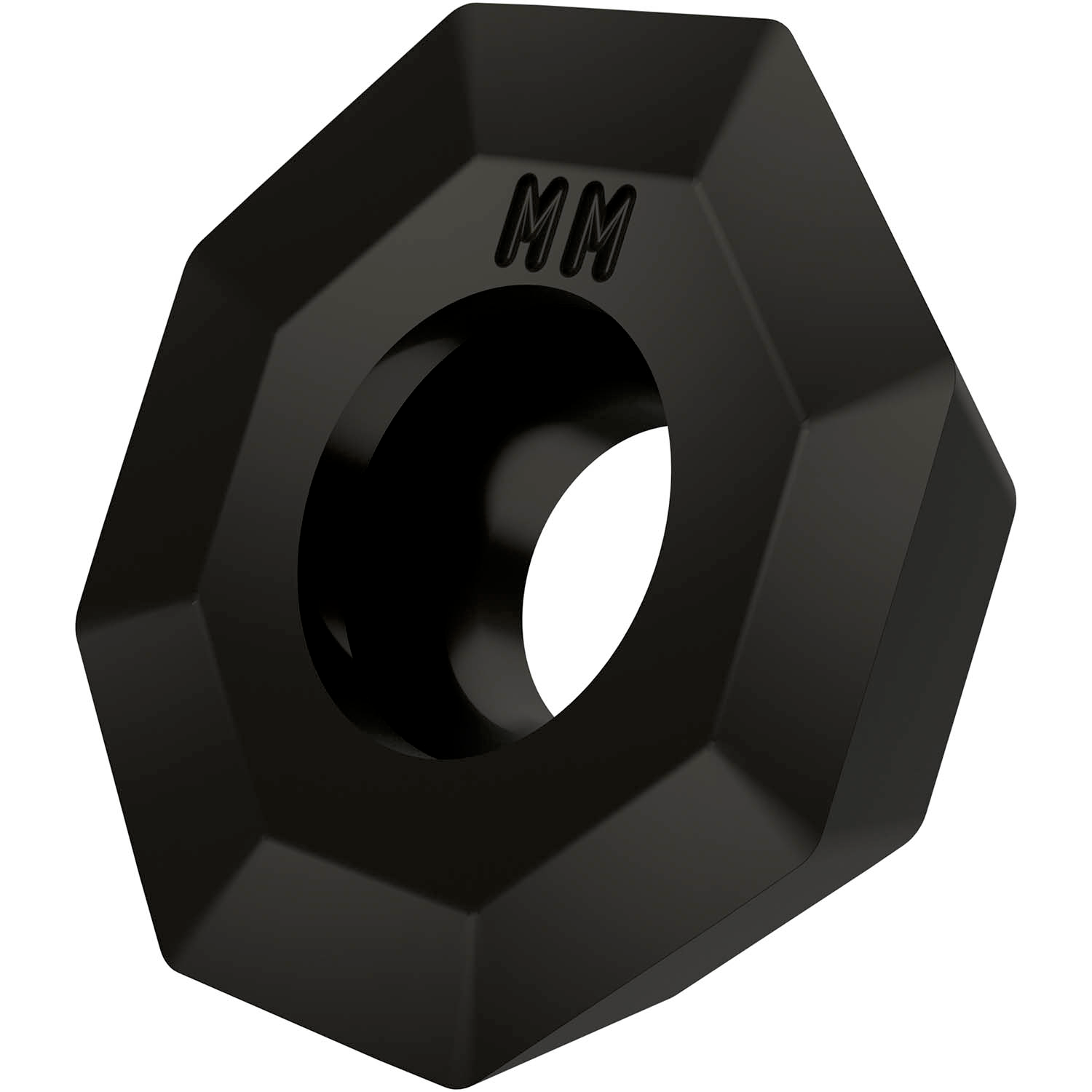

Single-sided milling insert OEHT 0604 with chip-breakers, octagonal for a maximum depth of cut of 3.3mm, with an indexing accuracy according to ISO-tolerance class-H and MM geometry with rounded cutting edges, M9340 MT-CVD coated WC-Co carbide within ISO-grade ranges M30 -M40 and S15 -S20 for machining of stainless-steel and superalloy with face mills SOE06Z

Additional information

Weight 0.0343 kg
barcode
Additional Information

Description: Value
EAN number: 3603603117211
Product number (SAP): 80027340
Ordering code ANSI: OEHT 0604AEER-MM:M9340
Gross weight – grams: 8.867
Inscribed circle diameter – millimeter (IC): 16.05 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M9340
Insert Clearance Code and Angle: E 20°
Insert size: 06
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): MM
Insert shape code (SC): O – octagonal
ISO: OEHT0604AEER-MM:M9340

Brand

PRAMET
