PRAMET OEHT 0604AEFR-FA:HF7 Milling inserts – geometry FA

Product Code: OEHT 0604AEFR-FA:HF7

$37.84$34.40 Ex. GST

Product Code: OEHT 0604AEFR-FA:HF7 SKU OEHT 0604AEFR-FA:HF7 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

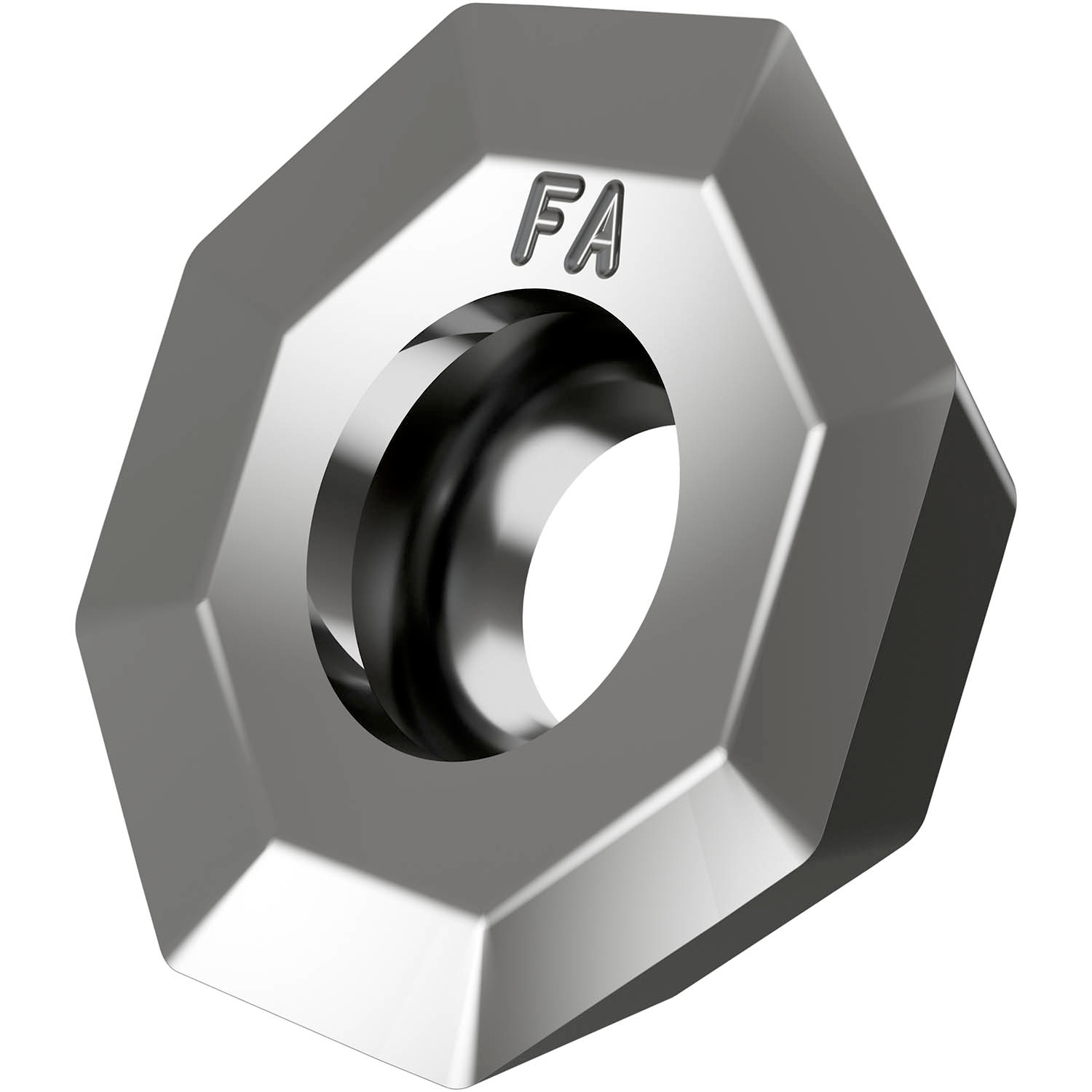

Single-sided milling insert OEHT 0604 with chip-breakers, octagonal for a maximum depth of cut of 3.3mm, with an indexing accuracy according to ISO-tolerance class-H and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10 -N25 for machining of non-ferrous metal with face mills SOE06Z

Additional information

Weight 0.0367 kg
barcode
Additional Information

Description: Value
EAN number: 3603603078628
Product number (SAP): 80026542
Ordering code ANSI: OEHT 0604AEFR-FA:HF7
Gross weight – grams: 10.04
Inscribed circle diameter – millimeter (IC): 16.05 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: HF7
Insert Clearance Code and Angle: E 20°
Insert size: 06
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): FA
Insert shape code (SC): O – octagonal
ISO: OEHT0604AEFR-FA:HF7

Brand

PRAMET
