PRAMET OEHT 0604AEFR-FA:M0315 Milling inserts – geometry FA

Product Code: OEHT 0604AEFR-FA:M0315

$50.19$45.63 Ex. GST

Product Code: OEHT 0604AEFR-FA:M0315 SKU OEHT 0604AEFR-FA:M0315 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

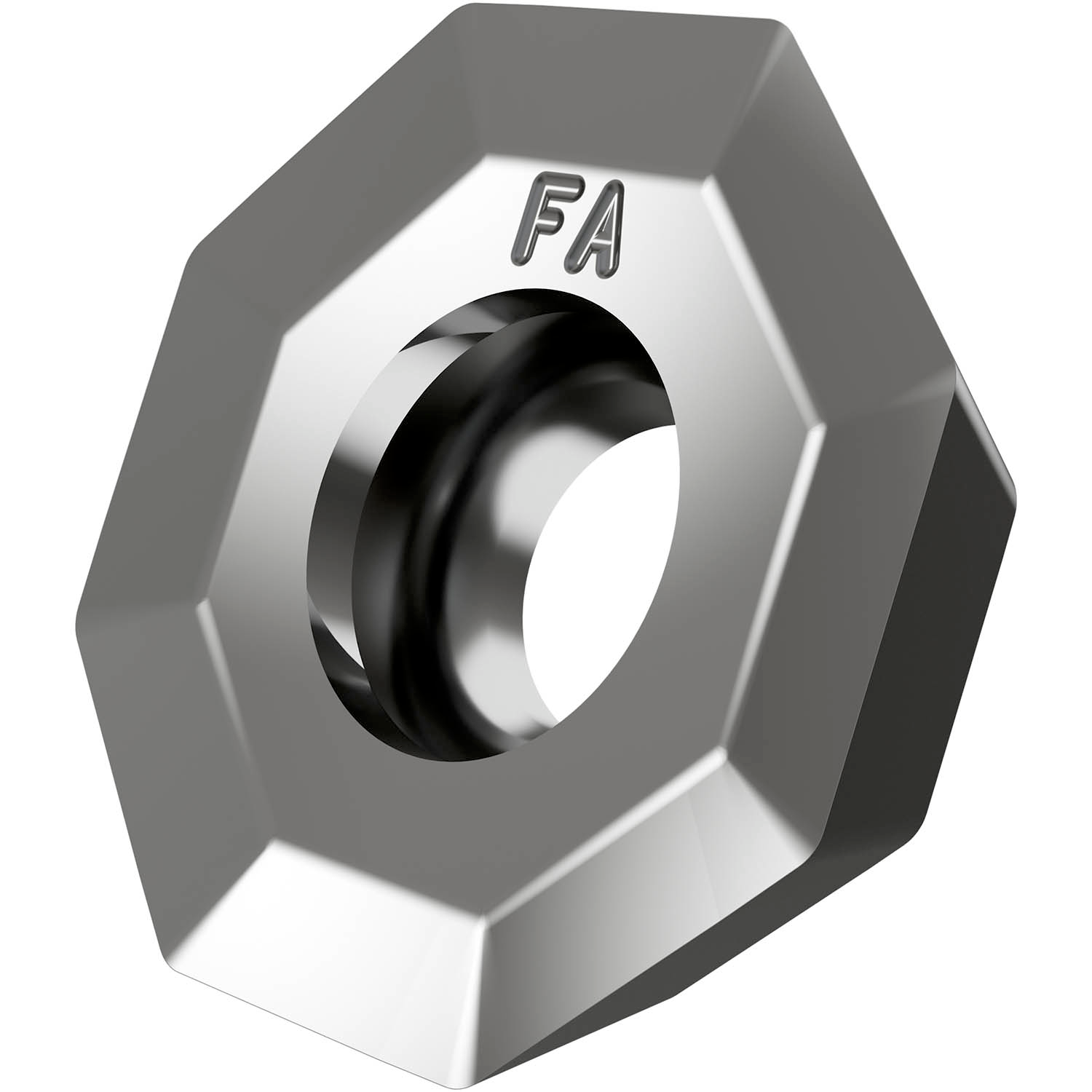

Single-sided milling insert OEHT 0604 with chip-breakers, octagonal for a maximum depth of cut of 3.3mm, with an indexing accuracy according to ISO-tolerance class-H and FA geometry with sharp cutting edges, M0315 PVD coated fine grained WC-Co carbide within ISO-grade range N05 -N25 for machining of non-ferrous metal with face mills SOE06Z

Additional information

Weight 0.0487 kg
barcode
Additional Information

Description: Value
EAN number: 3603603078635
Product number (SAP): 80026543
Ordering code ANSI: OEHT 0604AEFR-FA:M0315
Gross weight – grams: 8.897
Inscribed circle diameter – millimeter (IC): 16.05 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M0315
Insert Clearance Code and Angle: E 20°
Insert size: 06
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): FA
Insert shape code (SC): O – octagonal
ISO: OEHT0604AEFR-FA:M0315

Brand

PRAMET
