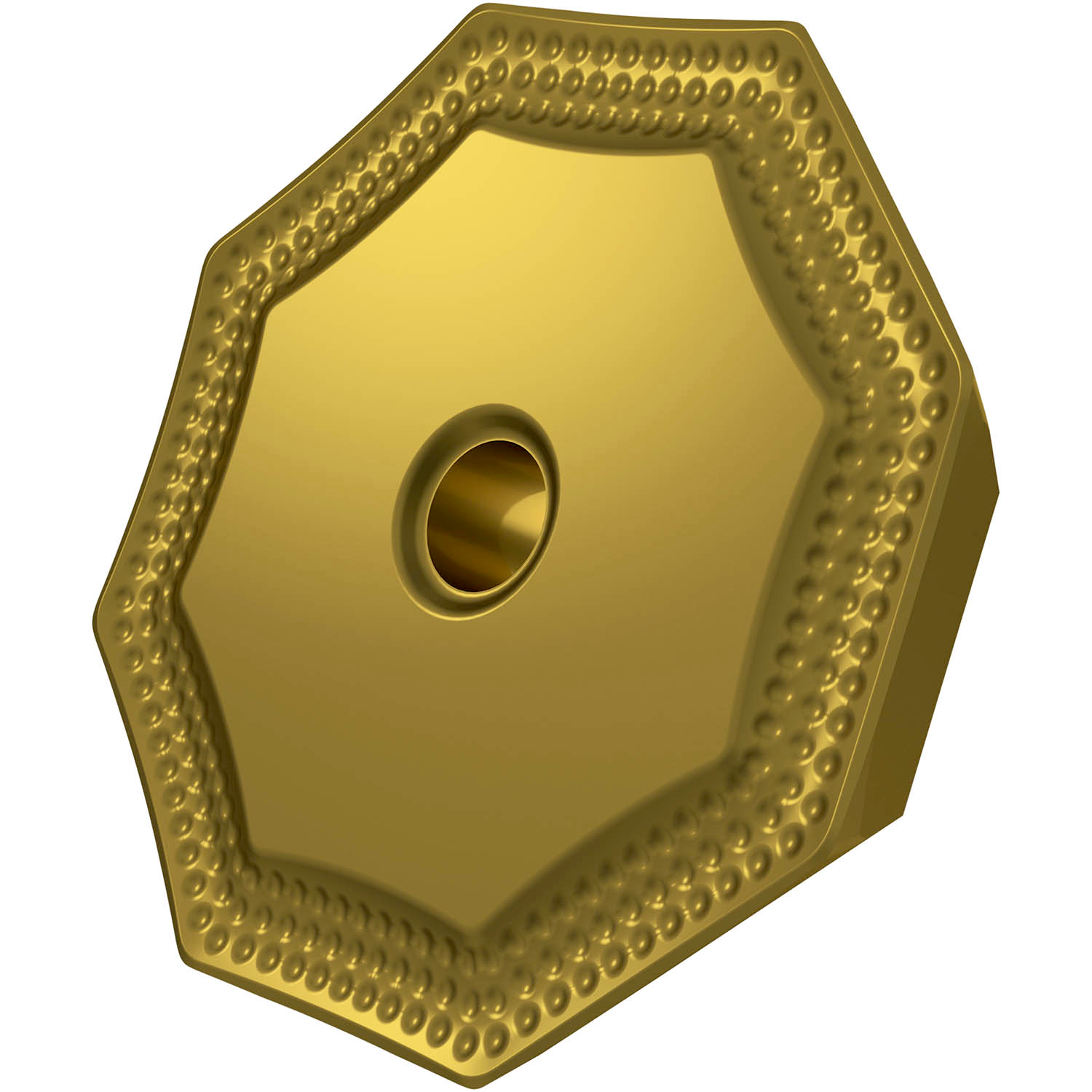

PRAMET OFKR 0704SN-M:M8340 Milling inserts clamped by wedge

Product Code: OFKR 0704SN-M:M8340

$36.83$33.48 Ex. GST

Product Code: OFKR 0704SN-M:M8340 SKU OFKR 0704SN-M:M8340 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert OFKR 0704 with chip-breakers, octagonal for a maximum depth of cut of 12.0mm, with an indexing accuracy according to ISO-tolerance class-K and M geometry, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25 -P50 and M20 -M40 for machining of steel and stainless-steel

Additional information

Weight 0.0358 kg
barcode
Additional Information

Description: Value
EAN number: 3603602993694
Product number (SAP): 80024962
Ordering code ANSI: OFKR 0704SN-M:M8340
Gross weight – grams: 13.398
Inscribed circle diameter – millimeter (IC): 17.845 mm
Fixing hole diameter – millimeter (D1): 2.65 mm
Insert thickness – millimeter (S): 4.56 mm
Grade: M8340
Insert Clearance Code and Angle: F 25°
Insert size: 07
Insert Thickness: 04
Insert Type: R
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): O – octagonal
ISO: OFKR0704SN-M:M8340

Brand

PRAMET
