PRAMET ONMX 060508SR-F:M8330 Milling – other and drilling inserts clamped by screw

Product Code: ONMX 060508SR-F:M8330

$44.87$40.79 Ex. GST

Product Code: ONMX 060508SR-F:M8330 SKU ONMX 060508SR-F:M8330 Categories ,
PRAMET ONMX 060508SR-F:M8330 Milling - other and drilling inserts clamped by screw

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

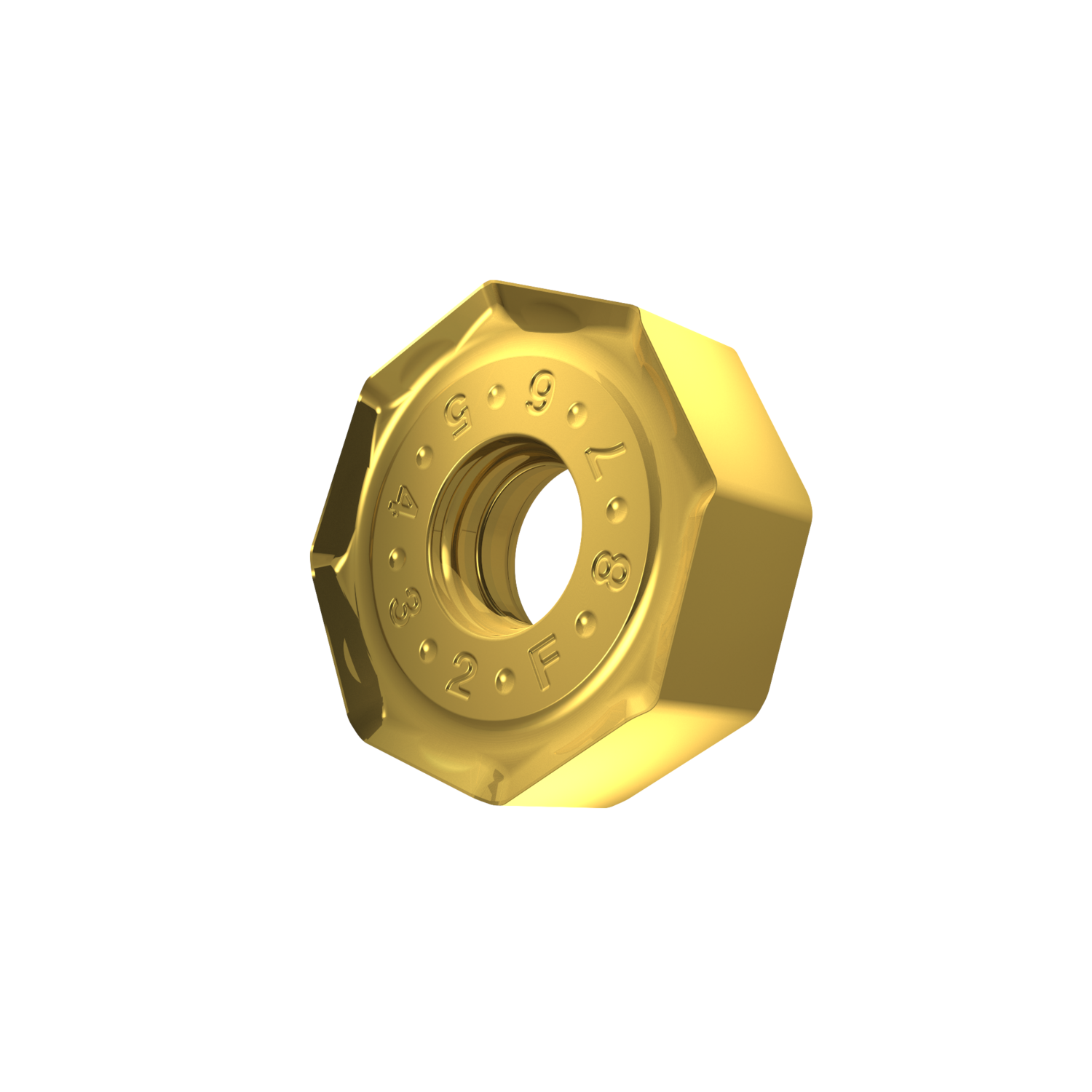

Double-sided milling insert ONMX 0605, octagonal for a maximum depth of cut of 4mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and F geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and M20 -M35 for machining of steel and stainless-steel with face mills SON06C

Additional information

Weight 0.0147 kg
barcode

3603604110372
Additional Information

Description: Value
EAN number: 3603604110372
Product number (SAP): 80035591
Ordering code ANSI: ONMX 060508SR-F:M8330
Gross weight – grams: 14.658
Inscribed circle diameter – millimeter (IC): 17 mm
Fixing hole diameter – millimeter (D1): 5.7 mm
Insert thickness – millimeter (S): 5.56 mm
Grade: M8330
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): F
Insert shape code (SC): O – octagonal
ISO: ONMX060508SR-F:M8330
