PRAMET ONMX 060508SR-M:8215 Milling – other and drilling inserts clamped by screw

Product Code: ONMX 060508SR-M:8215

$44.19$40.17 Ex. GST

Product Code: ONMX 060508SR-M:8215 SKU ONMX 060508SR-M:8215 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

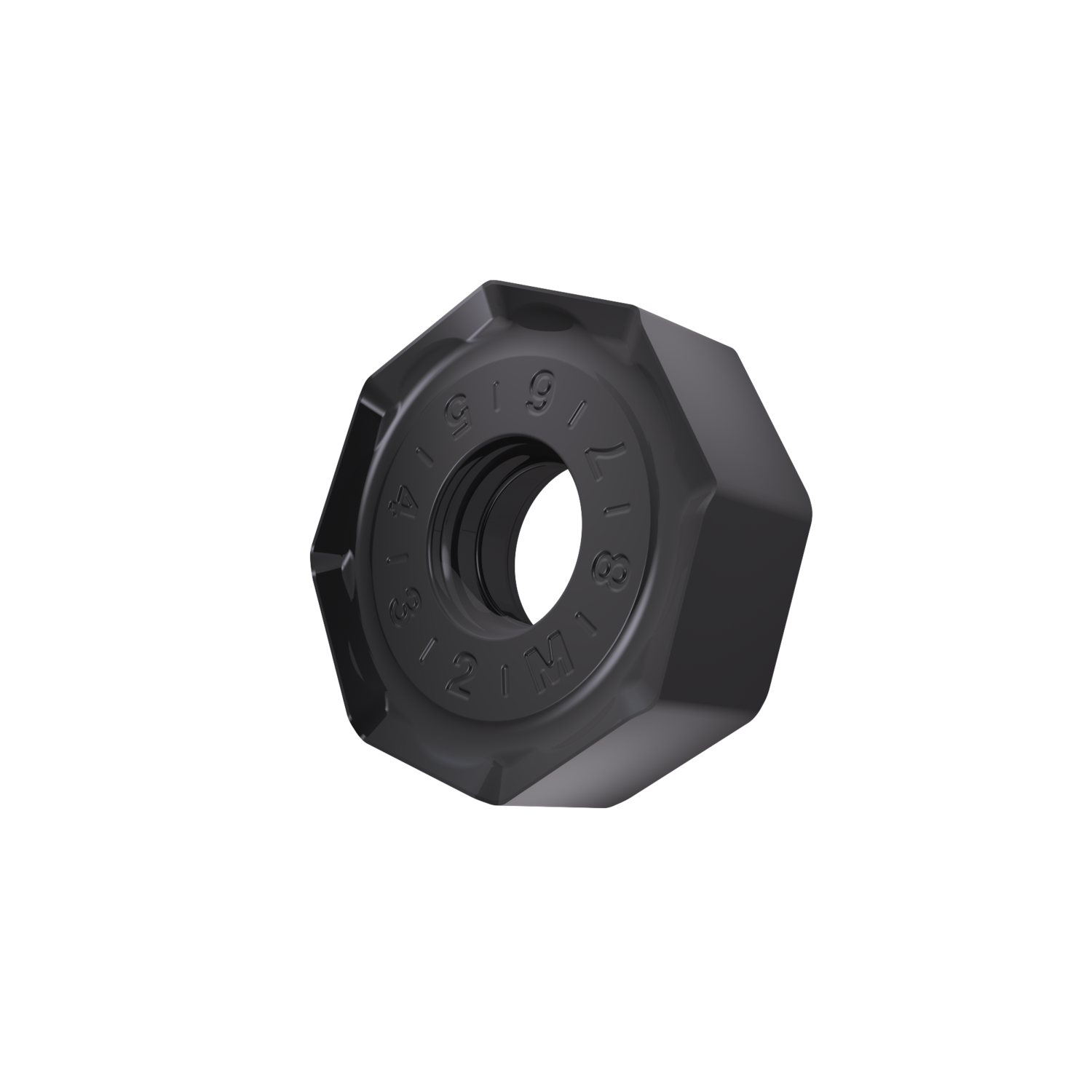

Double-sided milling insert ONMX 0605, octagonal for a maximum depth of cut of 4mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade ranges P10 -P20 and H10 -H15 for machining of steel and hardened material with face mills SON06C

Additional information

Weight 0.0157 kg
barcode

3603604110402

Additional Information

Description: Value
EAN number: 3603604110402
Product number (SAP): 80035594
Ordering code ANSI: ONMX 060508SR-M:8215
Gross weight – grams: 15.731
Inscribed circle diameter – millimeter (IC): 17 mm
Fixing hole diameter – millimeter (D1): 5.7 mm
Insert thickness – millimeter (S): 5.56 mm
Grade: 8215
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): O – octagonal
ISO: ONMX060508SR-M:8215
