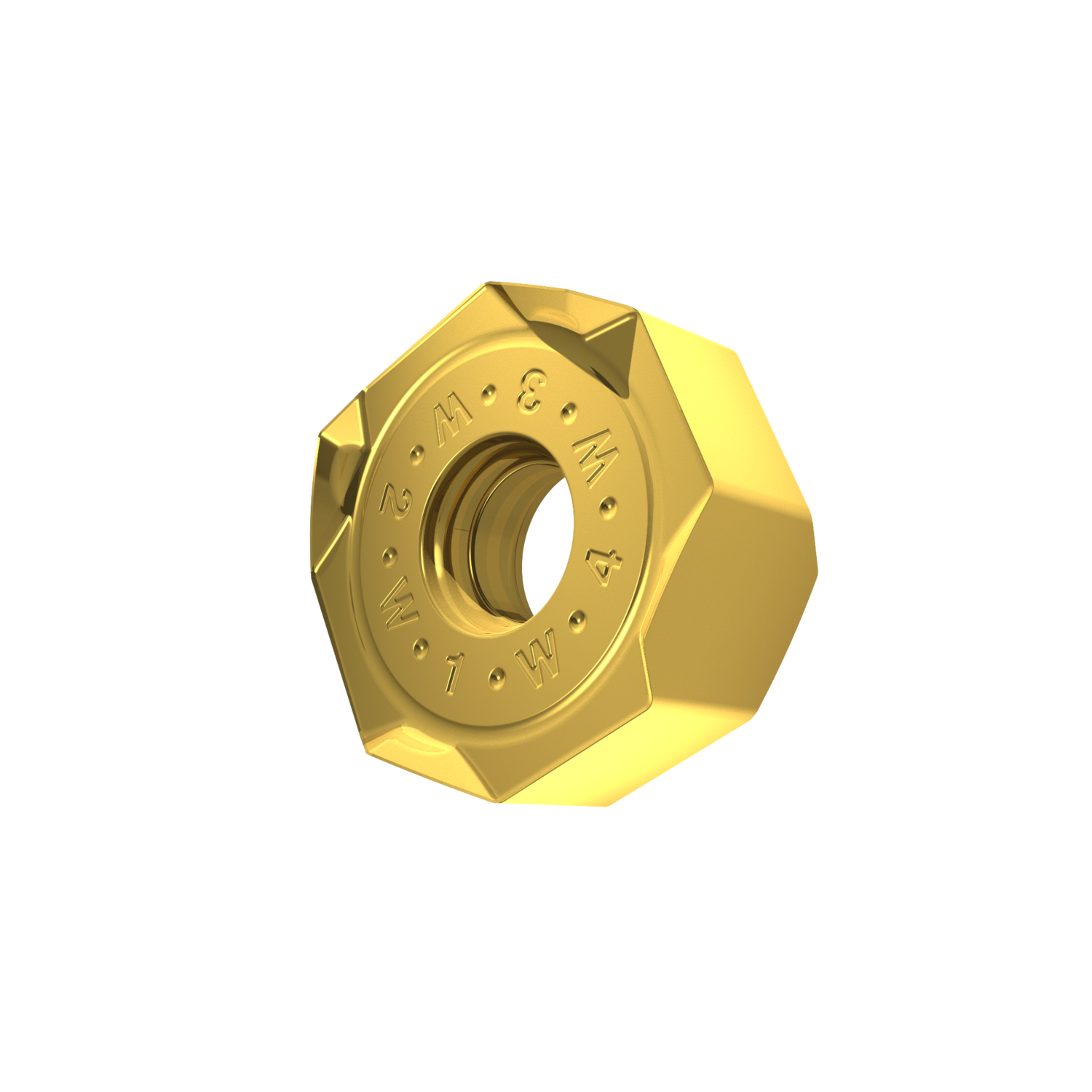

PRAMET ONMX 060508SR-W:M8330 Milling - other and drilling inserts clamped by screw

Description

Double-sided milling insert ONMX 0605, octagonal and wiper design for a maximum depth of cut of 4mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and W geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and M20 -M35 for machining of steel and stainless-steel with face mills SON06C

Additional information

Weight	0.0162 kg
barcode	3603604108553
Additional Information	Description: Value EAN number: 3603604108553 Product number (SAP): 80035606 Ordering code ANSI: ONMX 060508SR-W:M8330 Gross weight – grams: 16.201 Inscribed circle diameter – millimeter (IC): 17 mm Fixing hole diameter – millimeter (D1): 5.7 mm Insert thickness – millimeter (S): 7.08 mm Grade: M8330 Corner radius – millimeter (RE): 0.8 mm Insert Clearance Code and Angle: N 0° Insert Type: X Chipbreaker manufacturer's designation (CBMD): W Insert shape code (SC): O – octagonal ISO: ONMX060508SR-W:M8330

PRAMET ONMX 060508SR-W:M8330 Milling – other and drilling inserts clamped by screw
