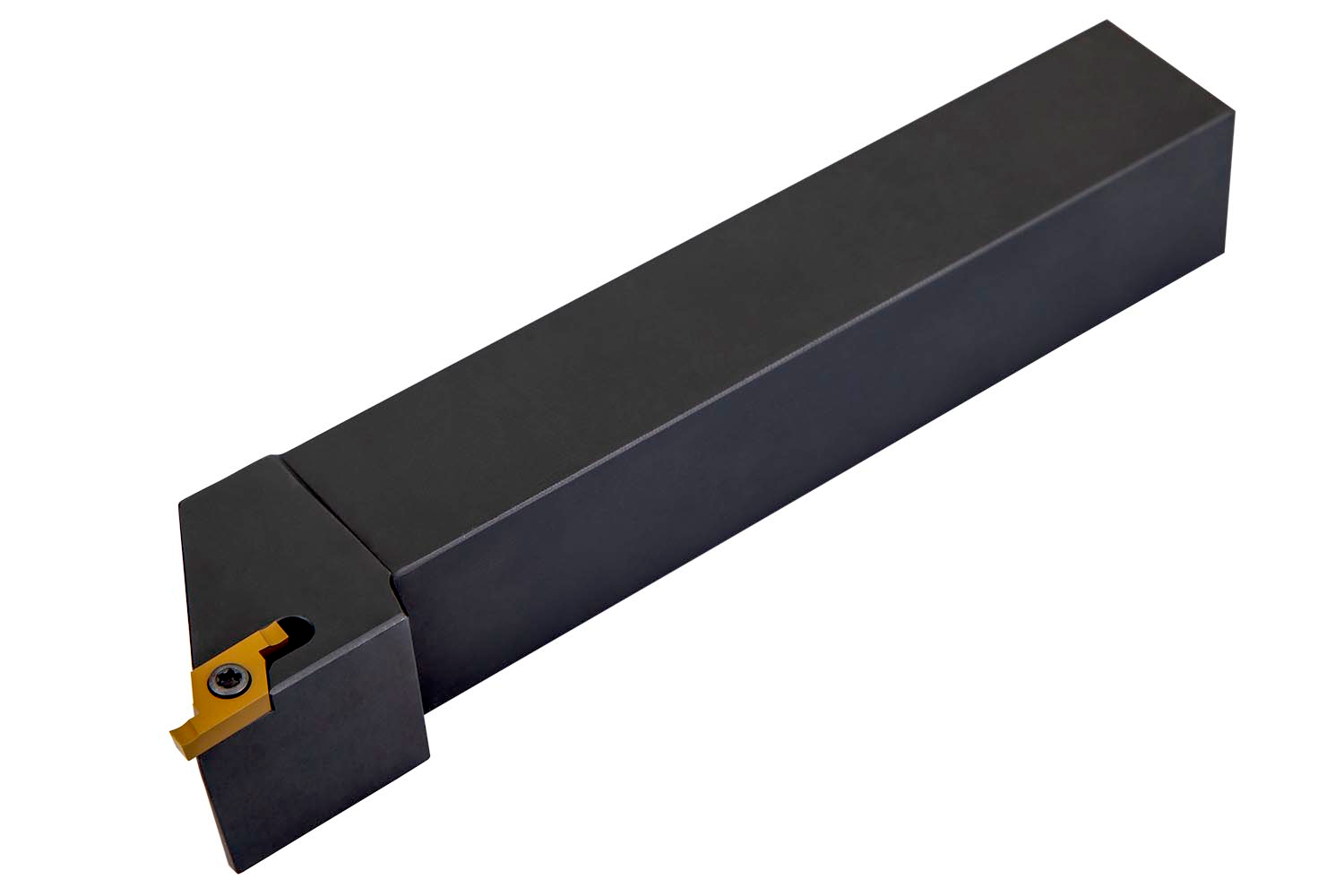

PRAMET P61.SFR-1616H-06 Turning holders for parting, grooving and copy turning

Description

Screw clamp grooving tool for holding a double ended insert with 0.85-3.20mm cutting width (designation X61 0602.. ), right handed with insert parallel to the shank, shank height 16mm, width 16mm and tool length 100mm for shallow radial grooving

Additional information

Weight	0.2475 kg
barcode
Additional Information	Description: Value EAN number: 3603603592902 Product number (SAP): 86035265 Ordering code ANSI: P61.SFR-1616H-06 Gross weight – grams: 223.5 Functional height – millimeter (HF): 16 mm Shank height – millimeter (H): 16 mm Shank width – millimeter (B): 16 mm Functional width – millimeter (WF): 20 mm Functional length – millimeter (LF): 100 mm Head length – millimeter (LH): 21 mm Net weight – grams: 221 ISO: P61.SFR-1616H-06

PRAMET P61.SFR-1616H-06 Turning holders for parting, grooving and copy turning
