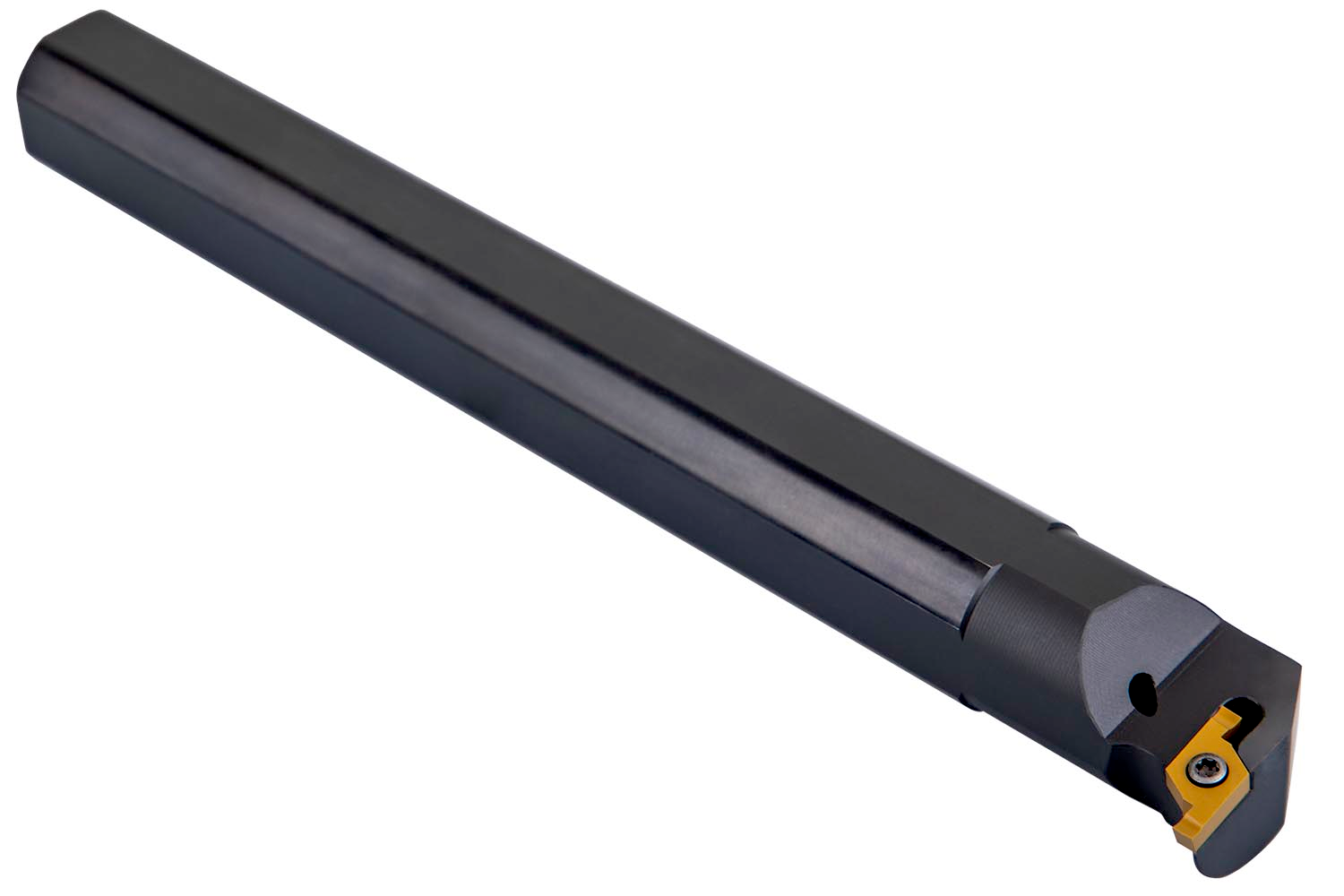

PRAMET P61.SGL-A-0025R-06 Turning holders for parting, grooving and copy turning

Description: Value
EAN number: 3603603592988
Product number (SAP): 86035273
Ordering code ANSI: P61.SGL-A-0025R-06
Gross weight – grams: 711.7
Connection diameter – millimeter (DCON MS): 25 mm
Minimum bore diameter – millimeter (DMIN): 32 mm
Body diameter – millimeter (BD): 24 mm
Functional width – millimeter (WF): 17 mm
Shank height – millimeter (H): 23 mm
Functional length – millimeter (LF): 200 mm
Head length – millimeter (LH): 31 mm
Tool cutting edge angle (KAPR): 0
Net weight – grams: 711.7
ISO: P61.SGL-A-0025R-06
