PRAMET P61.SGR-0012M-06/1 Turning holders for parting, grooving and copy turning

Product Code: P61.SGR-0012M-06/1

$236.80$215.27 Ex. GST

Product Code: P61.SGR-0012M-06/1 SKU P61.SGR-0012M-06/1 Categories , ,
PRAMET P61.SGR-0012M-06/1 Turning holders for parting, grooving and copy turning

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

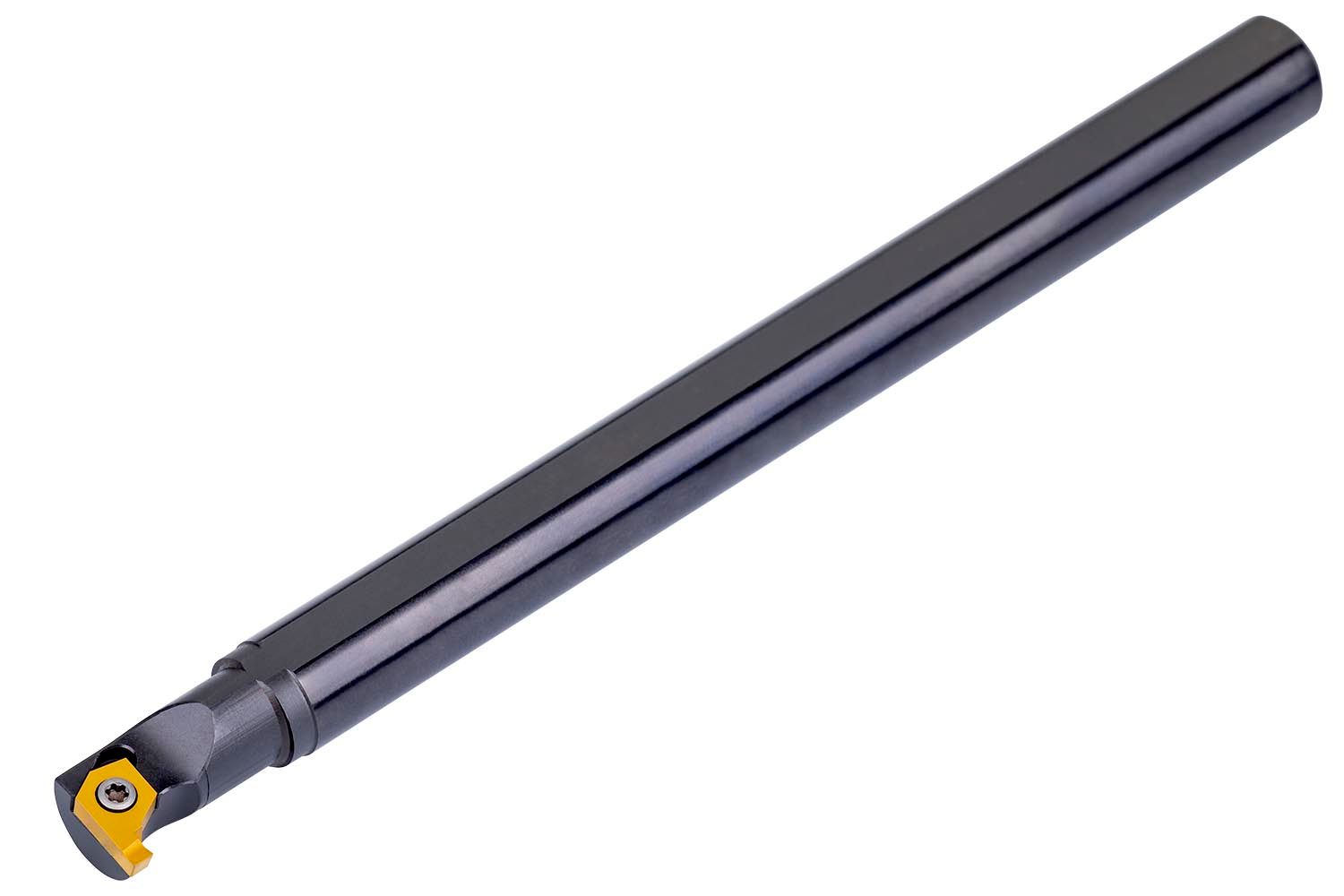

Screw clamp grooving bar for holding a single ended insert with 0.85-2.20mm cutting width (designation X61 0602..-1 ), right handed with insert perpendicular to the shank, shank diameter 12mm and tool length 150mm for internal grooving

Additional information

Weight 0.2299 kg
barcode
Additional Information

Description: Value
EAN number: 3603603597020
Product number (SAP): 86035277
Ordering code ANSI: P61.SGR-0012M-06/1
Gross weight – grams: 158.7
Connection diameter – millimeter (DCON MS): 12 mm
Minimum bore diameter – millimeter (DMIN): 12.5 mm
Body diameter – millimeter (BD): 10 mm
Functional width – millimeter (WF): 7.5 mm
Shank height – millimeter (H): 11 mm
Functional length – millimeter (LF): 150 mm
Head length – millimeter (LH): 19 mm
Tool cutting edge angle (KAPR): 0
Net weight – grams: 158.7
ISO: P61.SGR-0012M-06/1

Brand

PRAMET
