PRAMET PCBNR 2020 K 12 Turning holders external

Description

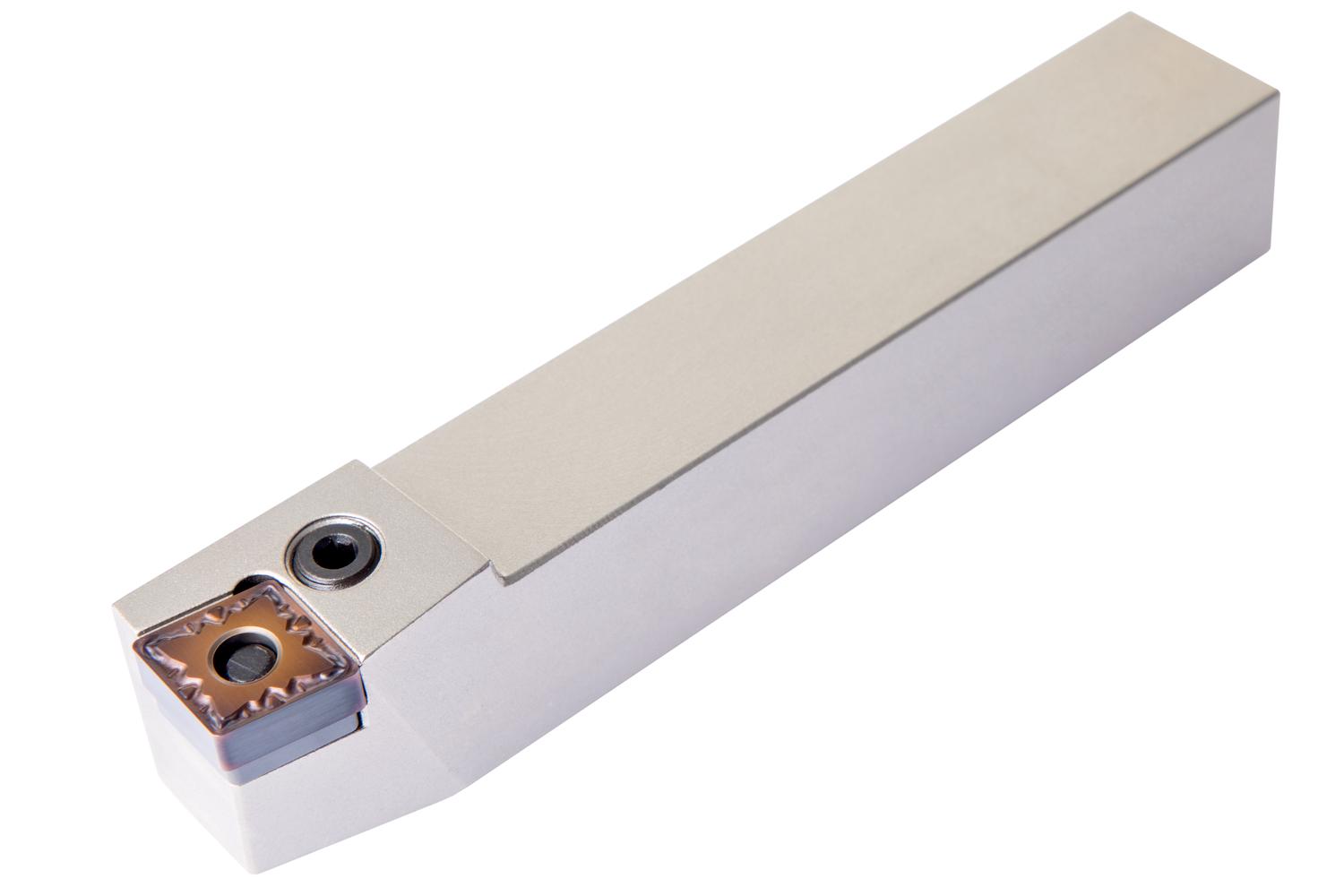

Lever lock turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), right hand 75° side cutting with straight shank, 20mm tool height x 20mm width x 125mm long for taper turning and longitudinal turning without shoulder

Additional information

Weight	0.1573 kg
barcode
Additional Information	Description: Value EAN number: 3603602926326 Product number (SAP): 84001995 Ordering code ANSI: PCBNR 2020 K 12 Gross weight – grams: 401.8 Shank height – millimeter (H): 20 mm Shank width – millimeter (B): 20 mm Functional height – millimeter (HF): 20 mm Functional width – millimeter (WF): 17 mm Functional length – millimeter (LF): 125 mm Head length – millimeter (LH): 28 mm Inclination angle (LAMS): -5 Orthogonal rake angle (GAMO): -6 Net weight – grams: 401.8 Insert size: 12 ISO: PCBNR2020K12

Need Technical Advice?

Description

Additional information

Brand

PRAMET
