PRAMET PCLNR 2525 M 12 Turning holders external

Description

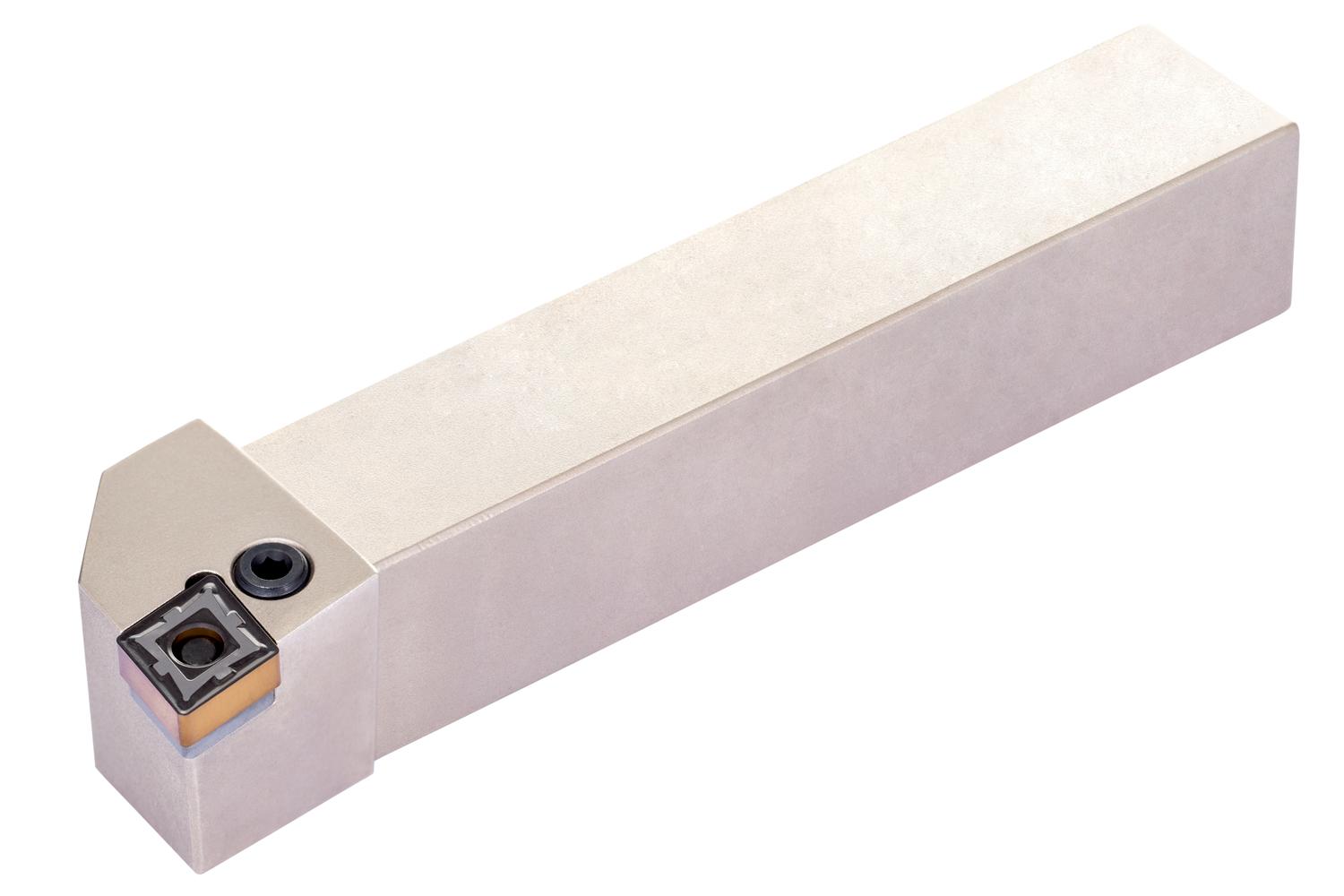

Lever lock turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), right hand 95° side and end cutting with off-set shank, 25mm tool height x 25mm width x 150mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight	0.1661 kg
barcode
Additional Information	Description: Value EAN number: 3603602924230 Product number (SAP): 84001560 Ordering code ANSI: PCLNR 2525 M 12 Gross weight – grams: 767 Shank height – millimeter (H): 25 mm Shank width – millimeter (B): 25 mm Functional height – millimeter (HF): 25 mm Functional width – millimeter (WF): 32 mm Functional length – millimeter (LF): 150 mm Head length – millimeter (LH): 28 mm Inclination angle (LAMS): -6 Orthogonal rake angle (GAMO): -6 Net weight – grams: 680 Insert size: 12 ISO: PCLNR2525M12
