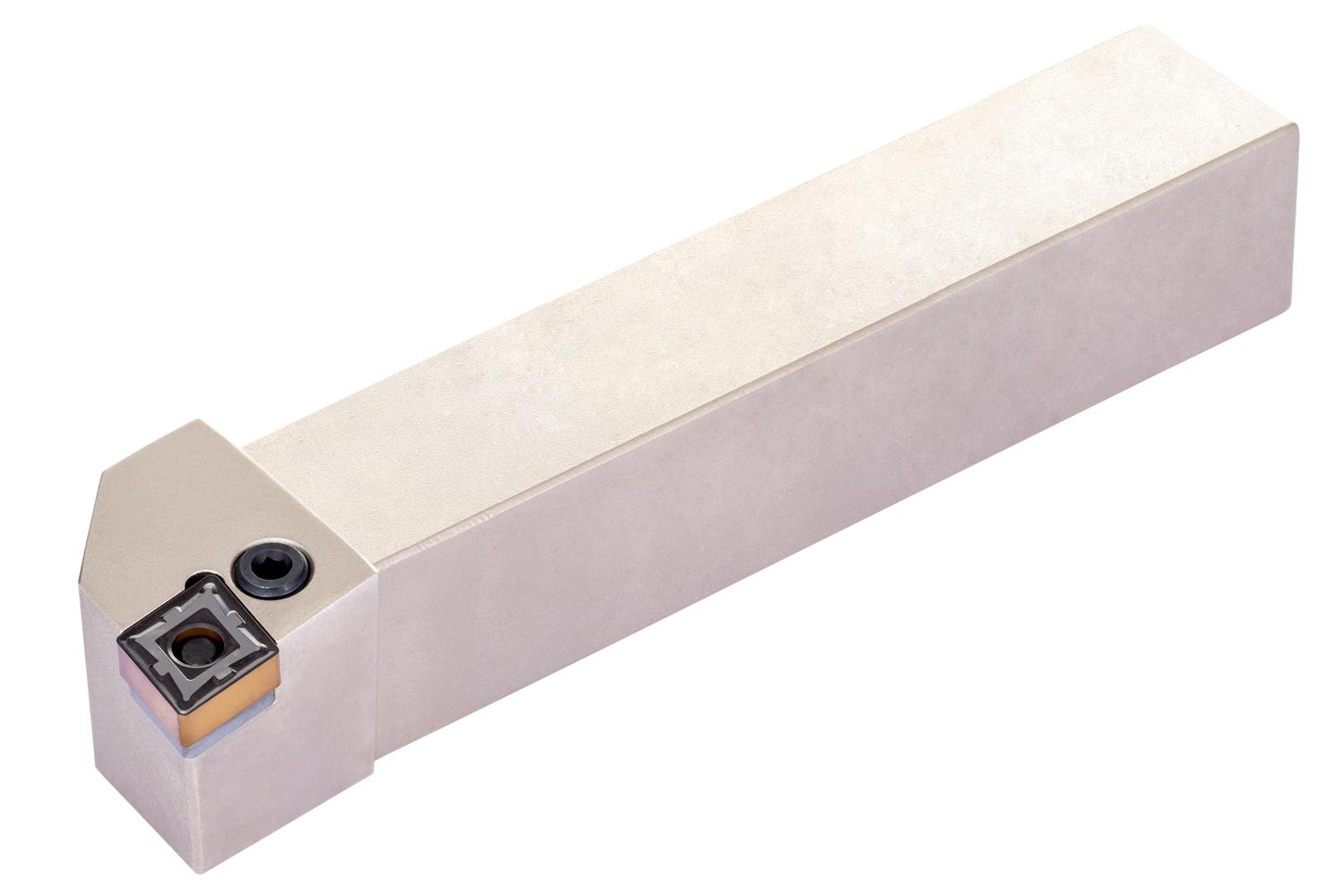

PRAMET PCLNR 3225 P 16 Turning holders external

Description

Lever lock turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 15.575mm, 6.35mm thick (ISO designation CN.. 1606.. ), right hand 95° side and end cutting with off-set shank, 32mm tool height x 25mm width x 170mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight	0.1826 kg
barcode
Additional Information	Description: Value EAN number: 3603602921420 Product number (SAP): 84001098 Ordering code ANSI: PCLNR 3225 P 16 Gross weight – grams: 1088.9 Shank height – millimeter (H): 32 mm Shank width – millimeter (B): 25 mm Functional height – millimeter (HF): 32 mm Functional width – millimeter (WF): 32 mm Functional length – millimeter (LF): 170 mm Head length – millimeter (LH): 34 mm Inclination angle (LAMS): -6 Orthogonal rake angle (GAMO): -6 Net weight – grams: 1075 Insert size: 16 ISO: PCLNR3225P16

Need Technical Advice?

Description

Additional information

Brand

PRAMET
