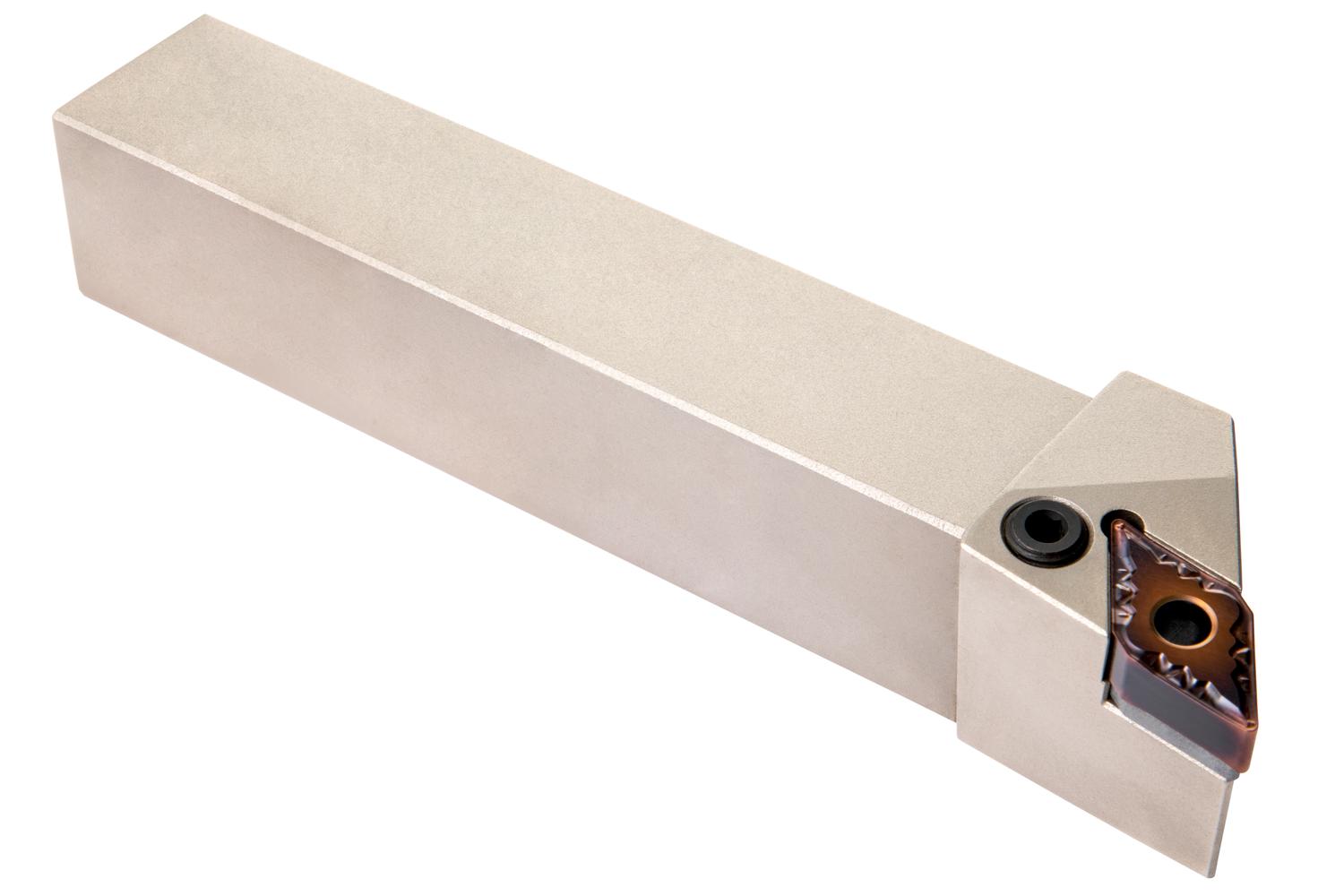

PRAMET PDJNL 2020 K 11 Turning holders external

Product Code: PDJNL 2020 K 11

$162.02$147.29 Ex. GST

Product Code: PDJNL 2020 K 11 SKU PDJNL 2020 K 11 Categories , ,
PRAMET PDJNL 2020 K 11 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Lever lock turning tool for holding a 55° rhombus negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation DN.. 1104.. ), left hand 93° side cutting with off-set shank, 20mm tool height x 20mm width x 125mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight 0.1573 kg
barcode
Additional Information

Description: Value
EAN number: 3603602921130
Product number (SAP): 84001063
Ordering code ANSI: PDJNL 2020 K 11
Gross weight – grams: 396.8
Shank height – millimeter (H): 20 mm
Shank width – millimeter (B): 20 mm
Functional height – millimeter (HF): 20 mm
Functional width – millimeter (WF): 25 mm
Functional length – millimeter (LF): 125 mm
Head length – millimeter (LH): 28 mm
Inclination angle (LAMS): -7
Orthogonal rake angle (GAMO): -6
Net weight – grams: 396.8
Insert size: 11
ISO: PDJNL2020K11

Brand

PRAMET
