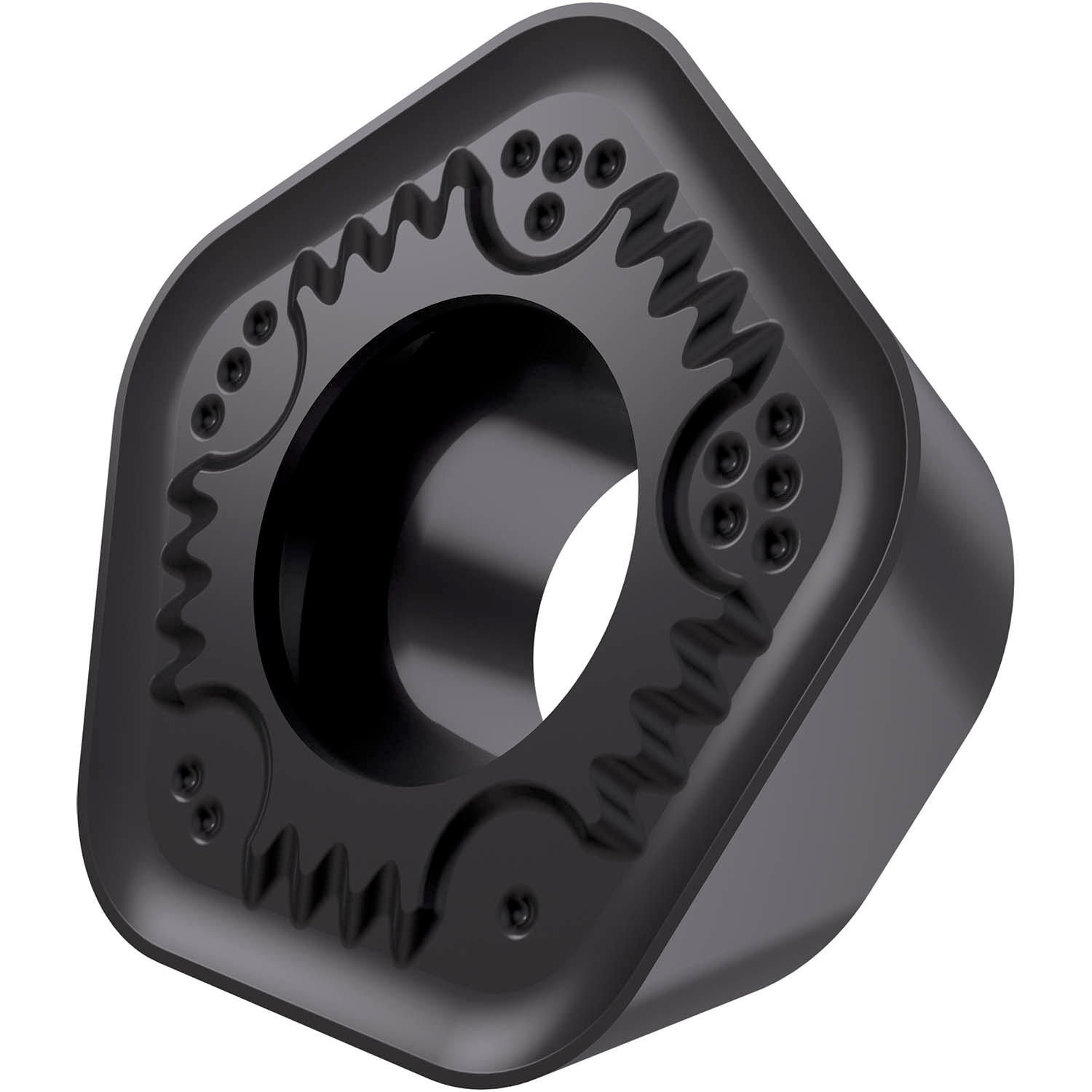

PRAMET PDKT 090530ER-FM:8215 Milling Insert for HFC Cutters

Description: Value
EAN number: 3603602910493
Product number (SAP): 80022663
Ordering code ANSI: PDKT 090530ER-FM:8215
Gross weight – grams: 7.979
Inscribed circle diameter – millimeter (IC): 13.5 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Cutting edge length – millimeter (L): 9 mm
Insert thickness – millimeter (S): 5.47 mm
Grade: 8215
Corner radius – millimeter (RE): 3 mm
Insert Clearance Code and Angle: D 15°
Insert size: 09
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): FM
Insert shape code (SC): P – pentagonal
ISO: PDKT090530ER-FM:8215
