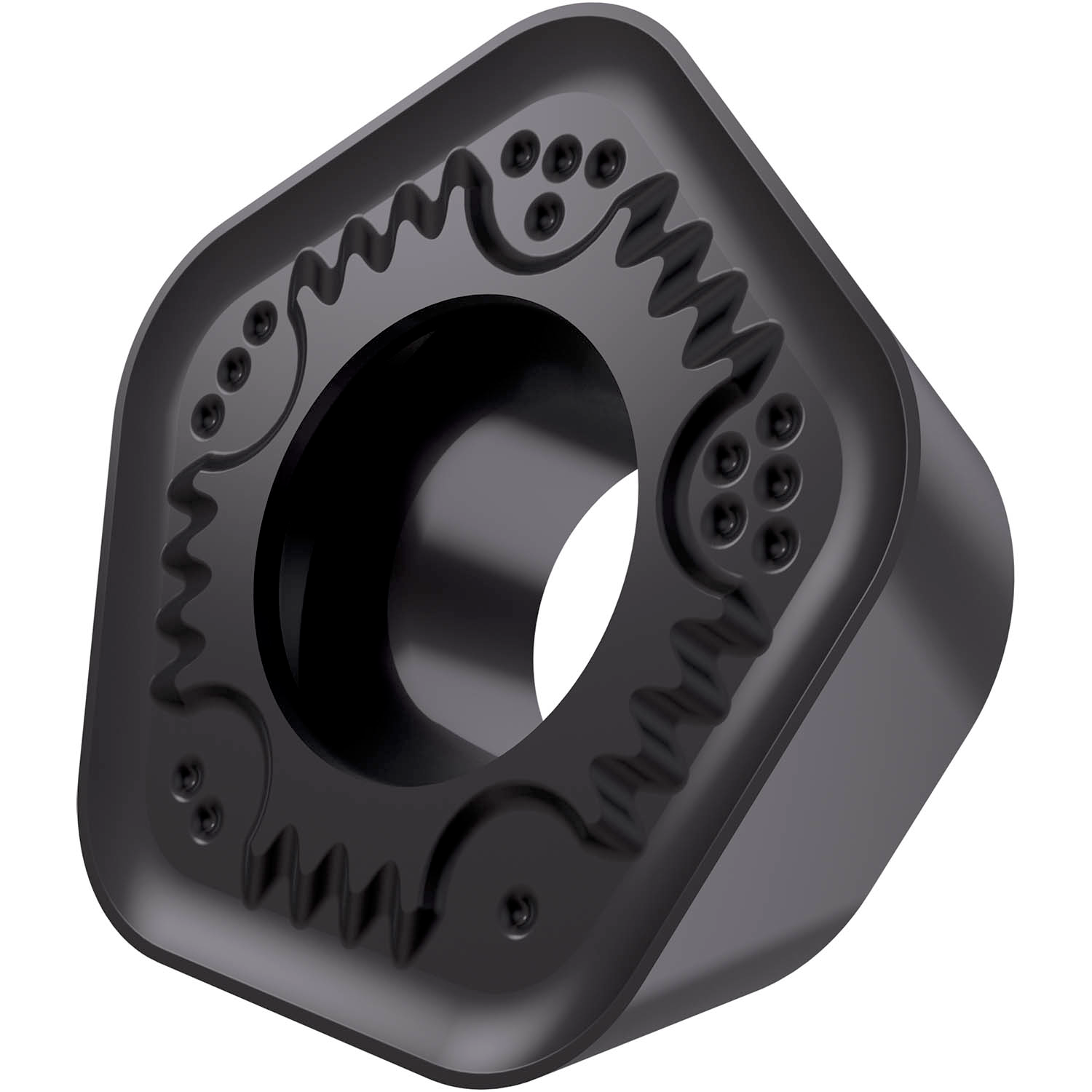

PRAMET PDKT 090530ER-FM:M8310 Milling Insert for HFC Cutters

Product Code: PDKT 090530ER-FM:M8310

$36.15$32.86 Ex. GST

Product Code: PDKT 090530ER-FM:M8310 SKU PDKT 090530ER-FM:M8310 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert PDKT 0905 with chip-breakers, pentagonal for a maximum depth of cut of 2.0mm, with 3.0mm corner radius, an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges, M8310 PVD coated fine grained WC-Co carbide within ISO-grade range P01 -P10 for machining of steel with high feed cutters SPD09

Additional information

Weight 0.0351 kg
barcode
Additional Information

Description: Value
EAN number: 3603603072657
Product number (SAP): 80026120
Ordering code ANSI: PDKT 090530ER-FM:M8310
Gross weight – grams: 7.915
Inscribed circle diameter – millimeter (IC): 13.5 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Cutting edge length – millimeter (L): 9 mm
Insert thickness – millimeter (S): 5.47 mm
Grade: M8310
Corner radius – millimeter (RE): 3 mm
Insert Clearance Code and Angle: D 15°
Insert size: 09
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): FM
Insert shape code (SC): P – pentagonal
ISO: PDKT090530ER-FM:M8310

Brand

PRAMET
