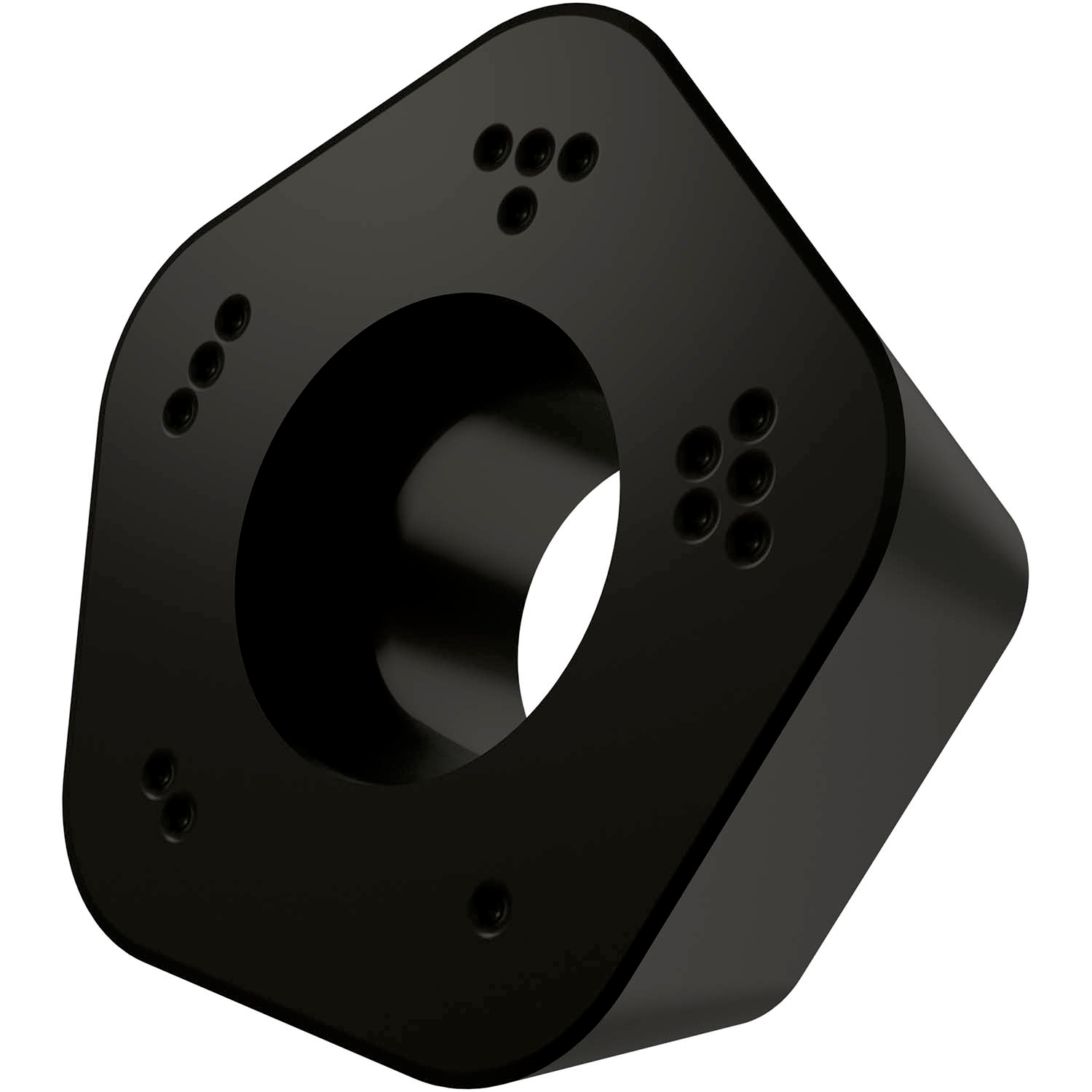

PRAMET PDMW 090530SR:M9325 Milling Insert for HFC Cutters

Product Code: PDMW 090530SR:M9325

$32.63$29.66 Ex. GST

Product Code: PDMW 090530SR:M9325 SKU PDMW 090530SR:M9325 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert PDMW 0905 with a plane rake surface, pentagonal for a maximum depth of cut of 2.0mm, with 3.0mm corner radius, an indexing accuracy according to ISO-tolerance class-M with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide within ISO-grade range K10 -K30 for machining of cast-iron with high feed cutters SPD09

Additional information

Weight 0.0317 kg
barcode
Additional Information

Description: Value
EAN number: 3603602914415
Product number (SAP): 80023399
Ordering code ANSI: PDMW 090530SR:M9325
Gross weight – grams: 8.337
Inscribed circle diameter – millimeter (IC): 13.5 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Cutting edge length – millimeter (L): 9 mm
Insert thickness – millimeter (S): 5.47 mm
Grade: M9325
Corner radius – millimeter (RE): 3 mm
Insert Clearance Code and Angle: D 15°
Insert size: 09
Insert Type: W
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): P – pentagonal
ISO: PDMW090530SR:M9325

Brand

PRAMET
