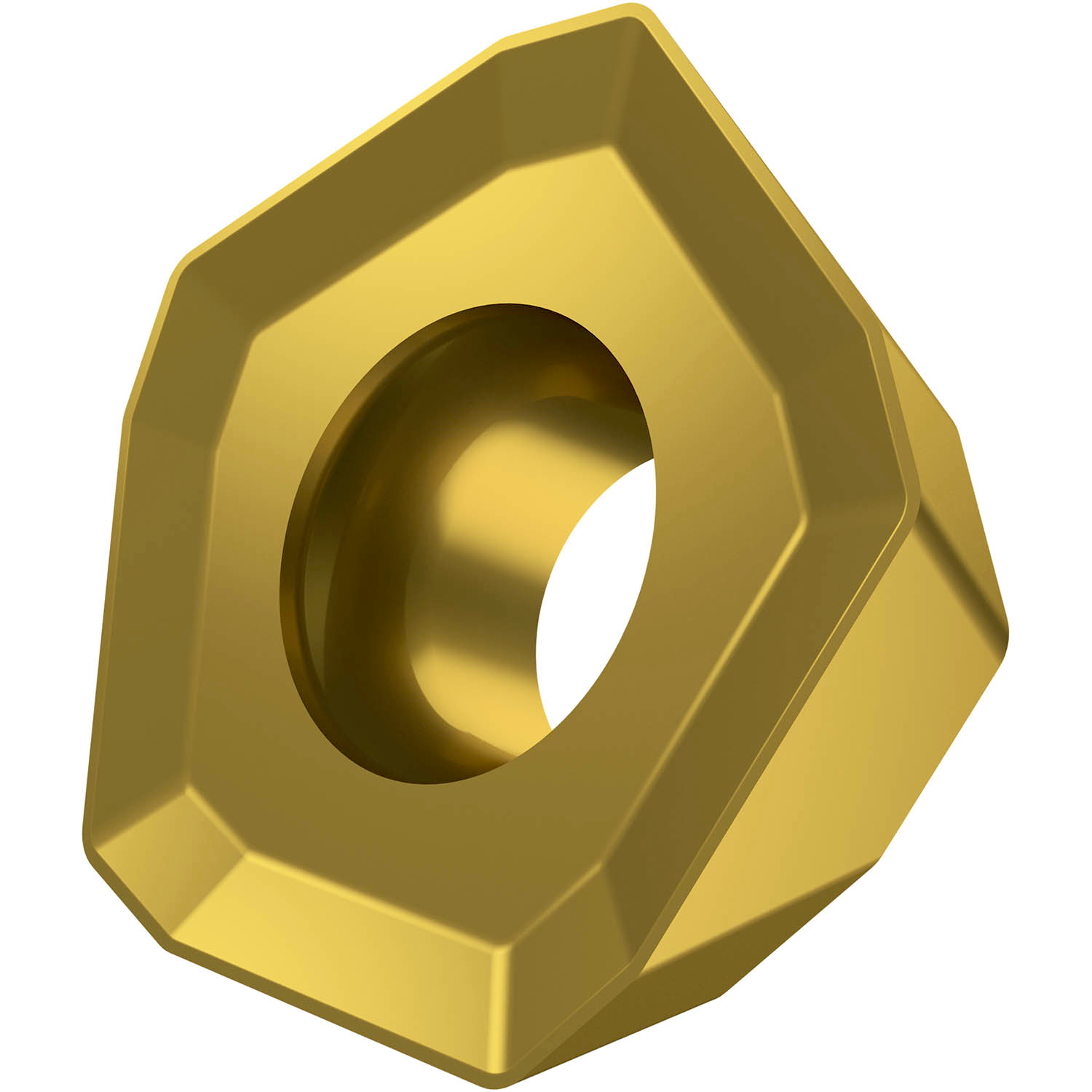

PRAMET PDMX 0905ZEER-M:M8330 Milling Insert for HFC Cutters

Description

Single-sided milling insert PDMX 0905, pentagonal for a maximum depth of cut of 2.0mm, with an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and M20 -M35 for machining of steel and stainless-steel with high feed cutters SPD09

Additional information

Weight	0.0317 kg
barcode
Additional Information	Description: Value EAN number: 3603603385955 Product number (SAP): 80030122 Ordering code ANSI: PDMX 0905ZEER-M:M8330 Gross weight – grams: 7.331 Wiper edge length – millimeter (BS): 2 mm Inscribed circle diameter – millimeter (IC): 13.5 mm Fixing hole diameter – millimeter (D1): 5.5 mm Cutting edge length – millimeter (L): 9 mm Insert thickness – millimeter (S): 5.47 mm Grade: M8330 Insert Clearance Code and Angle: D 15° Insert size: 09 Insert Type: X Chipbreaker manufacturer's designation (CBMD): M Insert shape code (SC): P – pentagonal ISO: PDMX0905ZEER-M:M8330

PRAMET PDMX 0905ZEER-M:M8330 Milling Insert for HFC Cutters

Need Technical Advice?

Description

Additional information

Brand

PRAMET
