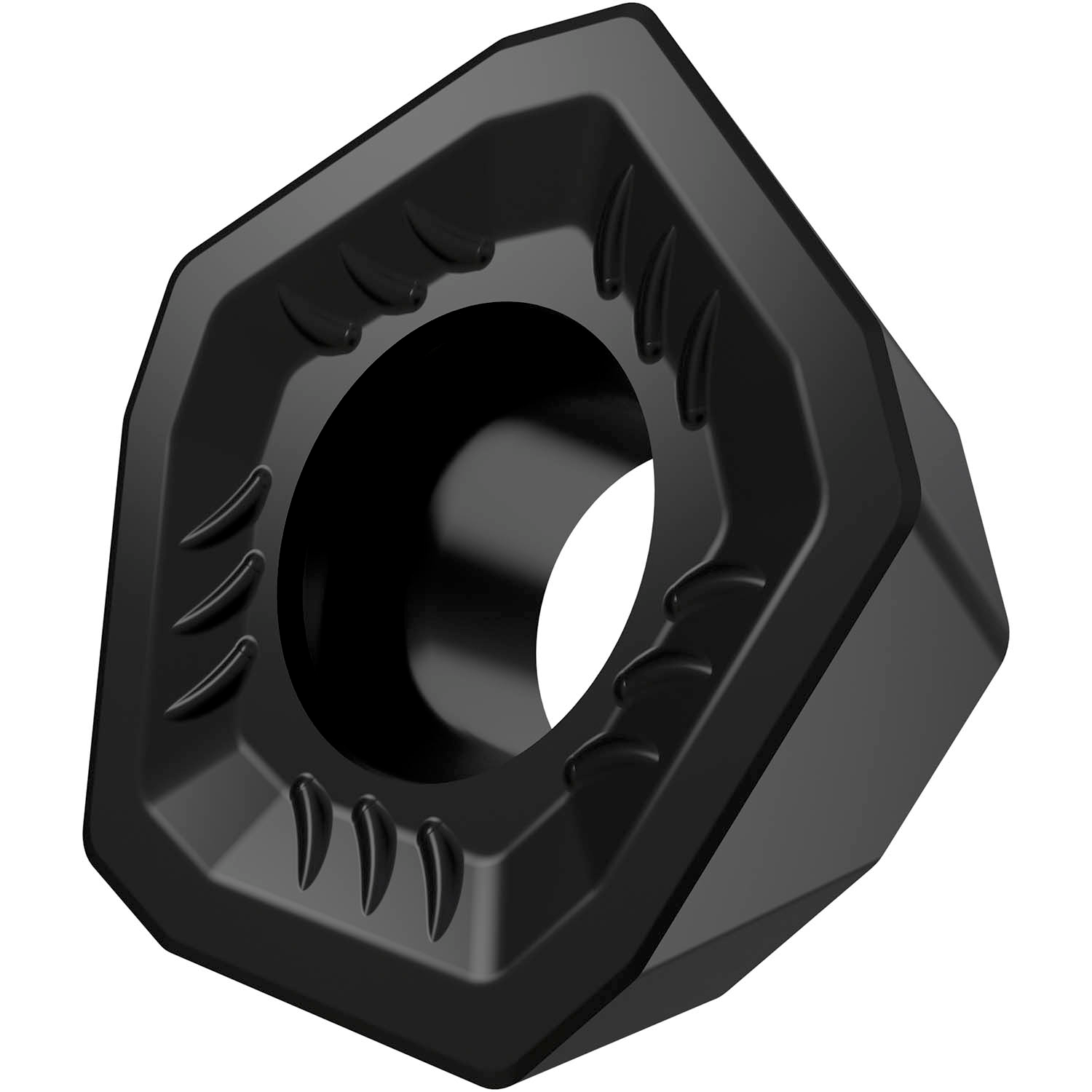

PRAMET PDMX 0905ZESR-R:M8345 Milling Insert for HFC Cutters

Description: Value
EAN number: 3603602914422
Product number (SAP): 80023400
Ordering code ANSI: PDMX 0905ZESR-R:M8345
Gross weight – grams: 7.562
Wiper edge length – millimeter (BS): 2 mm
Inscribed circle diameter – millimeter (IC): 13.5 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Cutting edge length – millimeter (L): 9 mm
Insert thickness – millimeter (S): 5.47 mm
Grade: M8345
Insert Clearance Code and Angle: D 15°
Insert size: 09
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): R
Insert shape code (SC): P – pentagonal
ISO: PDMX0905ZESR-R:M8345
