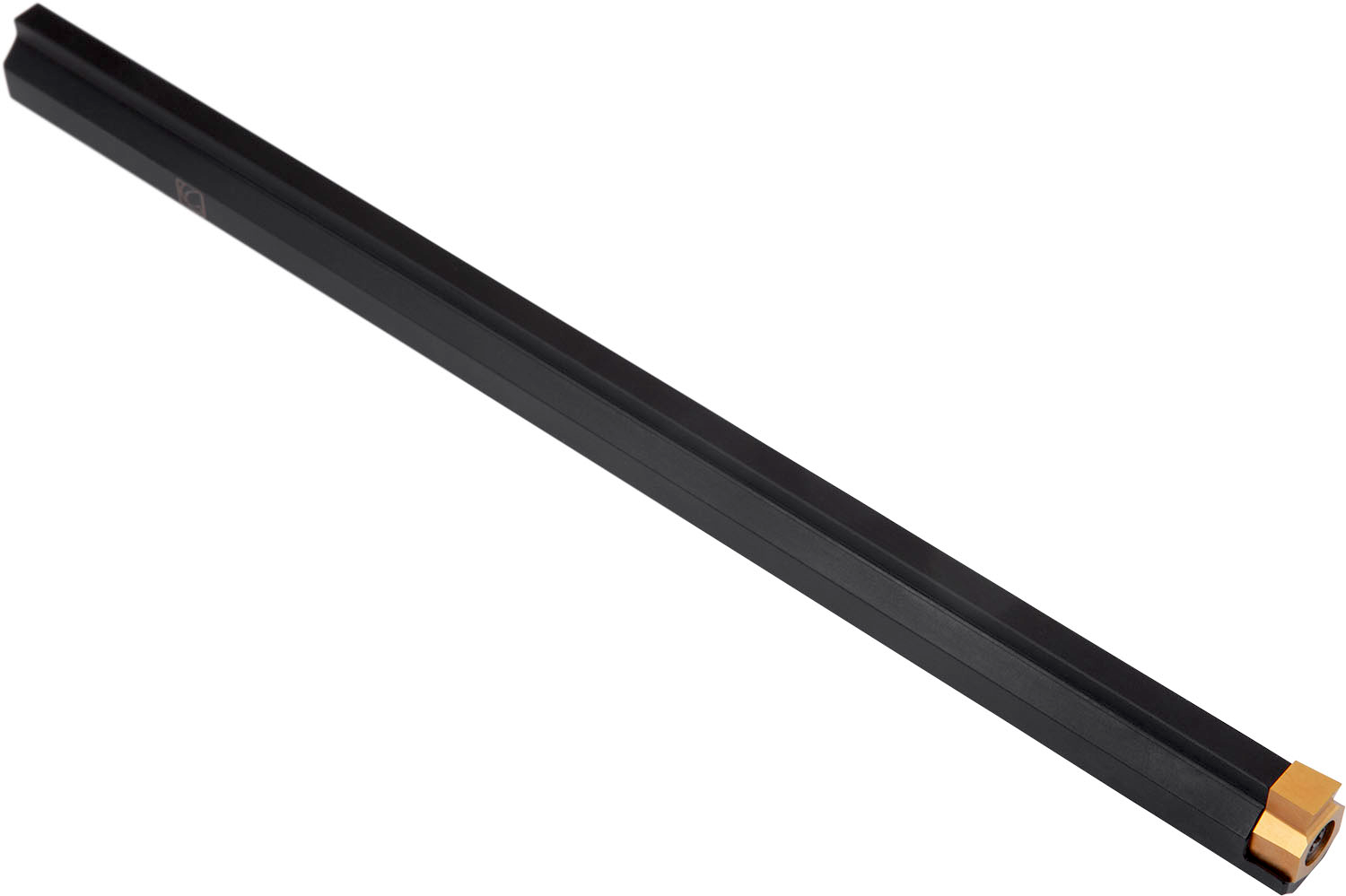

PRAMET PHZ 90 1111-06 Turning Holders for Slotting

Product Code: PHZ 90 1111-06

$245.86$223.51 Ex. GST

Product Code: PHZ 90 1111-06 SKU PHZ 90 1111-06 Categories Broaching, CUTTING TOOLS (HSS & Carbide), D4 - Turn Hold Slotting

PRAMET PHZ 90 1111-06 Turning Holders for Slotting

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

CNC Broach for carrying a single ended insert, size HZ90 0604-40 or HZ90 0604-50 for longitudinal slotting 4mm or 5mm keyways in bore diameters greater than 14mm

Additional information

Weight	0.2387 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603602962867 Product number (SAP): 86006192 Ordering code ANSI: PHZ 90 1111-06 Gross weight – grams: 208.6 Shank height – millimeter (H): 11.3 mm Functional height – millimeter (HF): 12 mm Overall length – millimeter (OAL): 200 mm Usable Length – millimeter (LU): 60 mm Net weight – grams: 208.6 ISO: PHZ901111-06
