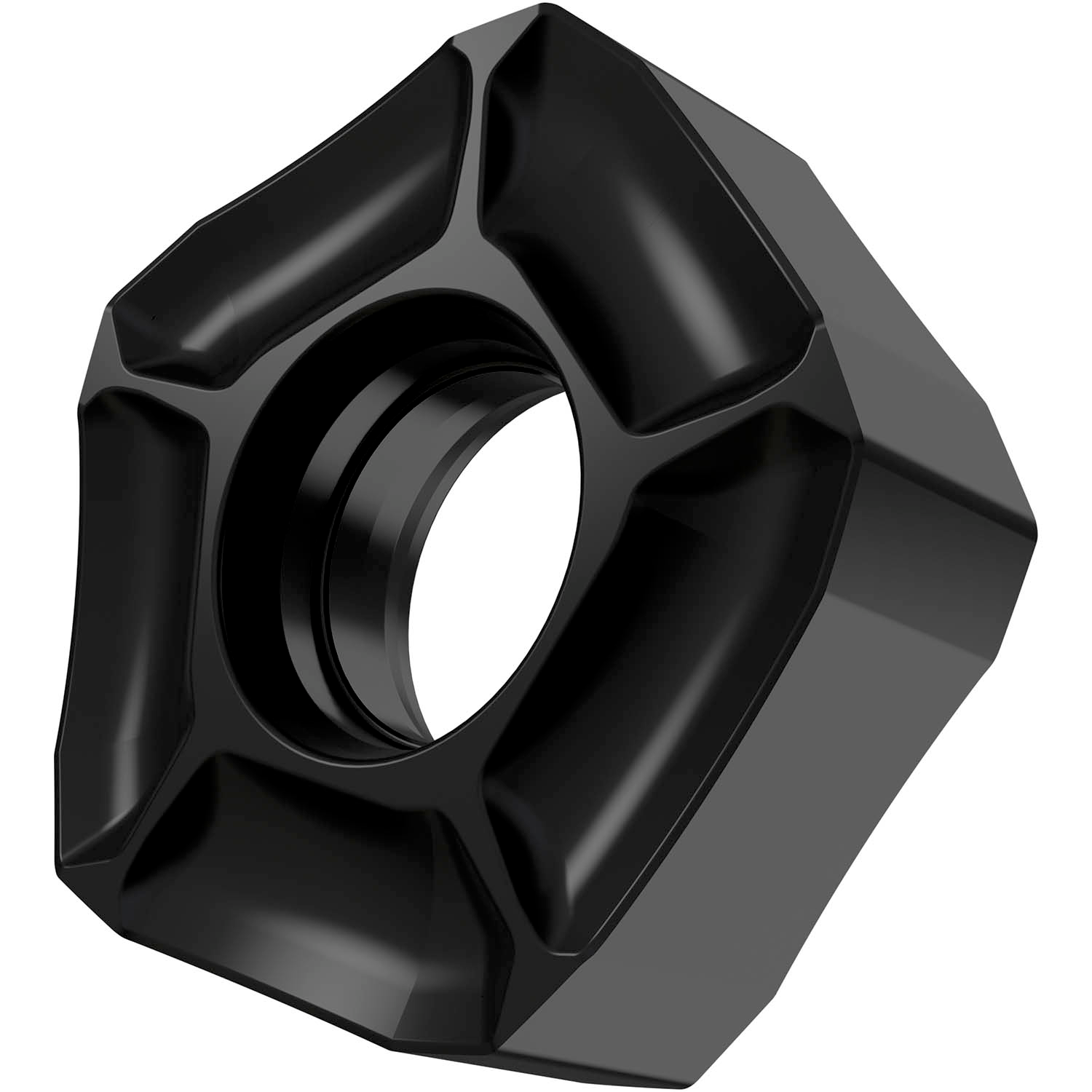

PRAMET PNMU 1308DNSR-M:M8345 Milling – other and drilling inserts clamped by screw

Description: Value
EAN number: 3603602915306
Product number (SAP): 80023511
Ordering code ANSI: PNMU 1308DNSR-M:M8345
Gross weight – grams: 48.58
Wiper edge length – millimeter (BS): 3 mm
Inscribed circle diameter – millimeter (IC): 24.4 mm
Fixing hole diameter – millimeter (D1): 10 mm
Cutting edge length – millimeter (L): 13 mm
Insert thickness – millimeter (S): 7.94 mm
Grade: M8345
Insert Clearance Code and Angle: N 0°
Insert size: 13
Insert Thickness: 08
Insert Type: U
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): P – pentagonal
ISO: PNMU1308DNSR-M:M8345
