PRAMET PPH 0800-CL4:8215 Milling inserts for D&M

Product Code: PPH 0800-CL4:8215

$54.96$49.96 Ex. GST

Product Code: PPH 0800-CL4:8215 SKU PPH 0800-CL4:8215 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

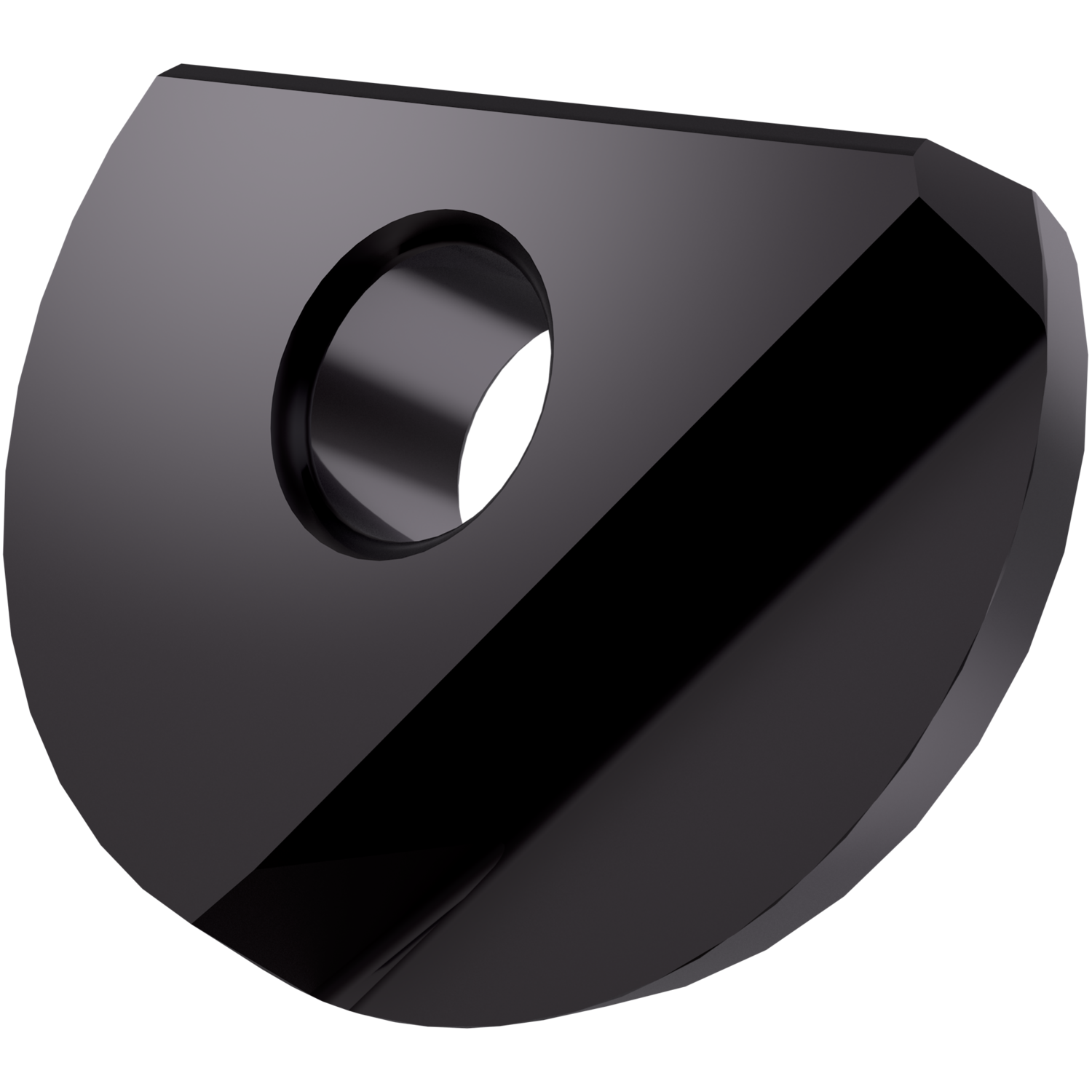

Ball nosed copy milling insert with a diameter of 8mm for a maximum depth of cut of 0.8mm, CL4 geometry and 8215 PVD coated fine grained WC-Co carbide within ISO-grade ranges P10 -P20/K10 -K25 and H10 -H15 for machining of steel, cast-iron and hardened material with copy end mills K2-PPH

Additional information

Weight 0.0534 kg
barcode
Additional Information

Description: Value
EAN number: 3603603162440
Product number (SAP): 80027670
Ordering code ANSI: PPH 0800-CL4:8215
Gross weight – grams: 1.061
Insert cutting diameter – millimeter (CDI): 8 mm
Fixing hole diameter – millimeter (D1): 2.5 mm
Insert length – millimeter (INSL): 7 mm
Insert thickness – millimeter (S): 2.4 mm
Grade: 8215
Insert Style: Ball nosed
ISO: PPH0800-CL4:8215

Brand

PRAMET
