PRAMET PPH-16/02-QC16-123 Milling cutters for D&M

Product Code: PPH-16/02-QC16-123

$561.97$510.88 Ex. GST

Product Code: PPH-16/02-QC16-123 SKU PPH-16/02-QC16-123 Categories , ,

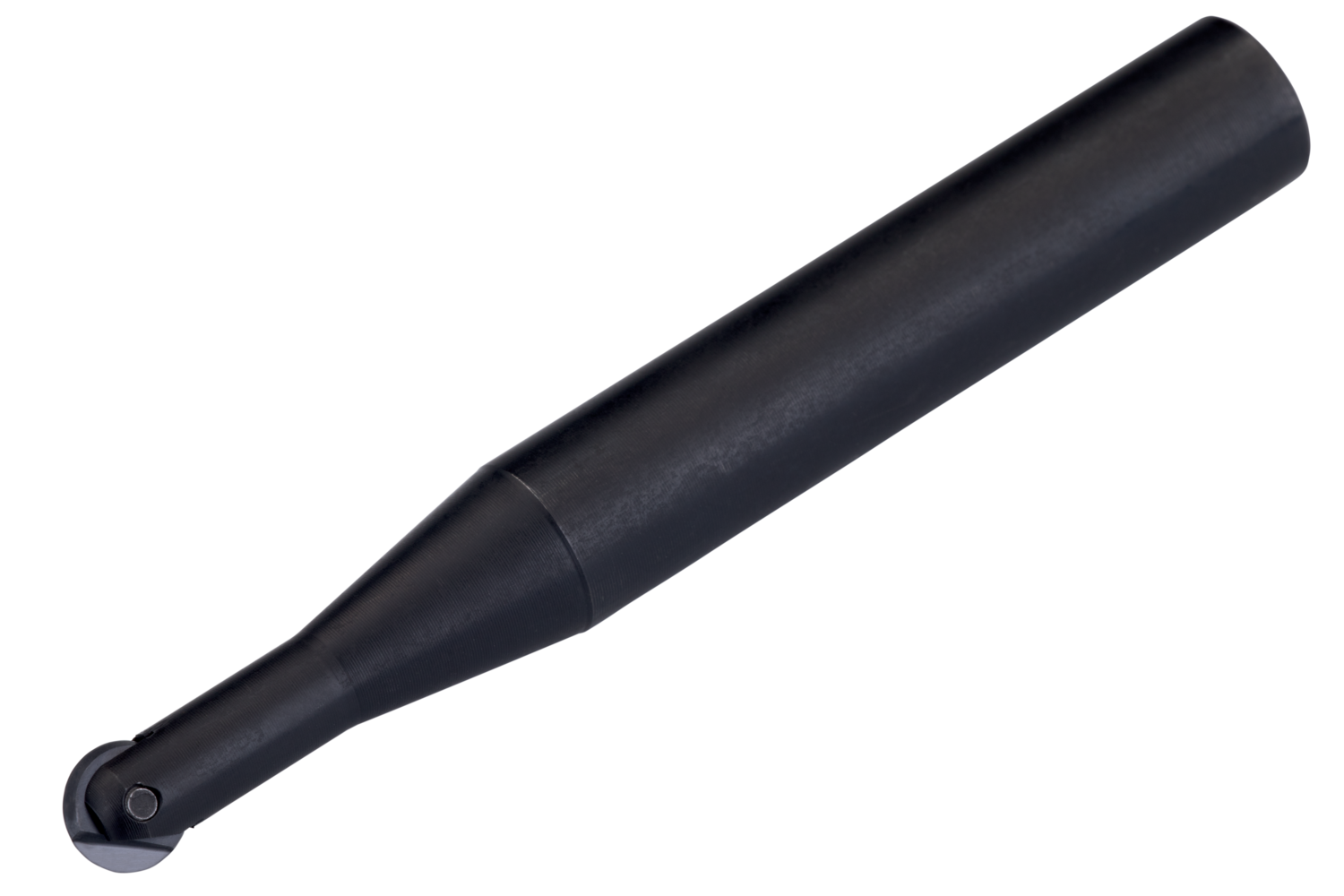

PRAMET PPH-16/02-QC16-123 Milling cutters for D&M

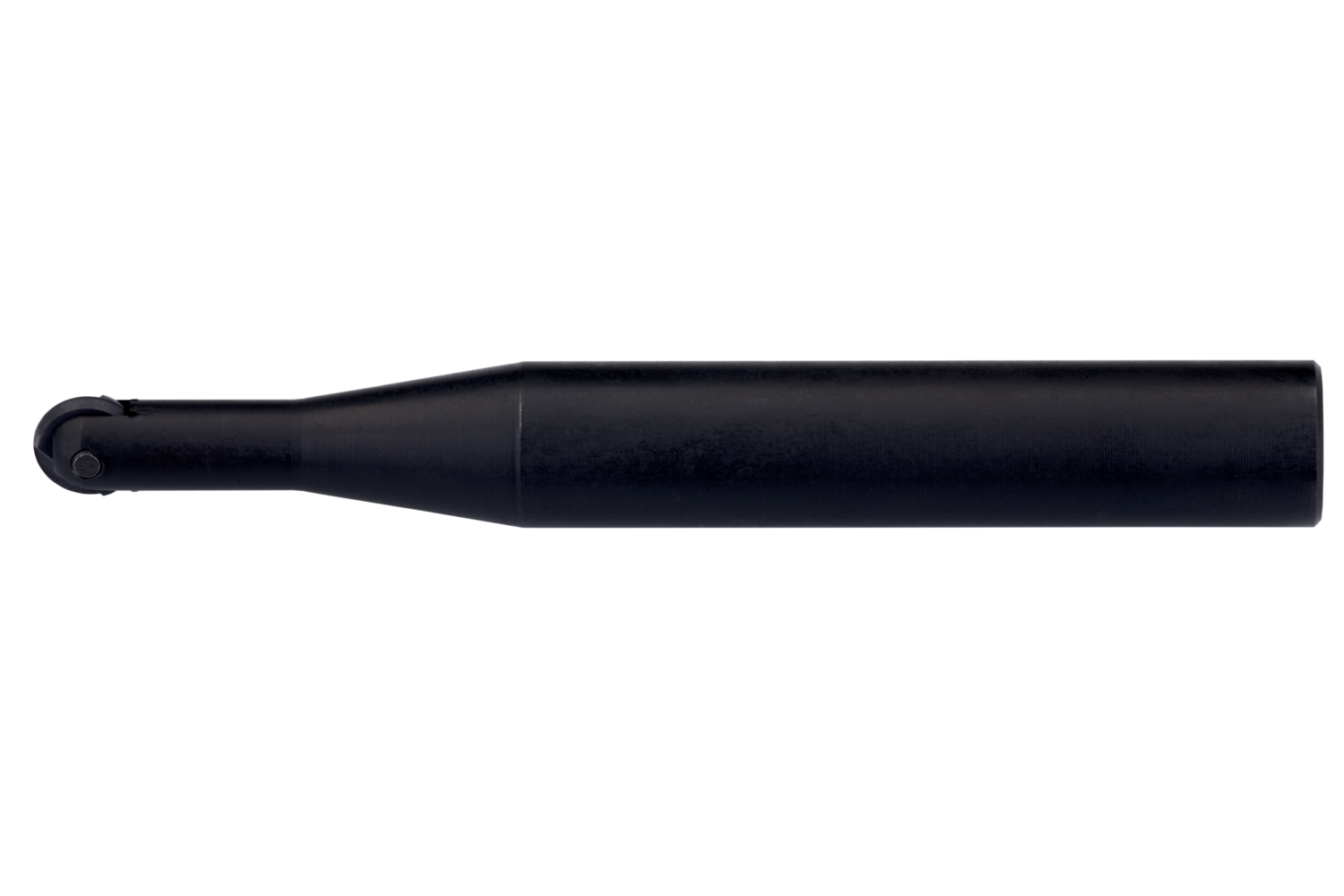

PRAMET PPH-16/02-QC16-123 Milling cutters for D&M - Image 2
PRAMET PPH-16/02-QC16-123 Milling cutters for D&M - Image 3

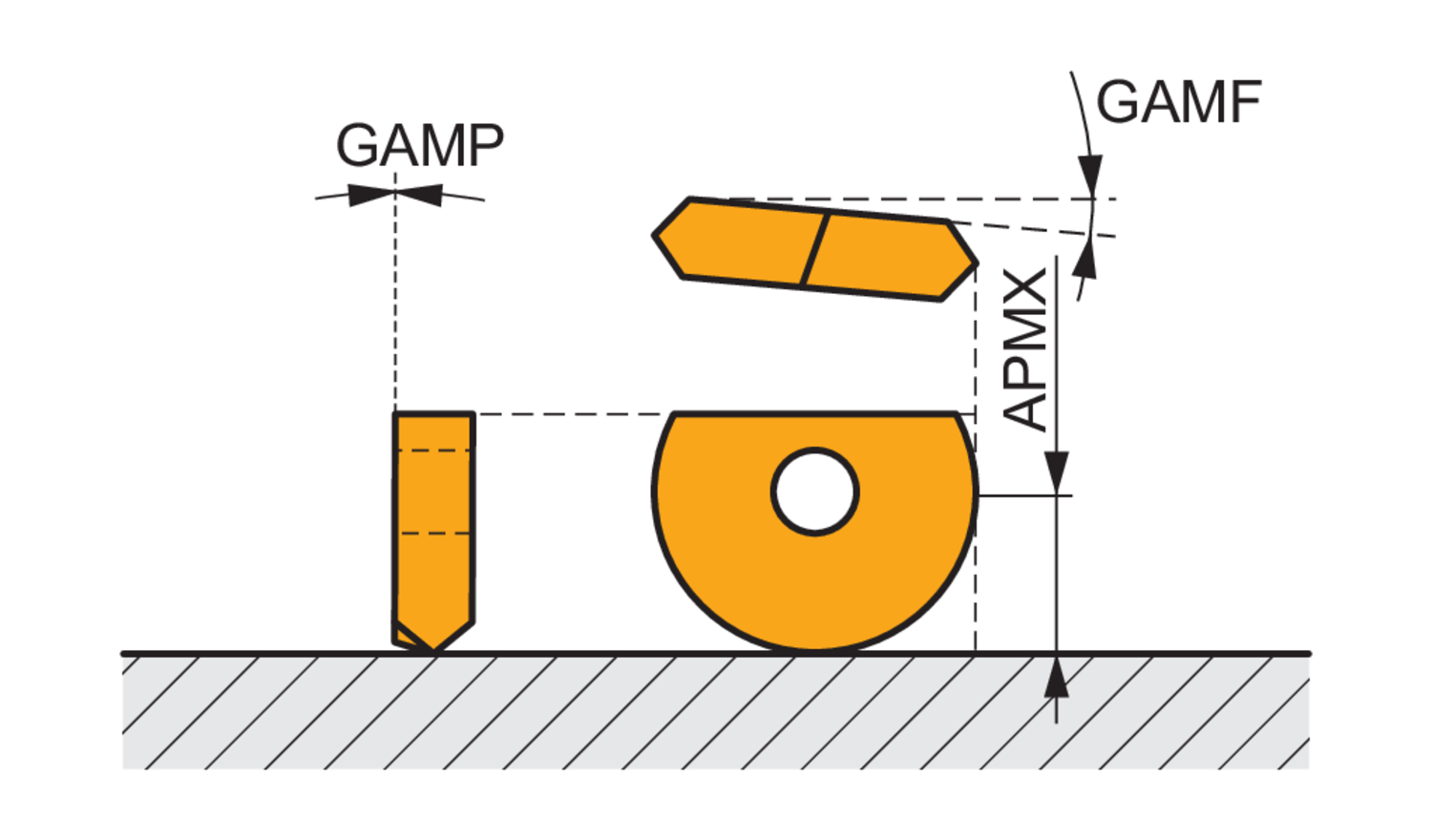

PRAMET PPH-16/02-QC16-123 Milling cutters for D&M - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Copy end mill which utilises 1 of PPH 16.., PPHE 16.., PPHT 16.. or PPHF 16.. single-sided insert, cutting diameter 16mm with 16mm parallel shank according to DIN 1835A, 123mm overall length for copy milling with a maximum depth of cut of 0.3-4.0mm

Additional information

Weight 0.5456 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603104242
Product number (SAP): 86026872
Ordering code ANSI: PPH-16/02-QC16-123
Gross weight – grams: 210.1

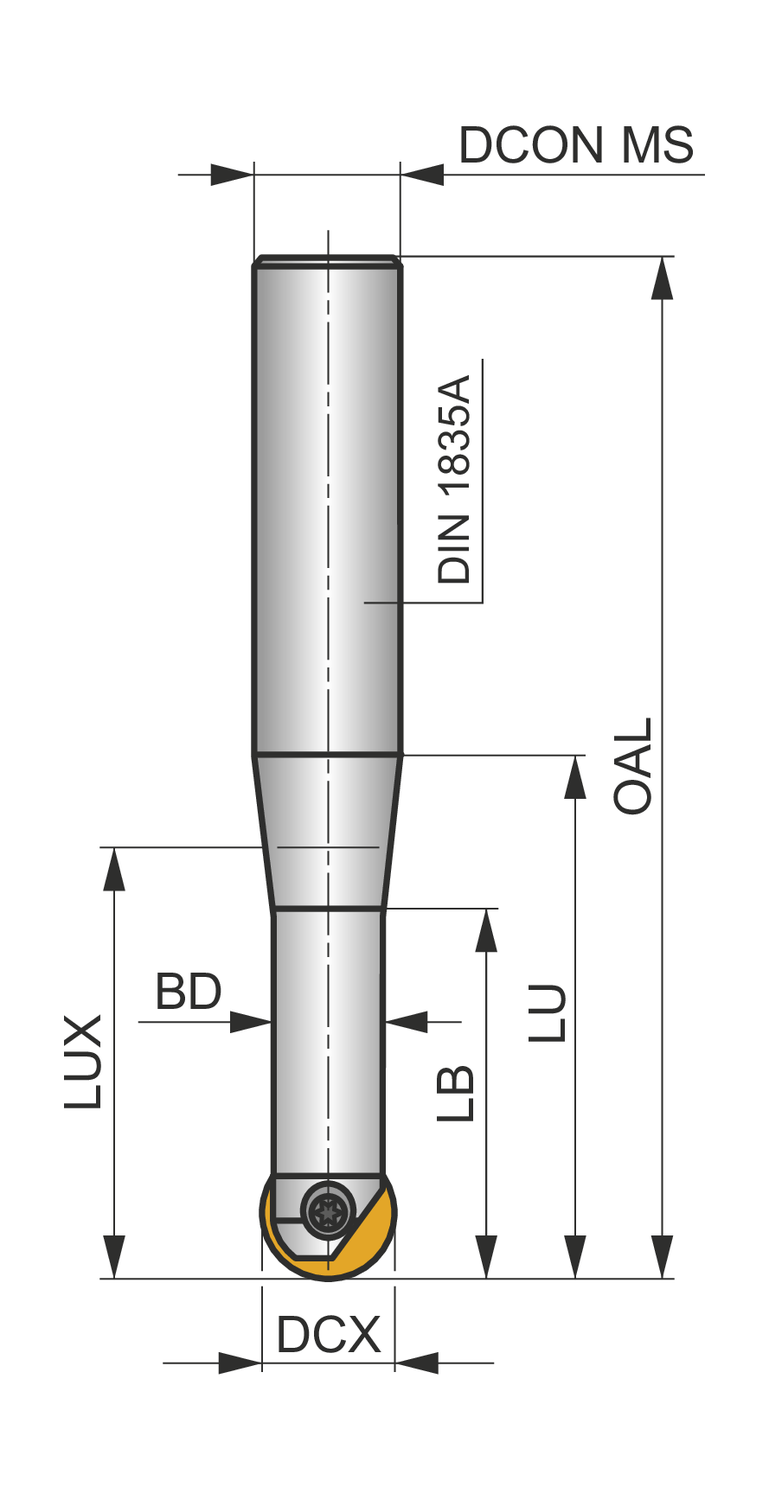

Cutting diameter maximum – millimeter (DCX): 16 mm
Overall length – millimeter (OAL): 123 mm
Connection diameter – millimeter (DCON MS): 16 mm
Body diameter – millimeter (BD): 14 mm
Usable Length – millimeter (LU): 63 mm
Rotational speed maximum (RPMX): 36000
Net weight – grams: 205
Insert index count (NOI): 1
ISO: PPH-16/02-QC16-123

Brand

PRAMET
