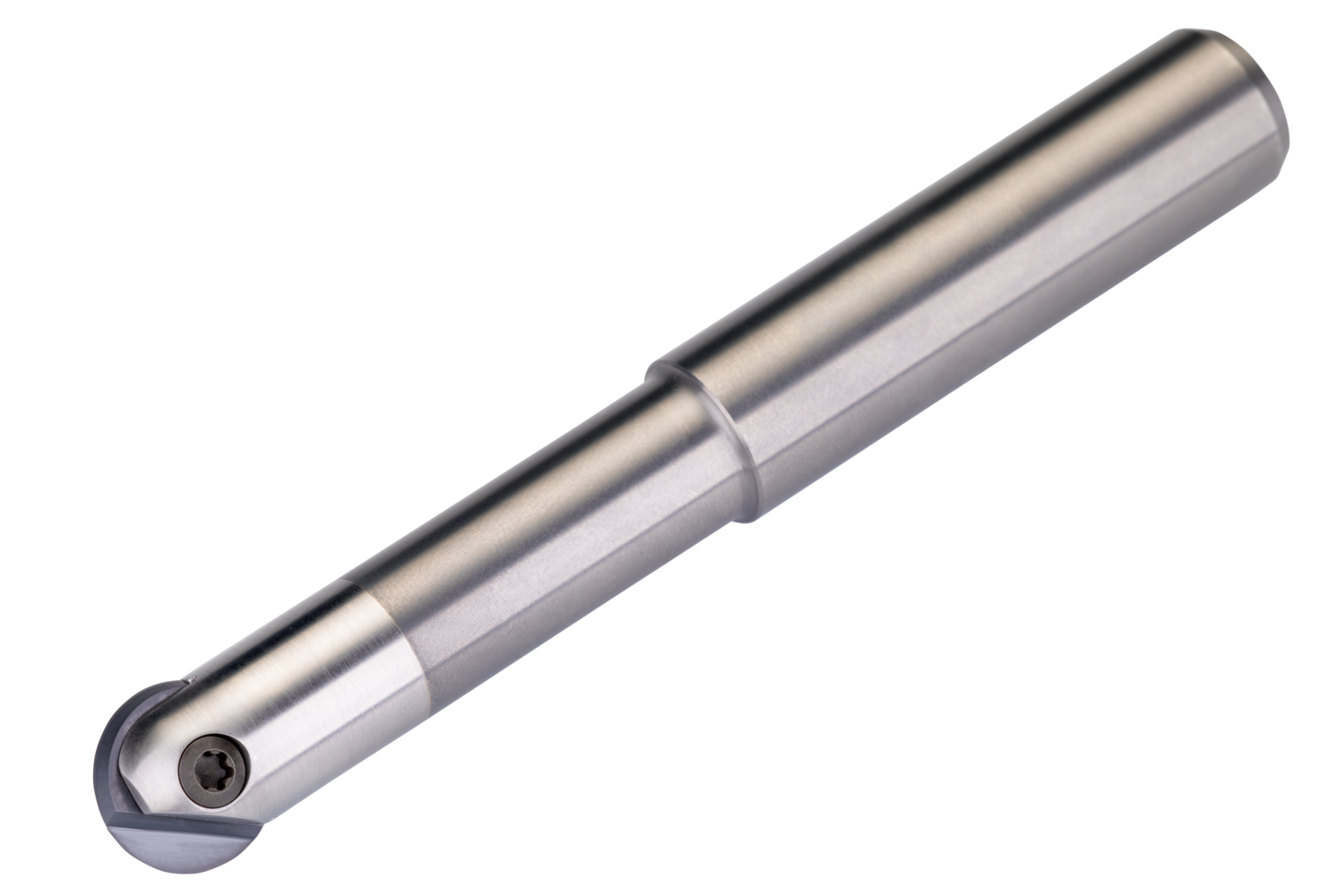

PRAMET PPH-16/02-QC16-123HSCW Milling cutters for D&M

Description: Value
EAN number: 3603603104259
Product number (SAP): 86027180
Ordering code ANSI: PPH-16/02-QC16-123HSCW
Gross weight – grams: 362.4
Cutting diameter maximum – millimeter (DCX): 16 mm
Overall length – millimeter (OAL): 123 mm
Connection diameter – millimeter (DCON MS): 16 mm
Body diameter – millimeter (BD): 14 mm
Usable Length – millimeter (LU): 63 mm
Carbide body of indexable milling cutter: Yes
Rotational speed maximum (RPMX): 43000
Net weight – grams: 360
Insert index count (NOI): 1
ISO: PPH-16/02-QC16-123HSCW
