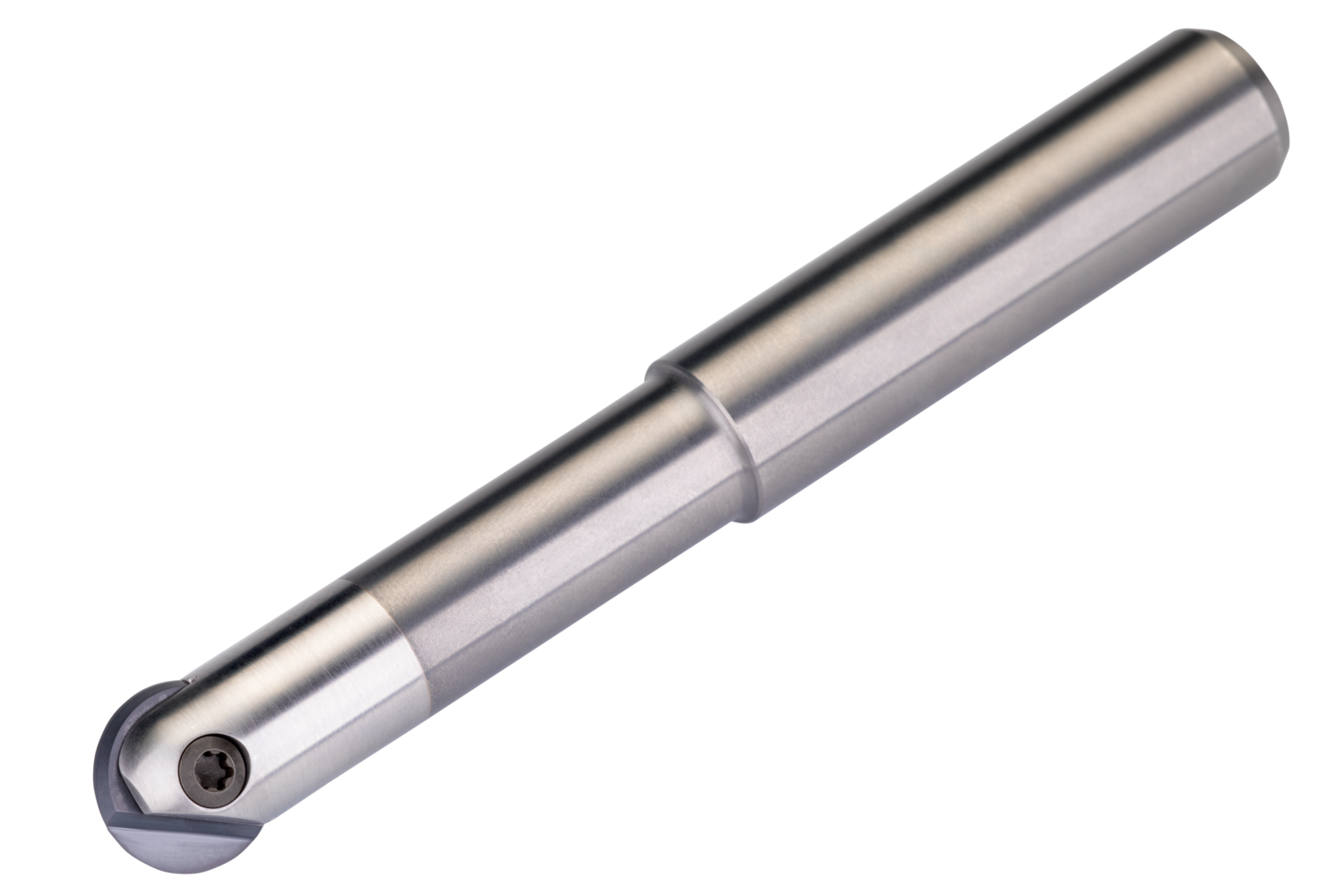

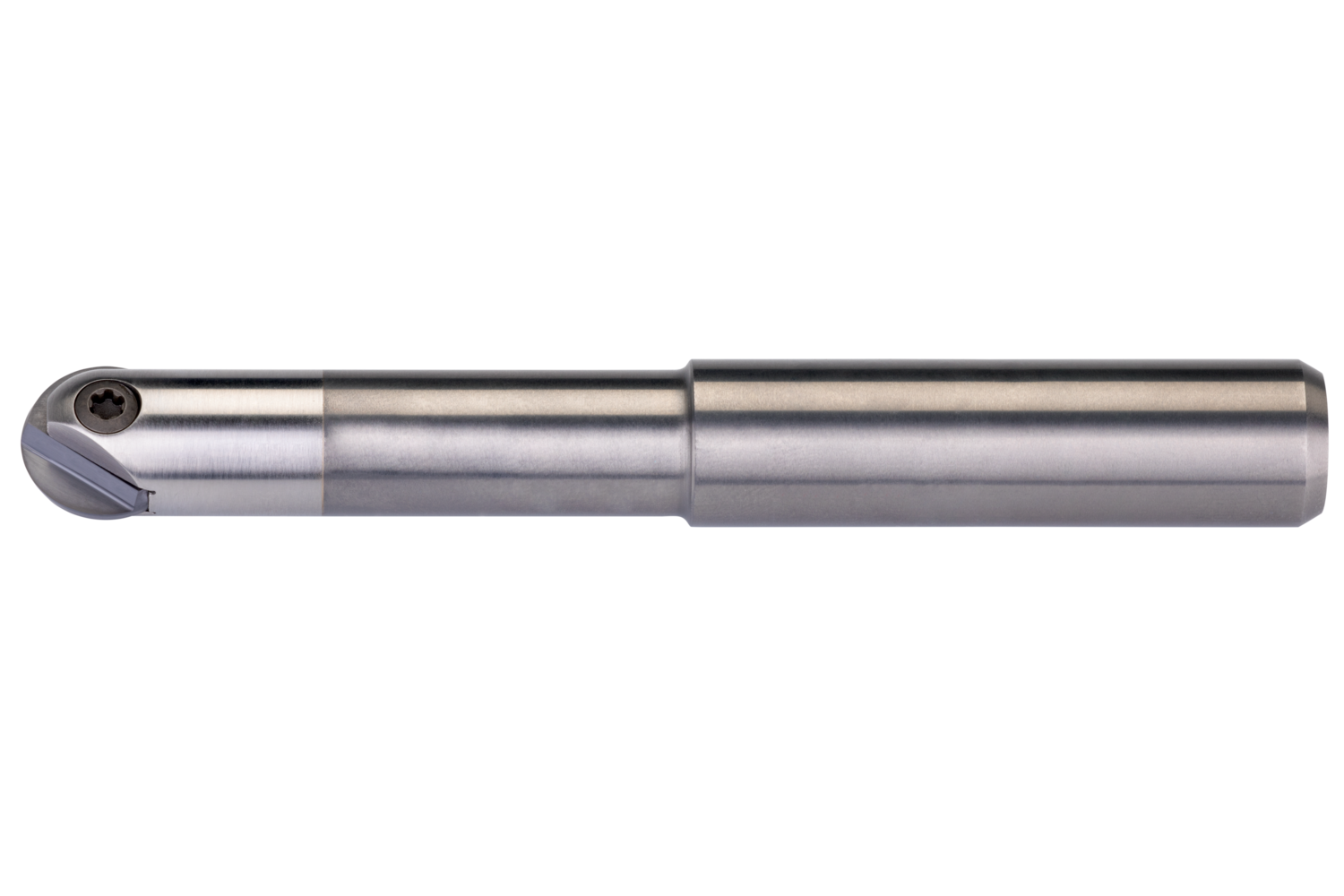

PRAMET PPH-16/02-QC20-166HSCW Milling cutters for D&M

Description: Value
EAN number: 3603603104280
Product number (SAP): 86027181
Ordering code ANSI: PPH-16/02-QC20-166HSCW
Gross weight – grams: 660

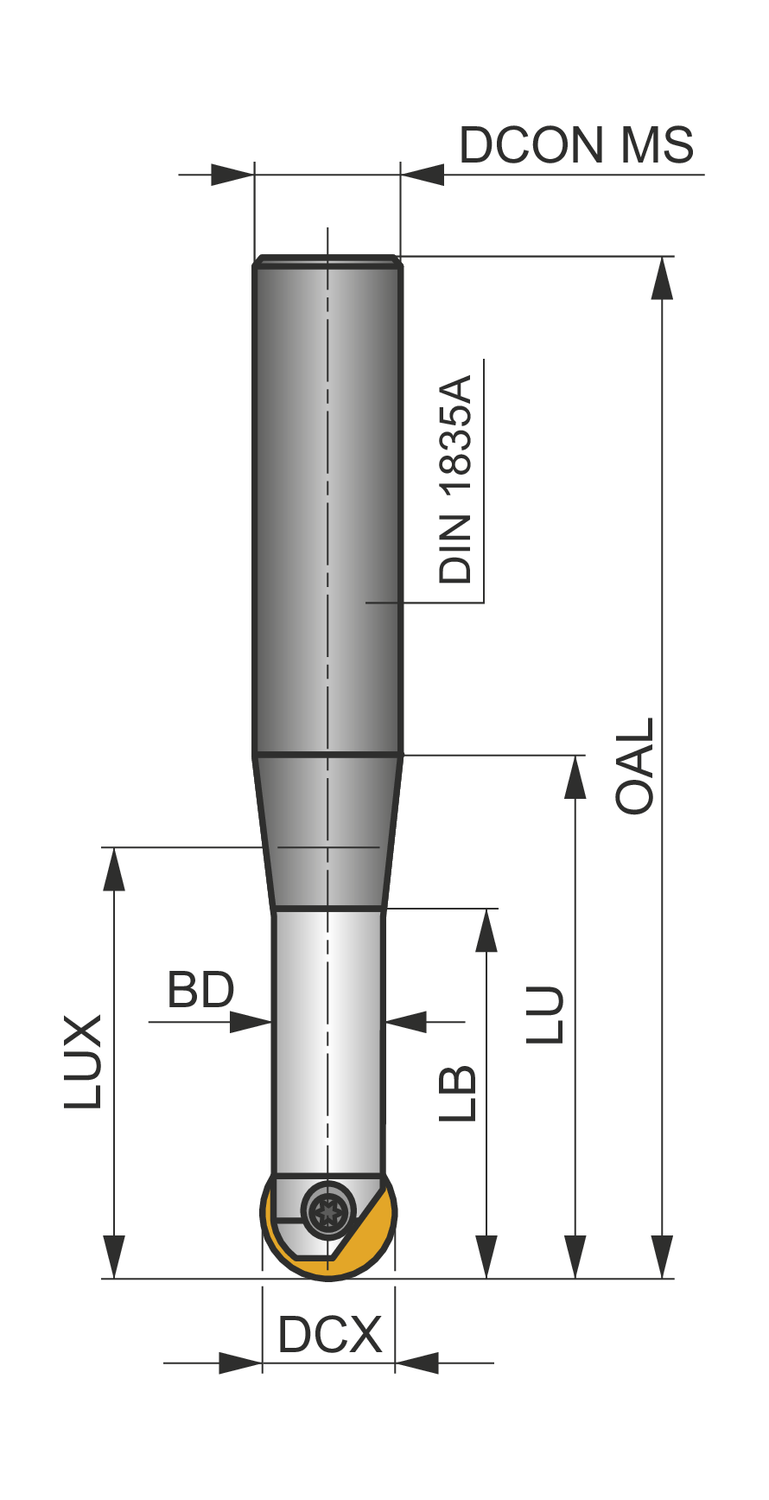

Cutting diameter maximum – millimeter (DCX): 16 mm
Overall length – millimeter (OAL): 166 mm
Connection diameter – millimeter (DCON MS): 20 mm
Body diameter – millimeter (BD): 14 mm
Body length – millimeter (LB): 28.5 mm
Usable Length – millimeter (LU): 100 mm
Usable Length maximum – millimeter (LUX): 87.2 mm
Carbide body of indexable milling cutter: Yes
Rotational speed maximum (RPMX): 25500
Net weight – grams: 660
Insert index count (NOI): 1
ISO: PPH-16/02-QC20-166HSCW
