PRAMET PPH 1600-CL1:2003 Milling inserts for D&M

Product Code: PPH 1600-CL1:2003

$64.58$58.71 Ex. GST

Product Code: PPH 1600-CL1:2003 SKU PPH 1600-CL1:2003 Categories CUTTING TOOLS (HSS & Carbide), G2 - Mill Ins D&M, Milling

PRAMET PPH 1600-CL1:2003 Milling inserts for D&M

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

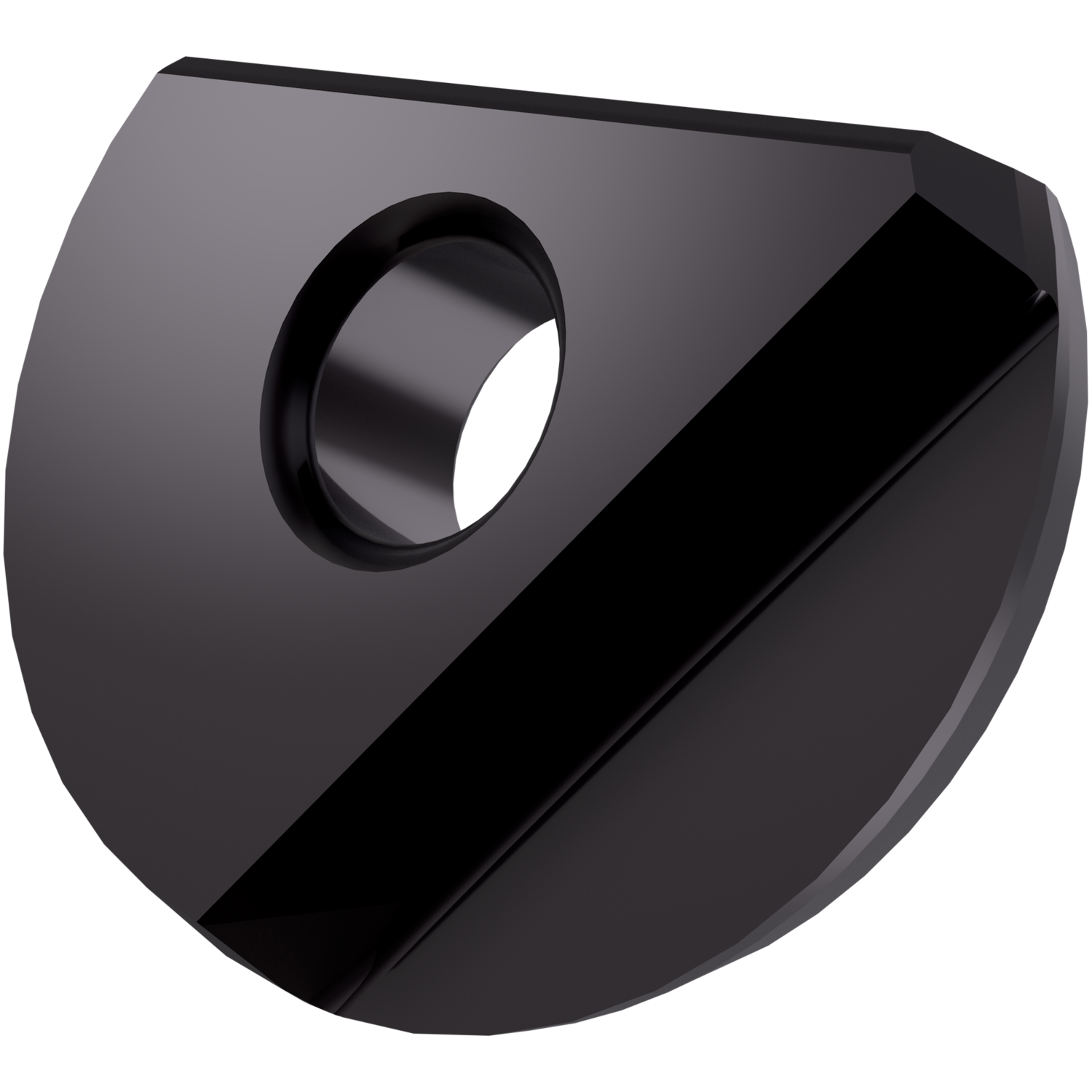

Ball nosed copy milling insert with a diameter of 16mm for a maximum depth of cut of 1.6mm, CL1 geometry and 2003 PVD coated fine grained WC-Co carbide within ISO-grade range K01 -K10 for machining of cast-iron with copy end mills K2-PPH

Additional information

Weight	0.0627 kg
barcode
Additional Information	Description: Value EAN number: 3603603162396 Product number (SAP): 80027665 Ordering code ANSI: PPH 1600-CL1:2003 Gross weight – grams: 6.188 Insert cutting diameter – millimeter (CDI): 16 mm Fixing hole diameter – millimeter (D1): 4 mm Insert length – millimeter (INSL): 12 mm Insert thickness – millimeter (S): 4 mm Grade: 2003 Insert Style: Ball nosed ISO: PPH1600-CL1:2003
