PRAMET PPH-20/02-QC20-104 Milling cutters for D&M

Product Code: PPH-20/02-QC20-104

$597.09$542.81 Ex. GST

Product Code: PPH-20/02-QC20-104 SKU PPH-20/02-QC20-104 Categories , ,

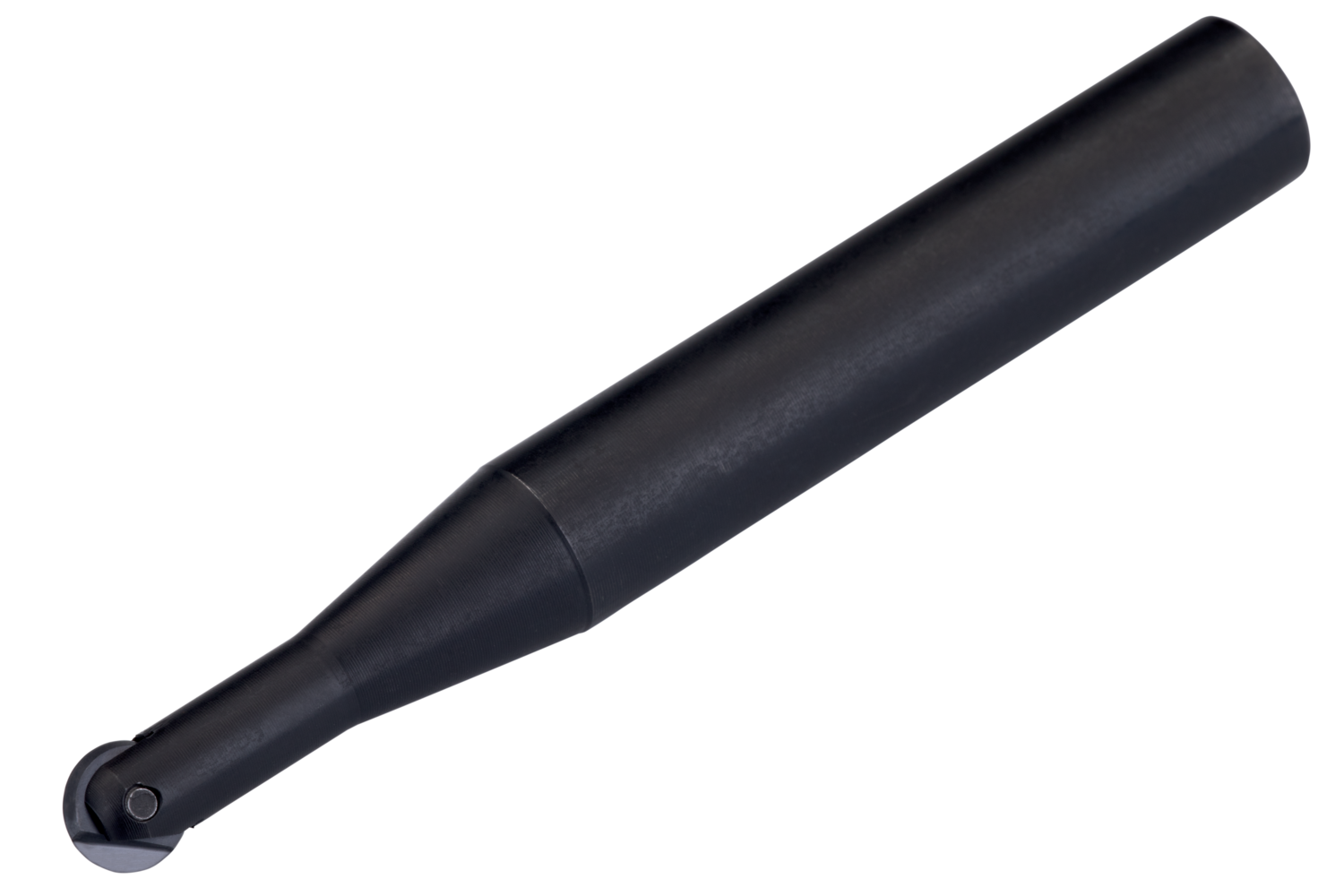

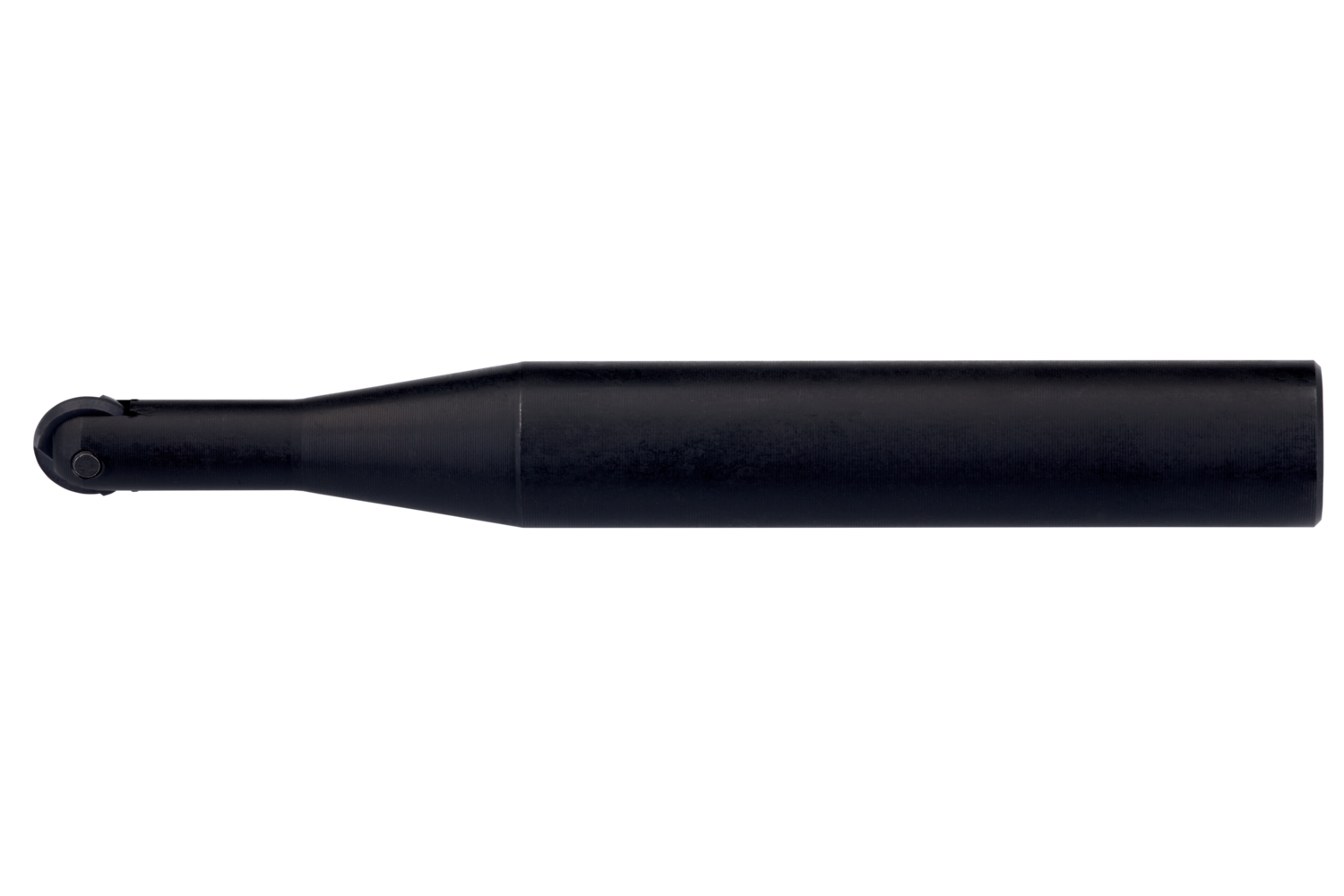

PRAMET PPH-20/02-QC20-104 Milling cutters for D&M
PRAMET PPH-20/02-QC20-104 Milling cutters for D&M - Image 2
PRAMET PPH-20/02-QC20-104 Milling cutters for D&M - Image 3
PRAMET PPH-20/02-QC20-104 Milling cutters for D&M - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

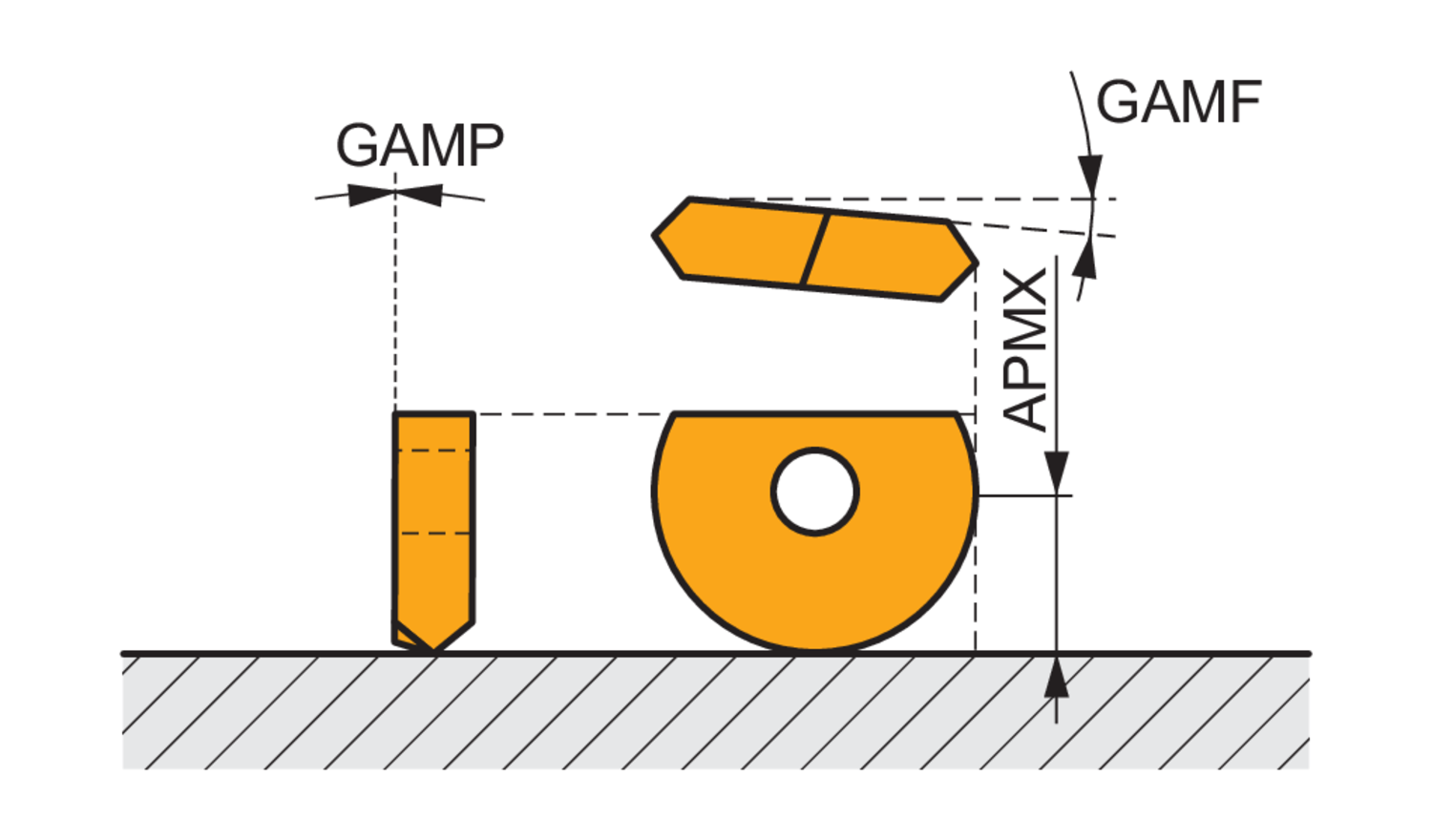

Copy end mill which utilises 1 of PPH 20.., PPHE 20.., PPHT 20.. or PPHF 20.. single-sided insert, cutting diameter 20mm with 20mm parallel shank according to DIN 1835A, 104mm overall length for copy milling with a maximum depth of cut of 0.3-4.0mm

Additional information

Weight 0.5797 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603104303
Product number (SAP): 86026876
Ordering code ANSI: PPH-20/02-QC20-104
Gross weight – grams: 341.2

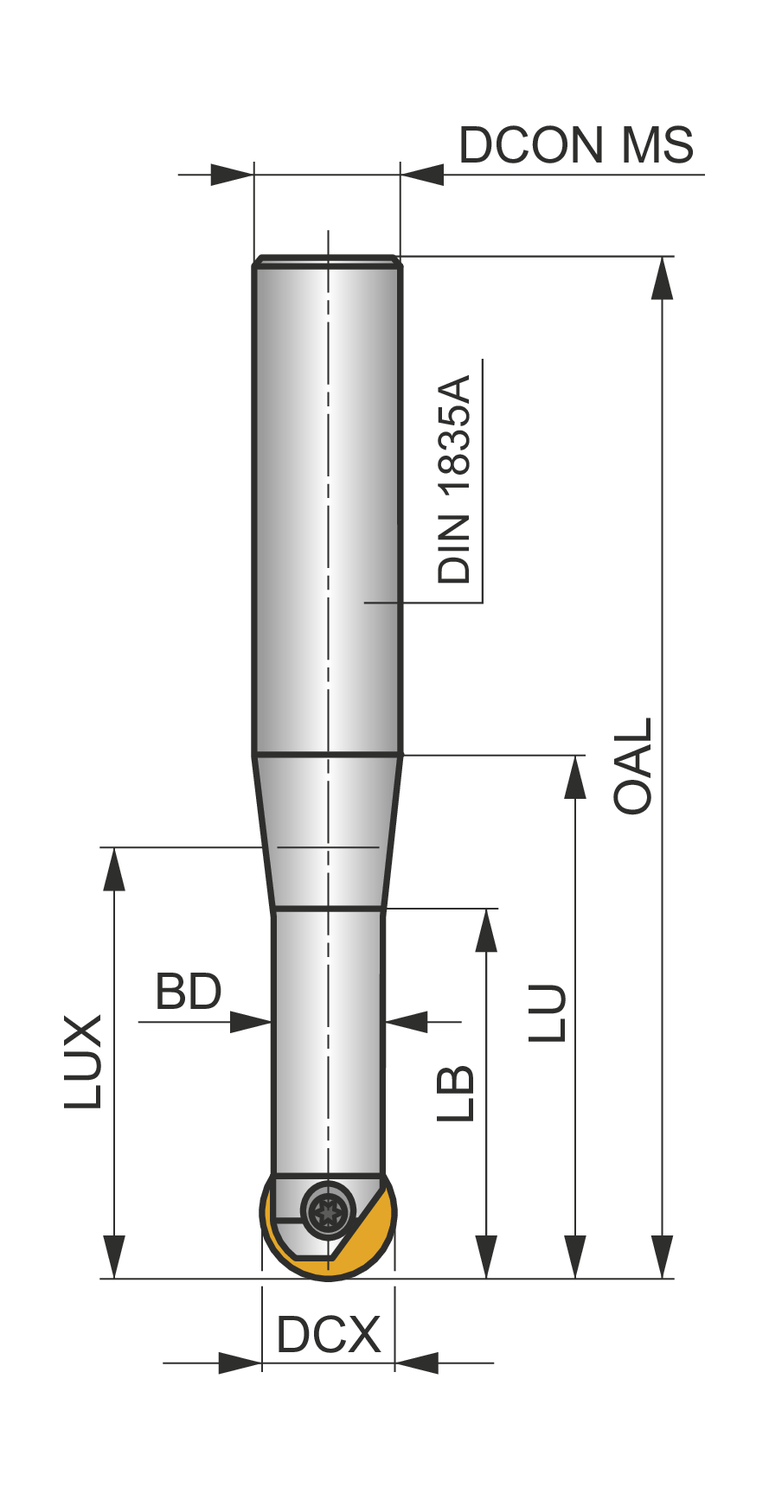

Cutting diameter maximum – millimeter (DCX): 20 mm
Overall length – millimeter (OAL): 104 mm
Connection diameter – millimeter (DCON MS): 20 mm
Body diameter – millimeter (BD): 17 mm
Usable Length – millimeter (LU): 38 mm
Rotational speed maximum (RPMX): 40000
Net weight – grams: 341.2
Insert index count (NOI): 1
ISO: PPH-20/02-QC20-104

Brand

PRAMET
