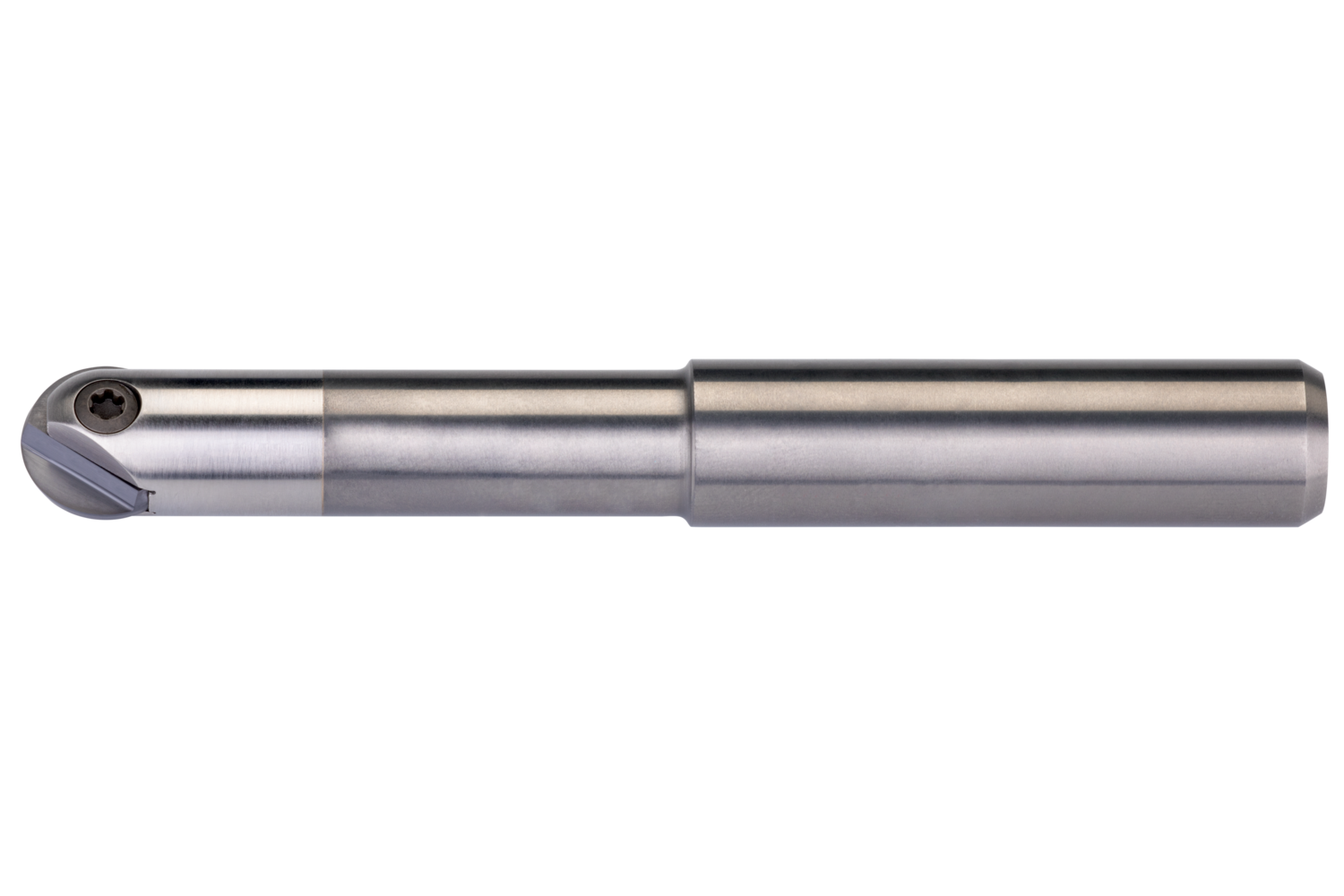

PRAMET PPH-20/02-QC20-104HSCW Milling cutters for D&M

Description: Value
EAN number: 3603603104310
Product number (SAP): 86027182
Ordering code ANSI: PPH-20/02-QC20-104HSCW
Gross weight – grams: 501.6

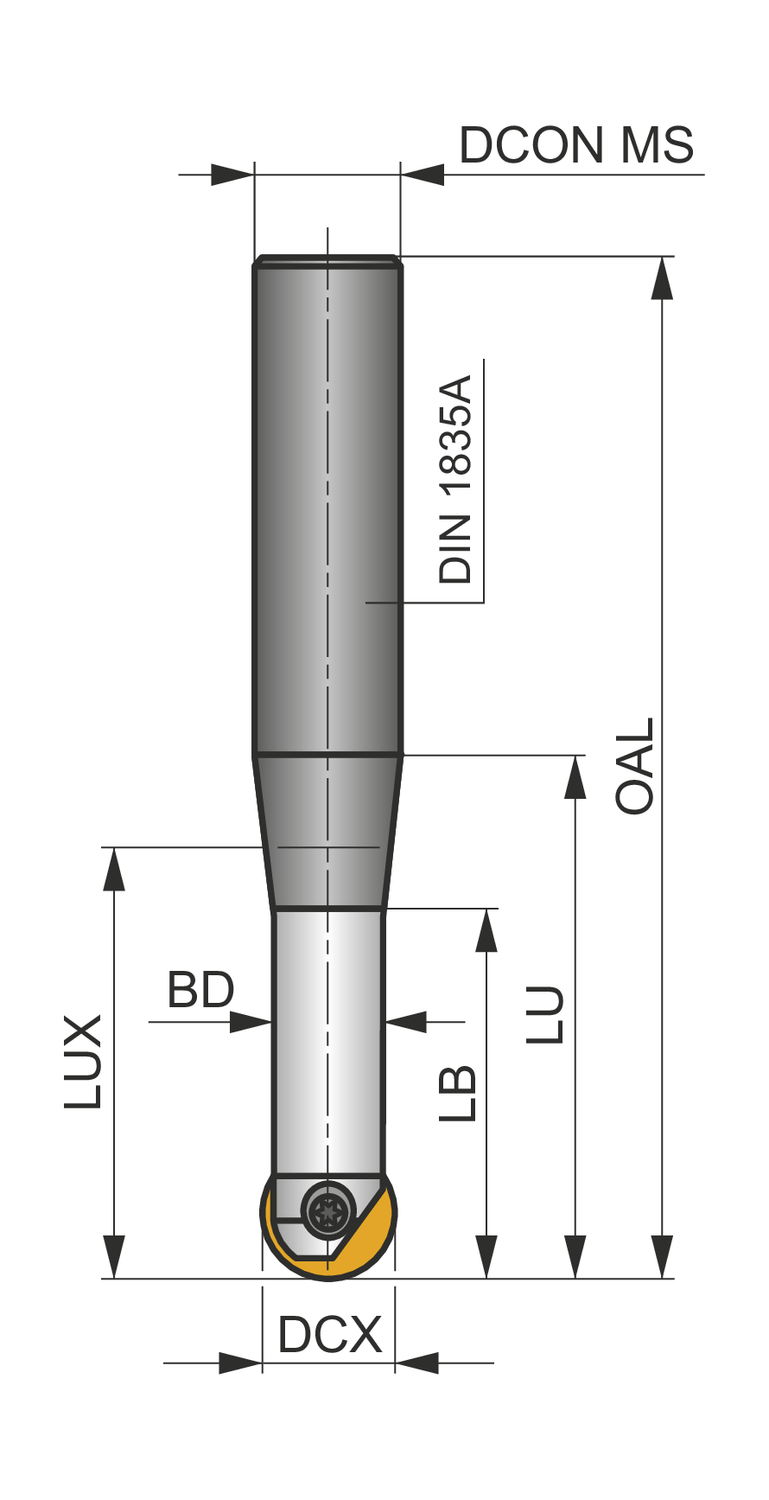

Cutting diameter maximum – millimeter (DCX): 20 mm
Overall length – millimeter (OAL): 104 mm
Connection diameter – millimeter (DCON MS): 20 mm
Body diameter – millimeter (BD): 17 mm
Usable Length – millimeter (LU): 38 mm
Carbide body of indexable milling cutter: Yes
Rotational speed maximum (RPMX): 40000
Net weight – grams: 498
Insert index count (NOI): 1
ISO: PPH-20/02-QC20-104HSCW
