PRAMET PPH-20/02-QC20-141HSCW Milling cutters for D&M

Product Code: PPH-20/02-QC20-141HSCW

$1,495.56$1,359.60 Ex. GST

Product Code: PPH-20/02-QC20-141HSCW SKU PPH-20/02-QC20-141HSCW Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

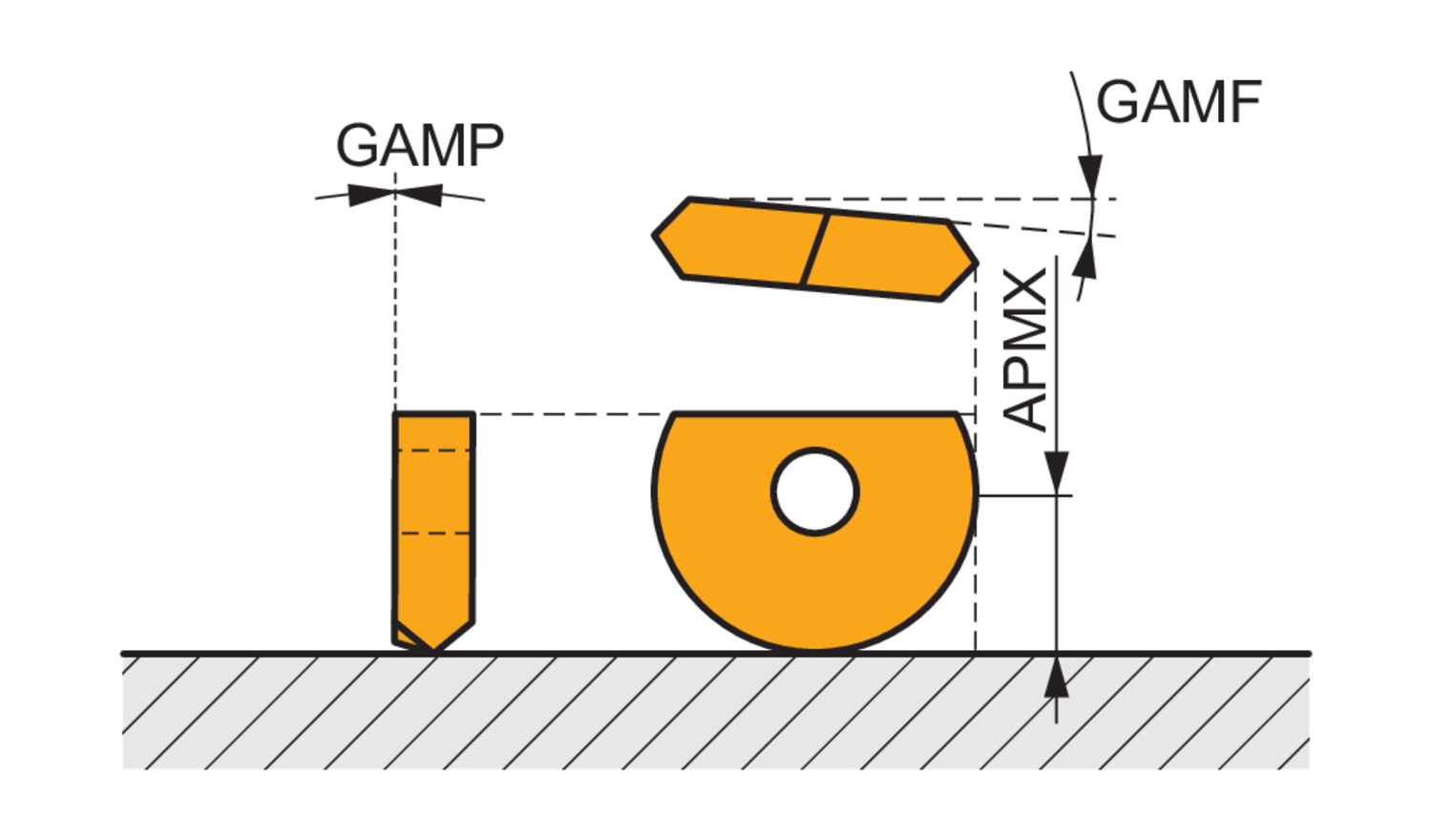

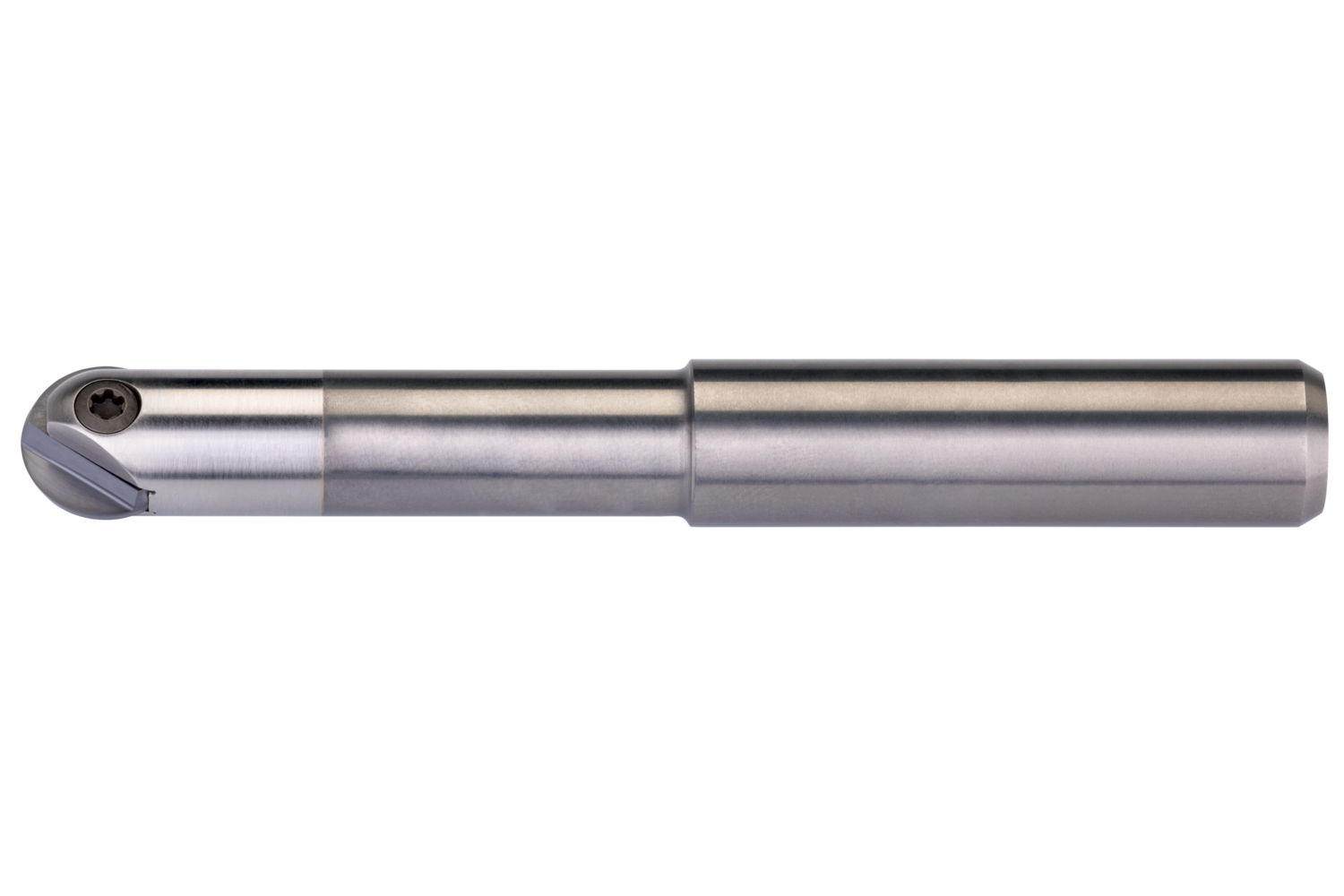

Copy end mill which utilises 1 of PPH 20, PPHE 20, PPHT 20 or PPHF 20 single-sided insert, cutting diameter 20mm with 20mm carbide parallel shank according to DIN 1835A, 141mm overall length for copy milling with a maximum depth of cut of 0.3-4.0mm

Additional information

Weight 1.452 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603104334
Product number (SAP): 86027183
Ordering code ANSI: PPH-20/02-QC20-141HSCW
Gross weight – grams: 622

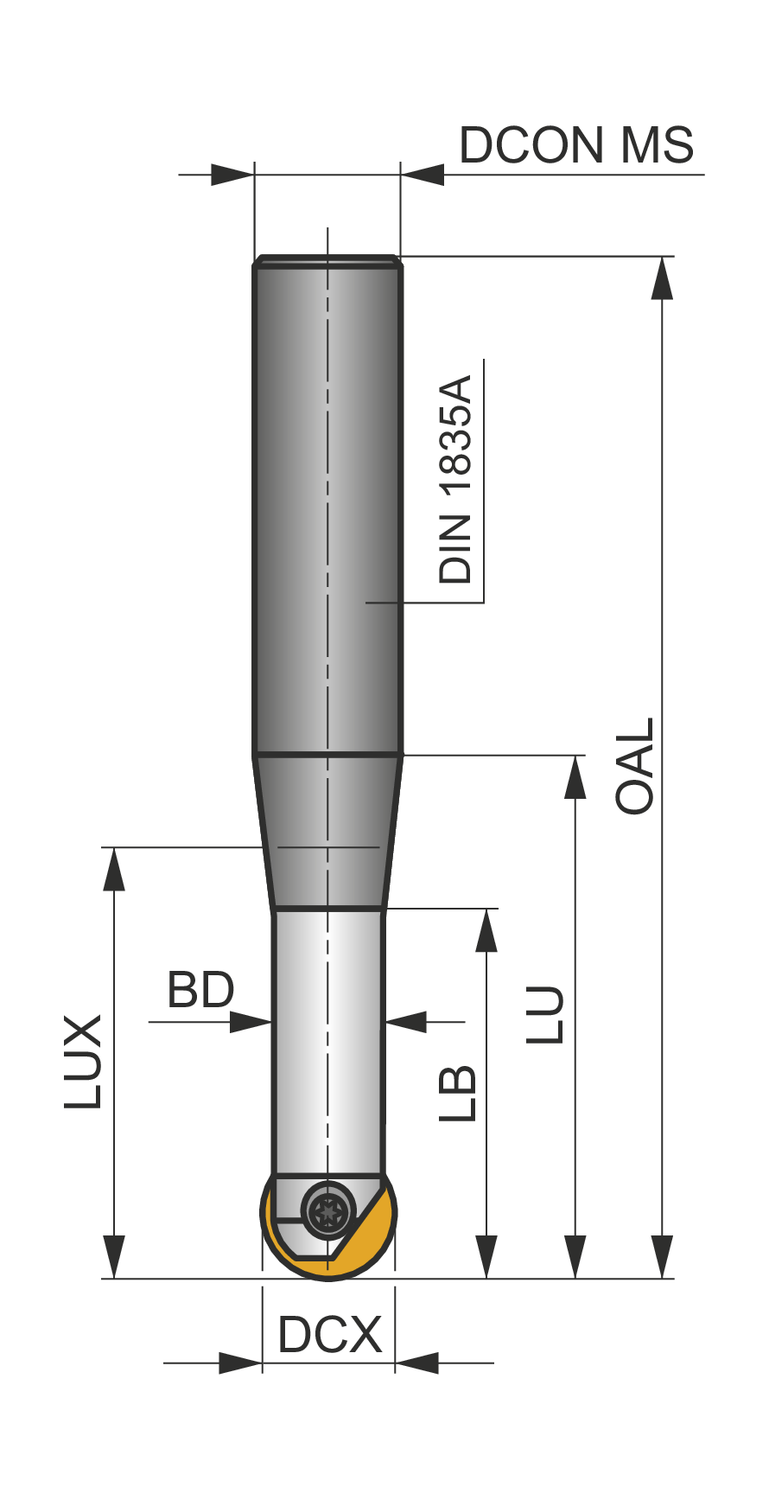

Cutting diameter maximum – millimeter (DCX): 20 mm
Overall length – millimeter (OAL): 141 mm
Connection diameter – millimeter (DCON MS): 20 mm
Body diameter – millimeter (BD): 17 mm
Usable Length – millimeter (LU): 75 mm
Carbide body of indexable milling cutter: Yes
Rotational speed maximum (RPMX): 40000
Net weight – grams: 622
Insert index count (NOI): 1
ISO: PPH-20/02-QC20-141HSCW

Brand

PRAMET
