PRAMET PPH-20/02-QC25-191 Milling cutters for D&M

Description

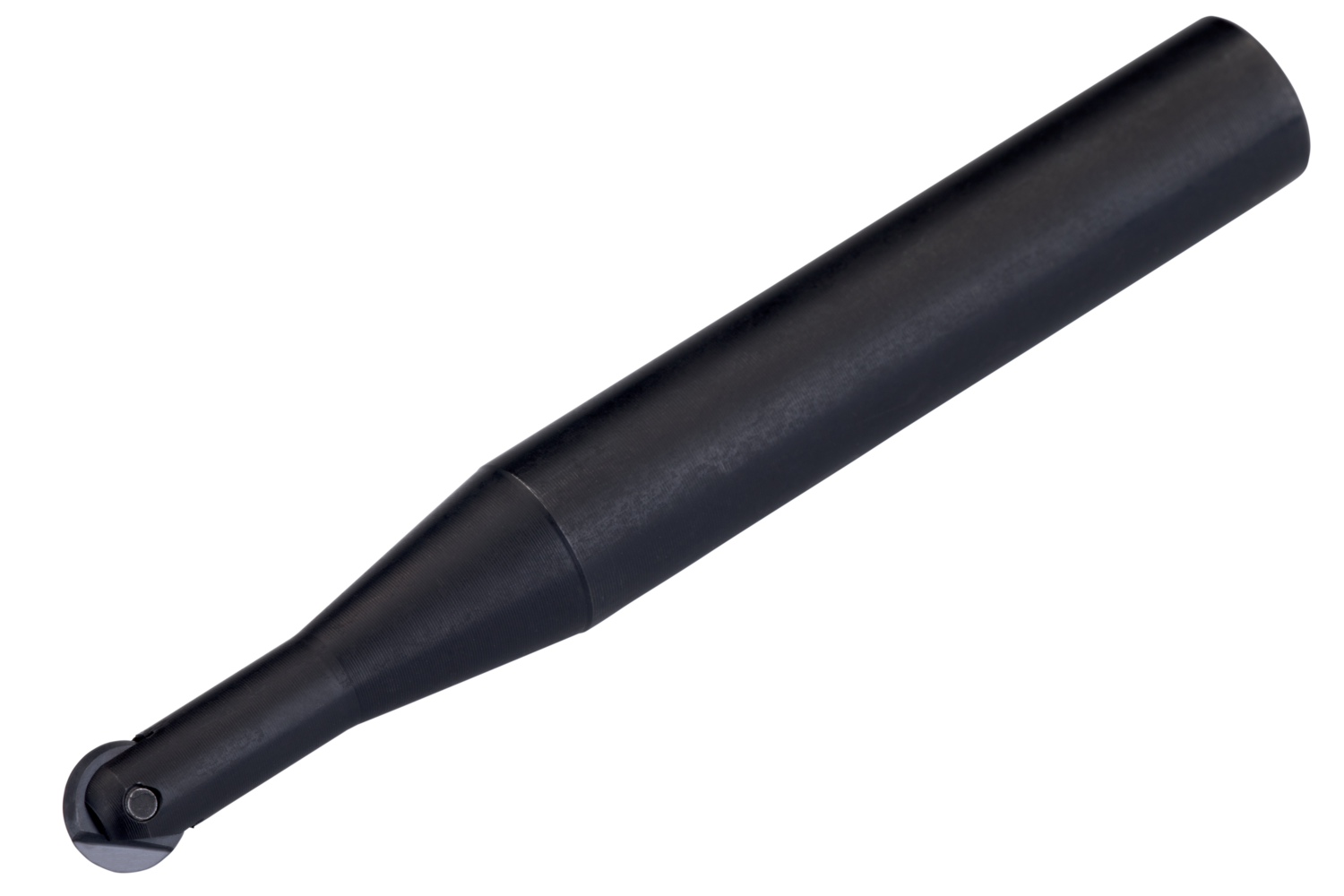

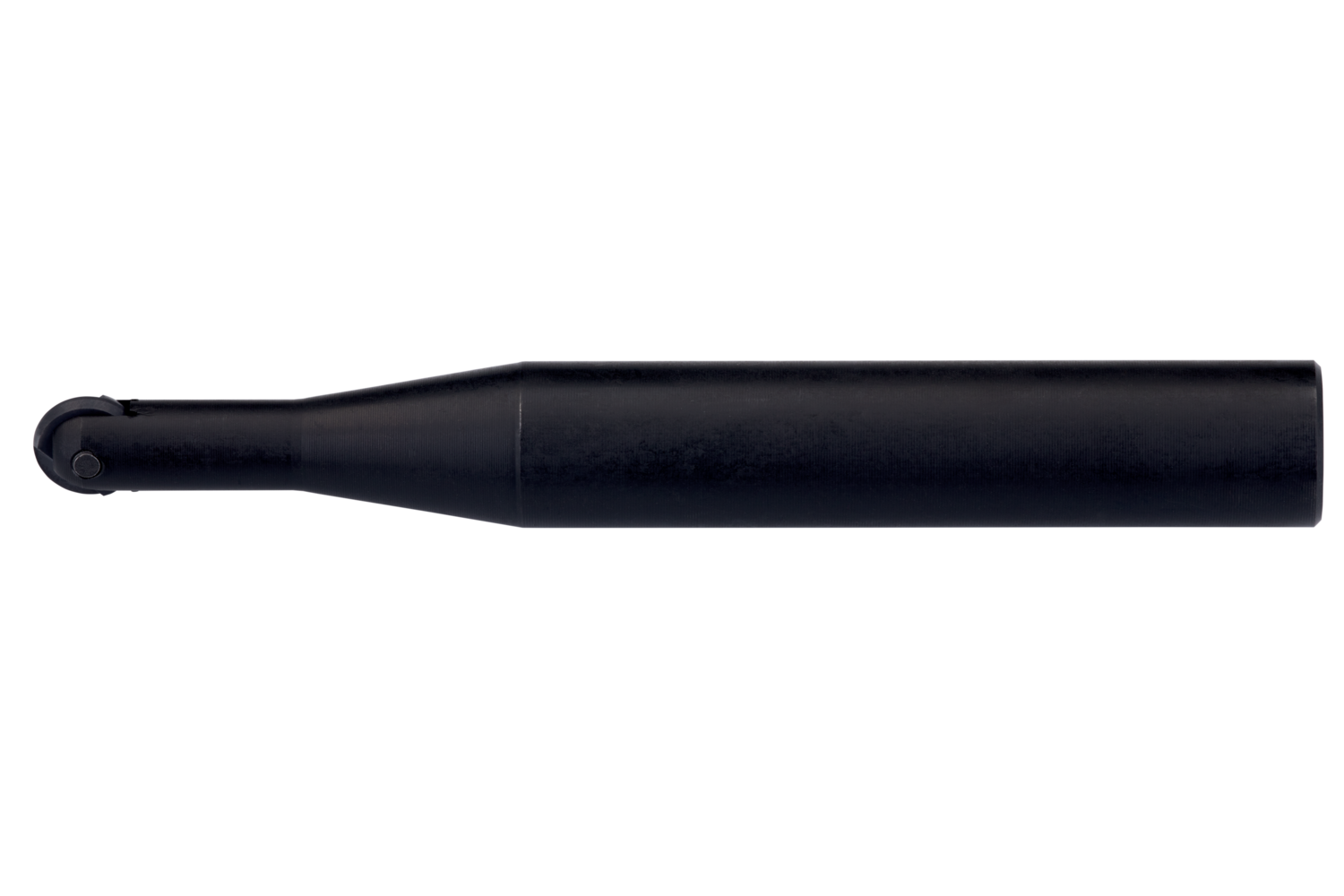

Copy end mill which utilises 1 of PPH 20.., PPHE 20.., PPHT 20.. or PPHF 20.. single-sided insert, cutting diameter 20mm with 25mm parallel shank according to DIN 1835A, 35mm functional and 191mm overall length for copy milling with a maximum depth of cut of 0.3-4.0mm

Additional information

Weight	0.5797 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603603104358 Product number (SAP): 86026879 Ordering code ANSI: PPH-20/02-QC25-191 Gross weight – grams: 643 Cutting diameter maximum – millimeter (DCX): 20 mm Overall length – millimeter (OAL): 191 mm Connection diameter – millimeter (DCON MS): 25 mm Body diameter – millimeter (BD): 17 mm Body length – millimeter (LB): 35 mm Usable Length – millimeter (LU): 115 mm Usable Length maximum – millimeter (LUX): 82.2 mm Rotational speed maximum (RPMX): 18400 Net weight – grams: 643 Insert index count (NOI): 1 ISO: PPH-20/02-QC25-191
