PRAMET PPH 2000-CL1:2003 Milling inserts for D&M

Product Code: PPH 2000-CL1:2003

$74.78$67.98 Ex. GST

Product Code: PPH 2000-CL1:2003 SKU PPH 2000-CL1:2003 Categories CUTTING TOOLS (HSS & Carbide), G2 - Mill Ins D&M, Milling

PRAMET PPH 2000-CL1:2003 Milling inserts for D&M

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

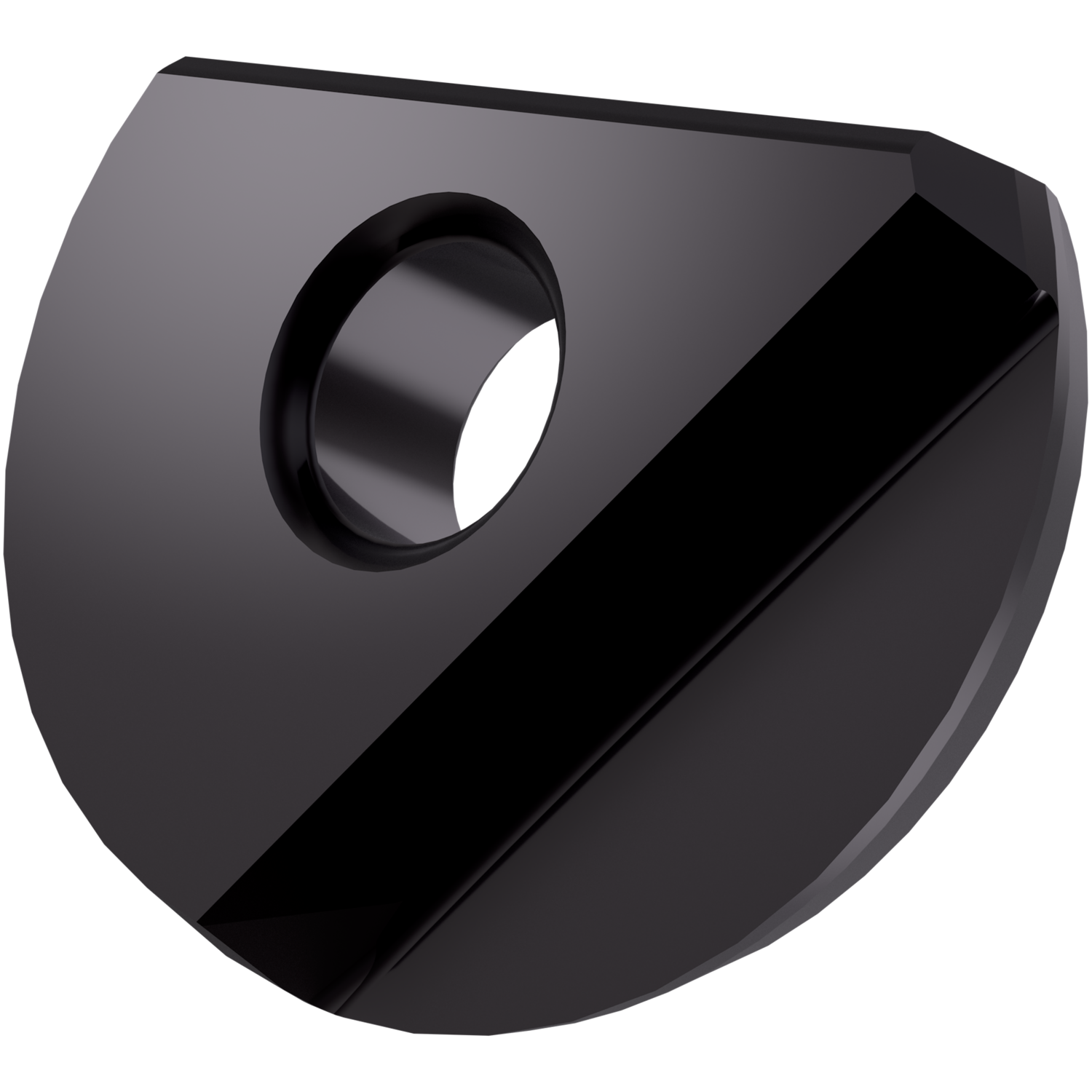

Ball nosed copy milling insert with a diameter of 20mm for a maximum depth of cut of 2.0mm, CL1 geometry and 2003 PVD coated fine grained WC-Co carbide within ISO-grade range K01 -K10 for machining of cast-iron with copy end mills K2-PPH

Additional information

Weight	0.0726 kg
barcode
Additional Information	Description: Value EAN number: 3603603162402 Product number (SAP): 80027666 Ordering code ANSI: PPH 2000-CL1:2003 Gross weight – grams: 12.09 Insert cutting diameter – millimeter (CDI): 20 mm Fixing hole diameter – millimeter (D1): 5 mm Insert length – millimeter (INSL): 15 mm Insert thickness – millimeter (S): 5 mm Grade: 2003 Insert Style: Ball nosed ISO: PPH2000-CL1:2003
