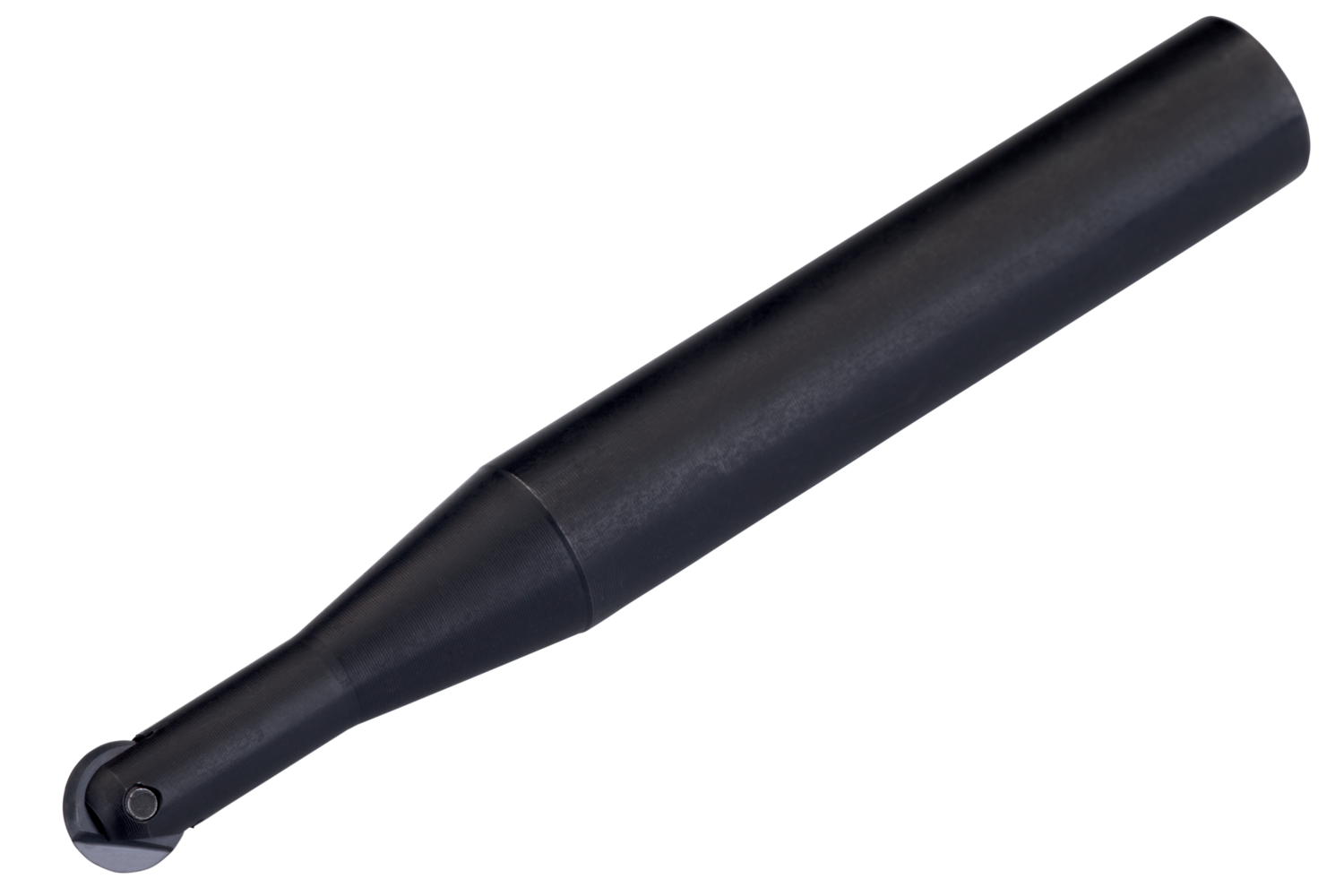

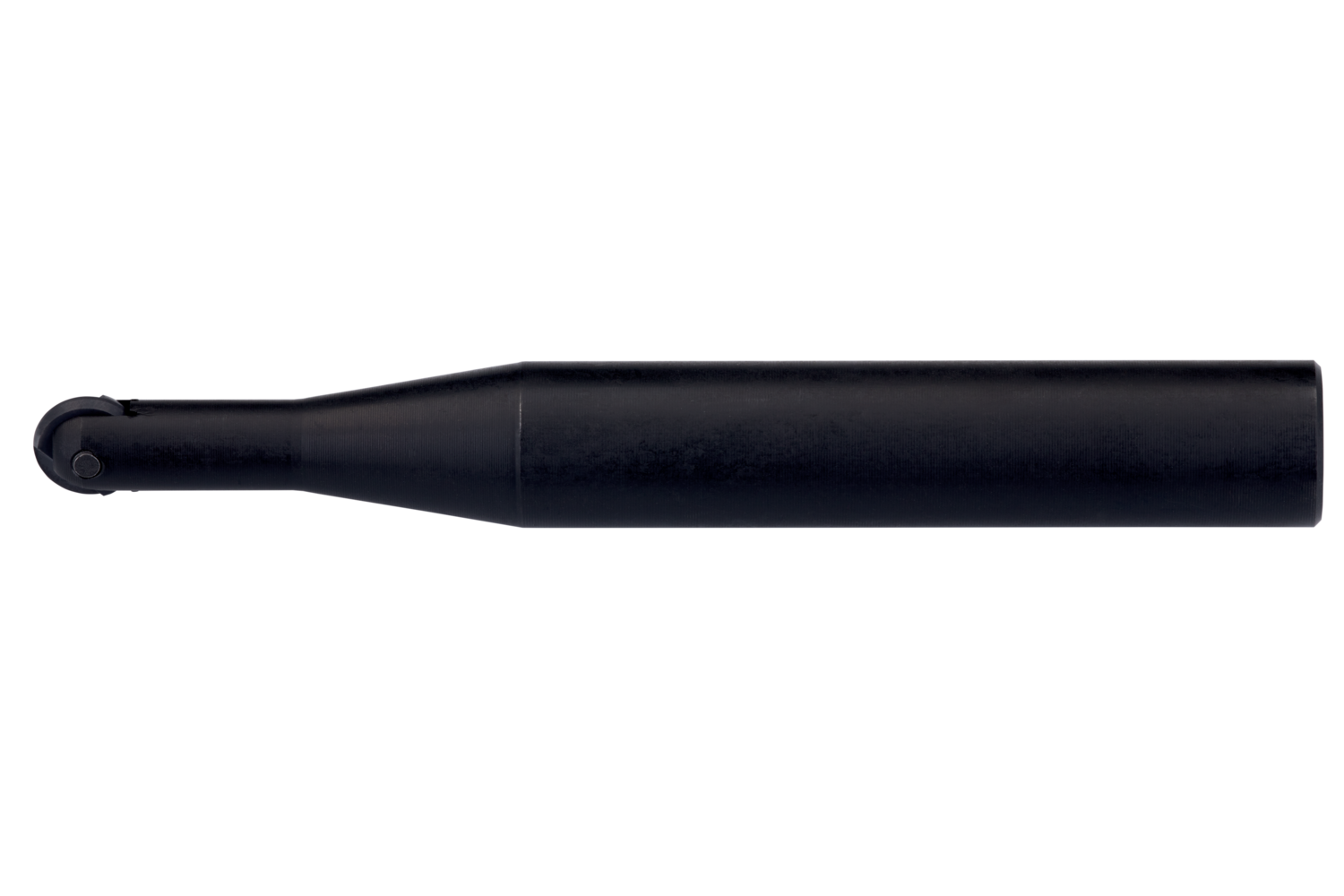

PRAMET PPH-25/02-QC32-215 Milling cutters for D&M

Description: Value
EAN number: 3603603104396
Product number (SAP): 86026882
Ordering code ANSI: PPH-25/02-QC32-215
Gross weight – grams: 1073.7

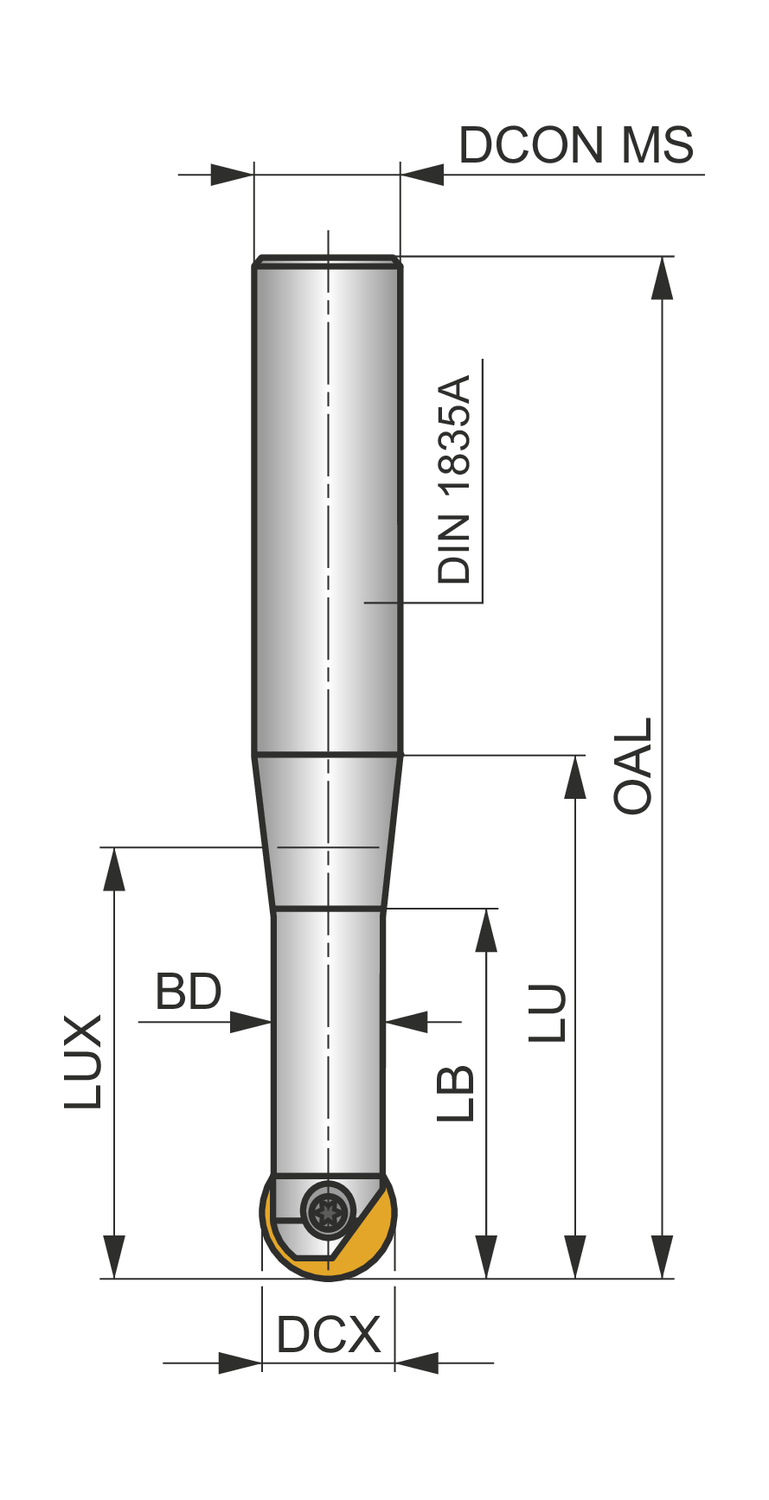

Cutting diameter maximum – millimeter (DCX): 25 mm
Overall length – millimeter (OAL): 215 mm
Connection diameter – millimeter (DCON MS): 32 mm
Body diameter – millimeter (BD): 21 mm
Body length – millimeter (LB): 42.5 mm
Usable Length – millimeter (LU): 135 mm
Usable Length maximum – millimeter (LUX): 97 mm
Rotational speed maximum (RPMX): 16500
Net weight – grams: 1073.7
Insert index count (NOI): 1
ISO: PPH-25/02-QC32-215
