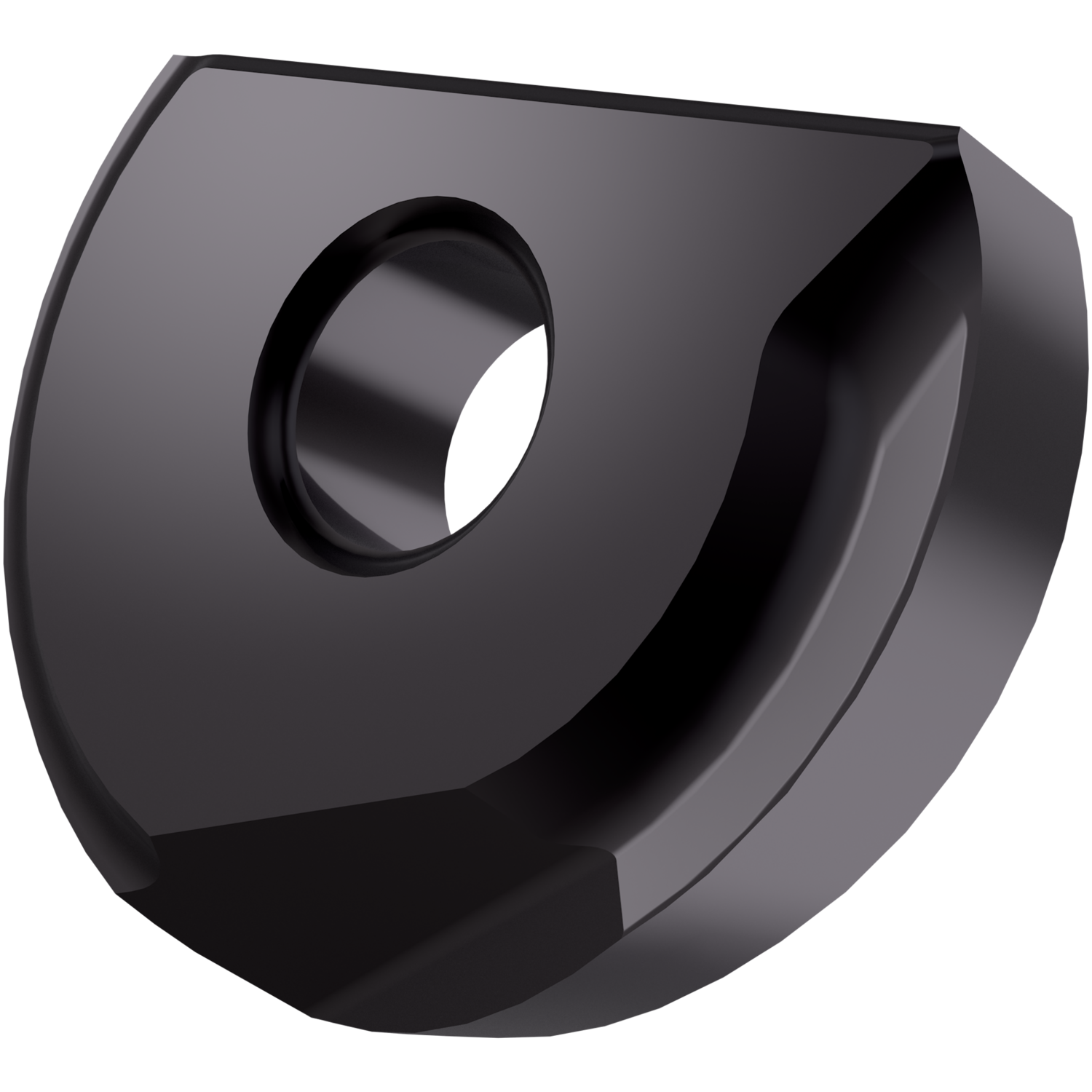

PRAMET PPHE 2000-SM1:8215 Milling inserts for D&M

Product Code: PPHE 2000-SM1:8215

$51.22$46.56 Ex. GST

Product Code: PPHE 2000-SM1:8215 SKU PPHE 2000-SM1:8215 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Ball nosed copy milling insert with a diameter of 20mm for a maximum depth of cut of 2.0mm, SM1 geometry and 8215 PVD coated fine grained WC-Co carbide within ISO-grade ranges P10 -P20/K10 -K25 and H10 -H15 for machining of steel, cast-iron and hardened material with copy end mills K2-PPH

Additional information

Weight 0.0497 kg
barcode
Additional Information

Description: Value
EAN number: 3603603162556
Product number (SAP): 80027681
Ordering code ANSI: PPHE 2000-SM1:8215
Gross weight – grams: 14.713
Insert cutting diameter – millimeter (CDI): 20 mm
Fixing hole diameter – millimeter (D1): 5 mm
Insert length – millimeter (INSL): 15 mm
Insert thickness – millimeter (S): 5 mm
Grade: 8215
Insert Style: Ball nosed
ISO: PPHE2000-SM1:8215

Brand

PRAMET
