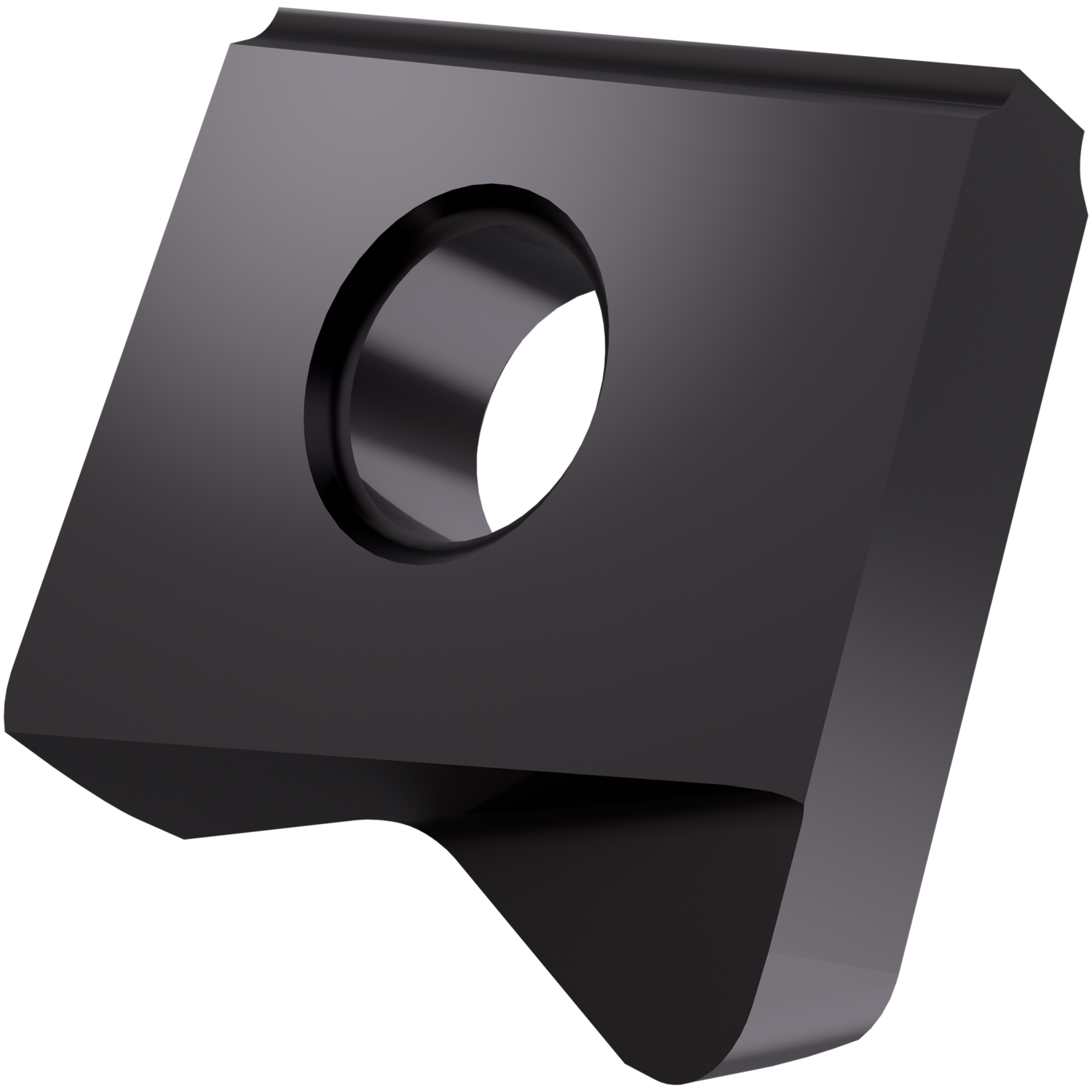

PRAMET PPHT 100008-A2:2003 Milling inserts for D&M

Product Code: PPHT 100008-A2:2003

$70.25$63.86 Ex. GST

Product Code: PPHT 100008-A2:2003 SKU PPHT 100008-A2:2003 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Toroidal copy milling insert with a diameter of 10mm and 0.8mm corner radii for a maximum depth of cut of 0.8mm, A2 geometry and 2003 PVD coated fine grained WC-Co carbide within ISO-grade range K01 -K10 for machining of cast-iron with copy end mills K2-PPH

Additional information

Weight 0.0682 kg
barcode
Additional Information

Description: Value
EAN number: 3603603162679
Product number (SAP): 80027693
Ordering code ANSI: PPHT 100008-A2:2003
Gross weight – grams: 2.233

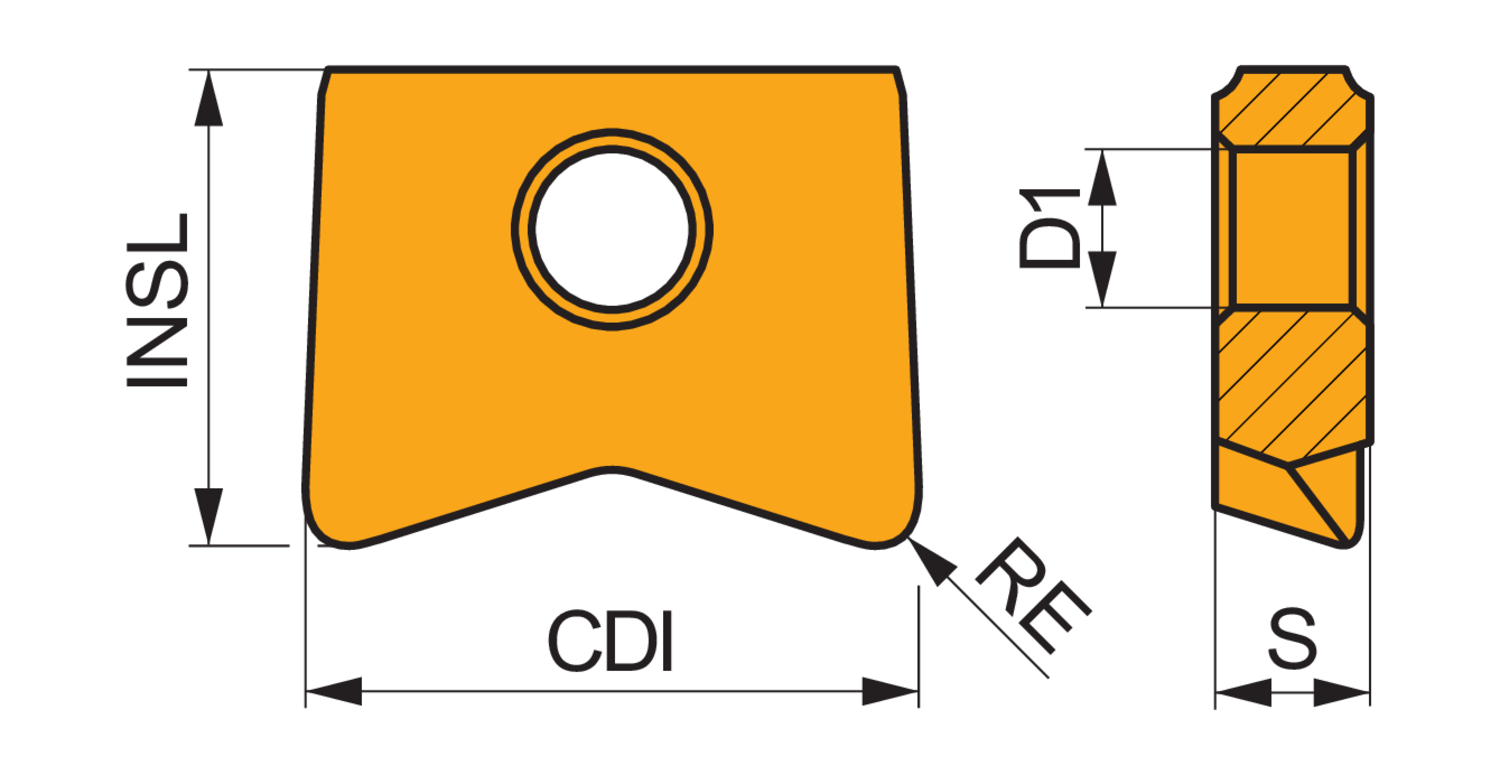

Insert cutting diameter – millimeter (CDI): 10 mm
Fixing hole diameter – millimeter (D1): 3 mm
Insert length – millimeter (INSL): 8.5 mm
Insert thickness – millimeter (S): 2.6 mm
Grade: 2003
Corner radius – millimeter (RE): 0.8 mm
Insert Style: Toroidal
Insert Type: T
ISO: PPHT100008-A2:2003

Brand

PRAMET
