PRAMET PRDCN 5050 V 32 Turning holders external

Description: Value
EAN number: 3603604052092
Product number (SAP): 86041106
Ordering code ANSI: PRDCN 5050 V 32
Gross weight – grams: 7296.4

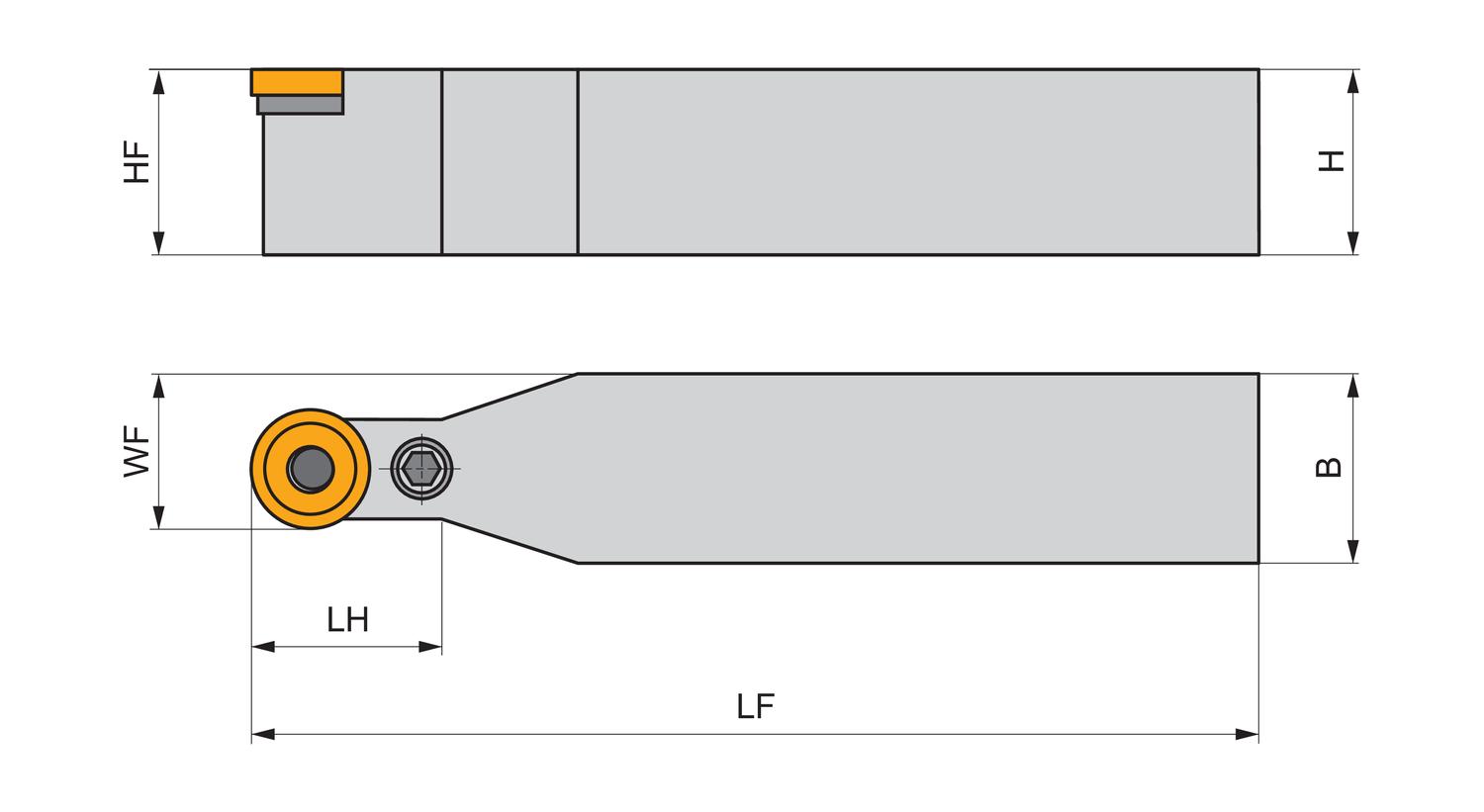

Shank height – millimeter (H): 50 mm
Shank width – millimeter (B): 50 mm
Functional height – millimeter (HF): 50 mm
Functional width – millimeter (WF): 41 mm
Functional length – millimeter (LF): 400 mm
Head length – millimeter (LH): 52 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 7296.4
Insert size: 32
ISO: PRDCN5050V32
