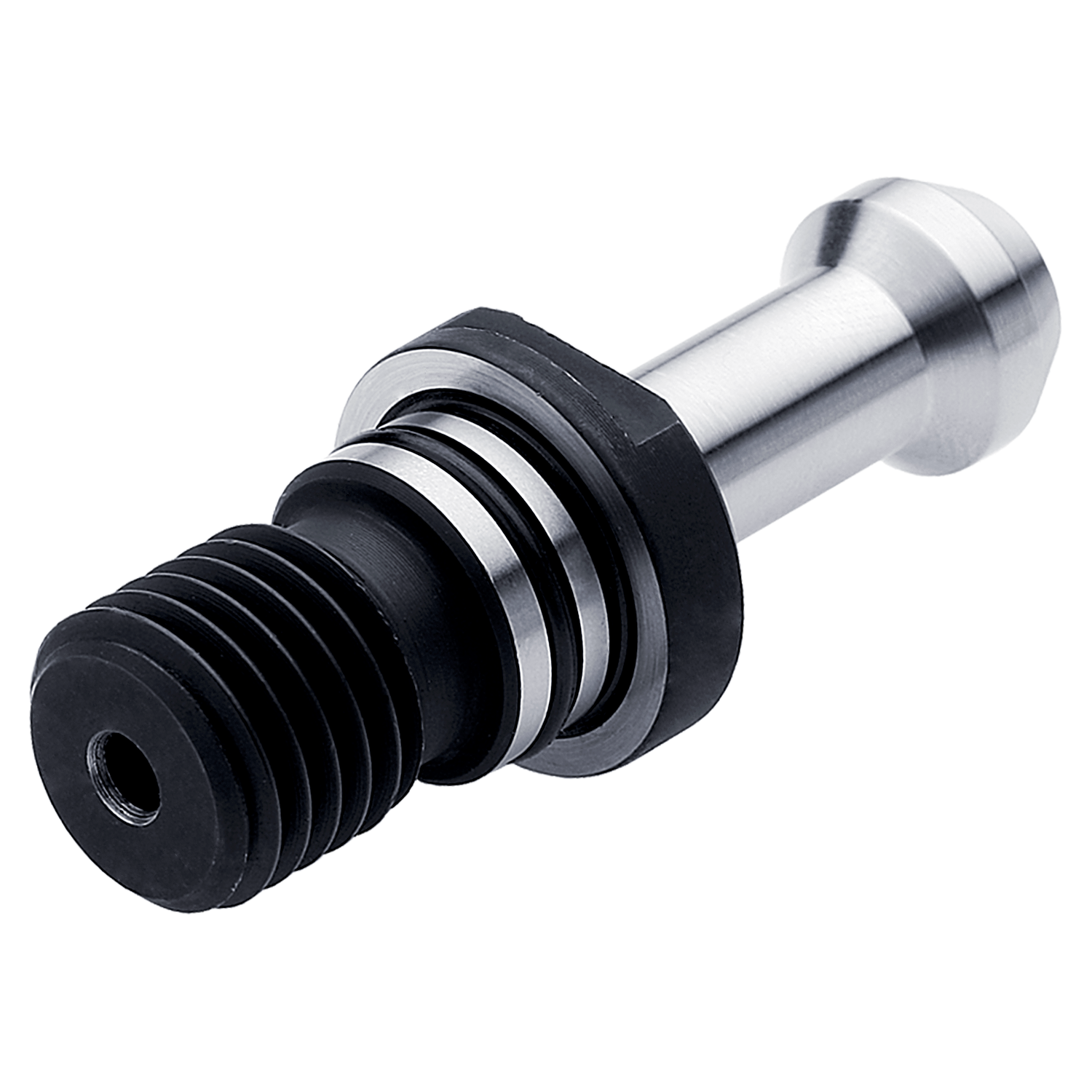

PRAMET PS.BT.30.45.C.S.FANUC Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604027205
Product number (SAP): 86041890
ISO: PS.BT.30.45.C.S.FANUC
Ordering code ANSI: PS.BT.30.45.C.S.FANUC
Net weight – grams: 26
Gross weight – grams: 26.5
Body diameter – millimeter (BD): 11 mm
Body diameter 2 – millimeters (BD2): 8 mm
Body half taper angle (BHTA): 45
Clamping length maximum – millimeters (LSCX): 18.6 mm
Connection retention knob threat size (CRKS): M12
Hexagonal clamping nut size – millimeters (SW): 13 mm
Overall length – millimeter (OAL): 43.6 mm
Protruding length – millimeter (LPR): 24 mm
