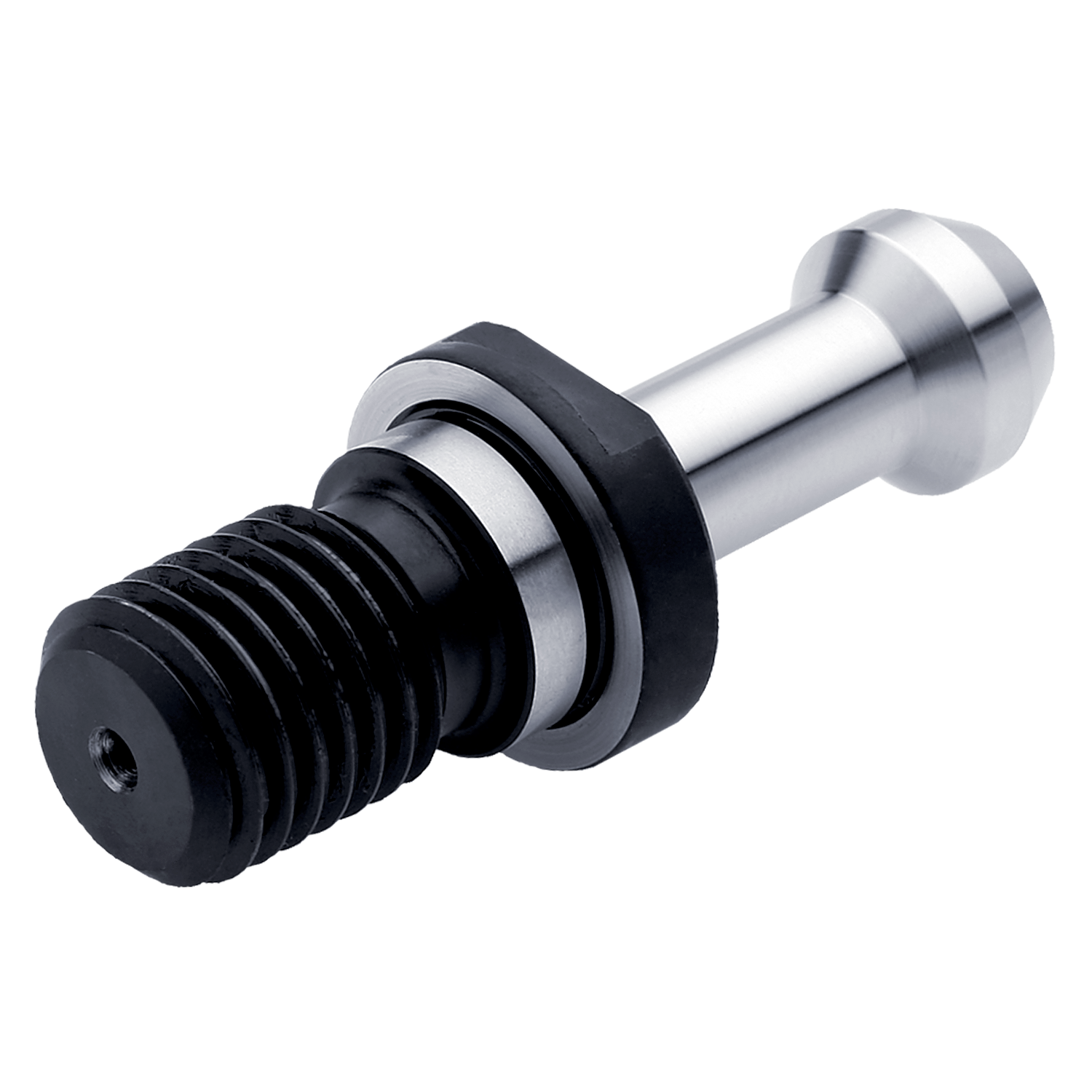

PRAMET PS.BT.30.60.C.FANUC Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604027229
Product number (SAP): 86041892
ISO: PS.BT.30.60.C.FANUC
Ordering code ANSI: PS.BT.30.60.C.FANUC
Net weight – grams: 70
Gross weight – grams: 70
Body diameter – millimeter (BD): 11 mm
Body diameter 2 – millimeters (BD2): 7.5 mm
Body half taper angle (BHTA): 60
Clamping length maximum – millimeters (LSCX): 18 mm
Connection retention knob threat size (CRKS): M12
Hexagonal clamping nut size – millimeters (SW): 13 mm
Overall length – millimeter (OAL): 43 mm
Protruding length – millimeter (LPR): 23 mm
