PRAMET PSSNL 2020 K 12 Turning holders external

Product Code: PSSNL 2020 K 12

$162.02$147.29 Ex. GST

Product Code: PSSNL 2020 K 12 SKU PSSNL 2020 K 12 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

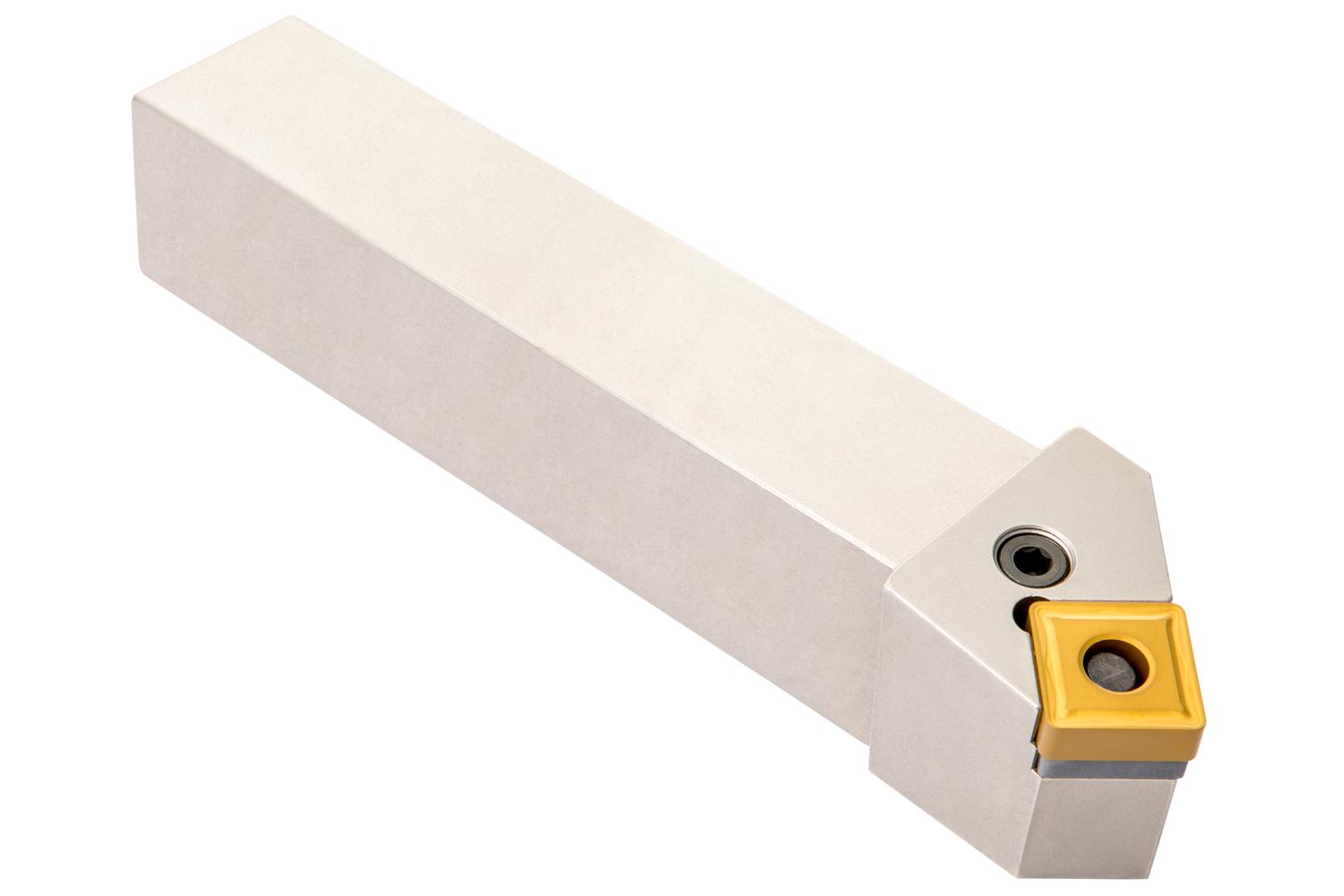

Lever lock turning tool for holding a square negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation SN.. 1204.. ), left hand 45° side cutting with off-set shank, 20mm tool height x 20mm width x 125mm long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder

Additional information

Weight 0.1573 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602925213
Product number (SAP): 84001800
Ordering code ANSI: PSSNL 2020 K 12
Gross weight – grams: 410
Shank height – millimeter (H): 20 mm
Shank width – millimeter (B): 20 mm
Functional height – millimeter (HF): 20 mm
Functional width – millimeter (WF): 25 mm
Functional length – millimeter (LF): 125 mm
Overall length – millimeter (OAL): 133.3 mm
Head length – millimeter (LH): 28 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): -8
Net weight – grams: 410
Insert size: 12
ISO: PSSNL2020K12

Brand

PRAMET
